Eaton

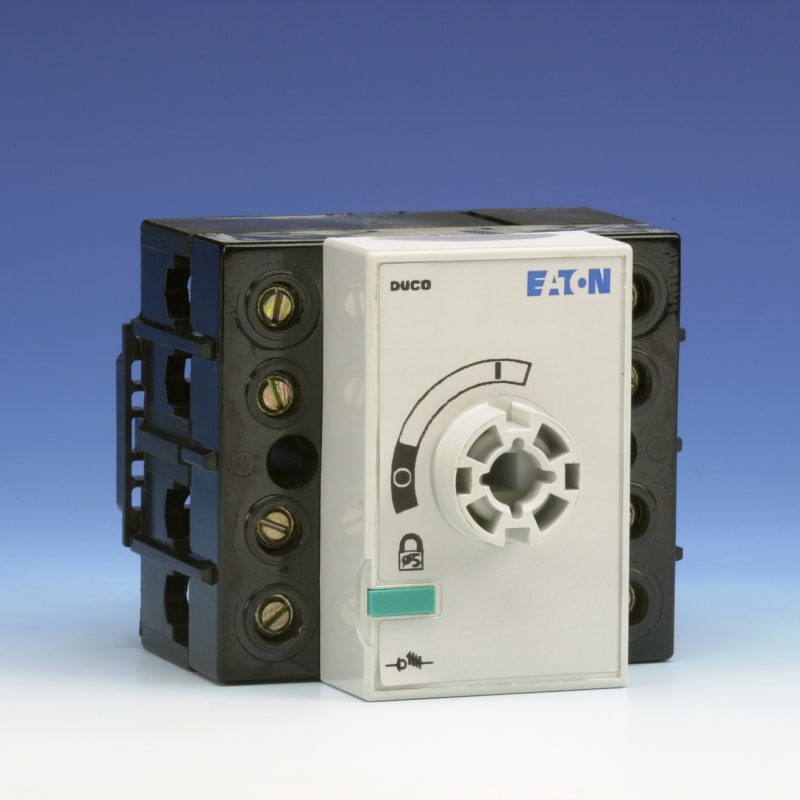

Switch-disconnector,DCM-63/4-SK+HC
Part numberDCM-63/4-SK+HCEAN / GTIN8711426313996HS code8536.50
Switchgear & Protection
Disconnect Switches
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton DCM-63/4-SK+HC Switch-Disconnector, DCM, 63 A, 4 pole, stop function optional,without rotary handle and drive shaft.
Technical Specifications
- Manufacturer part number (MPN)
- DCM-63/4-SK+HC
- EAN / GTIN
- 8711426313996
- Sales unit
- pcs
- Eaton catalogue number
- 1314015
- Depth
- 146 mm
- Height
- 74 mm
- Width
- 84 mm
- Weight
- 0.46 kg
- Certifications
- IEC/EN 60947; RoHS; IEC/EN 60204; IEC/EN 60947-3; KEMA; VDE 0660; CE; Lloyds; EAC
- Ambient operating temperature - max
- 55 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Ambient storage temperature - min
- -30 °C
- Number of auxiliary contacts (change-over contacts)
- 0
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 0
- Heat dissipation per pole, current-dependent Pvid
- 3.9 W
- Rated operational current for specified heat dissipation (In)
- 63 A
- Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)
- 504 A
- Rated insulation voltage (Ui)
- 690 V
- Rated operational current (Ie) at AC-21, 400 V, 415 V
- 63 A
- Rated operational current (Ie) at AC-22, 380 V, 400 V, 415 V
- 63 A
- Rated operational current (Ie) at AC-23A, 400 V, 415 V
- 63 A
- Rated operational power at AC-23A, 400 V, 50 Hz
- 63 kW
- Rated operational voltage (Ue) at AC - max
- 415 V
- Rated uninterrupted current (Iu)
- 63 A
- Uninterrupted current
- Rated uninterrupted current Iu is specified for max. cross-section.
- Features
- Version as main switch; Version as maintenance-/service switch
- Functions
- Optional Stop Function
- Number of poles
- Four-pole
- Actuator color
- Other
- Actuator type
- Other
- Connection type
- Horizontal
- Degree of protection
- NEMA Other
- Degree of protection (front side)
- IP20
- Lifespan, mechanical
- 10,000 Operations
- Mounting method
- Surface mounting
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- Main switch Switch-disconnector
- Rated impulse withstand voltage (Uimp)
- 6000 V
- Safety parameter (EN ISO 13849-1)
- B10d values as per EN ISO 13849-1, table C.1
- Suitable for
- Ground mounting; Distribution board installation
- Breaking current
- 7 kA
- Light-through energy
- Max. 12 kA²s
- Rated conditional short-circuit current (Iq)
- 50 kA
- Rated short-circuit making capacity (Icm)
- 1.4 kAeff
- Rated short-time withstand current (Icw)
- 1,5 kA, Contacts, 1 second; 1.5 kA
- Short-circuit protection rating
- 50, Fuse, Contacts
- Stripping length (main cable)
- 14 mm
- Terminal capacity
- 2.5 - 16 mm², solid; 1.5 - 25 mm², flexible
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 8711426313996
- SAP 1000259297
- Code 8156102
Product Documentation
Document preview: Lastskilleswitch,DCM-63/4-SK+HC — Specification Data Sheet (OEM)
