Eaton plinth for pluggable NZM1

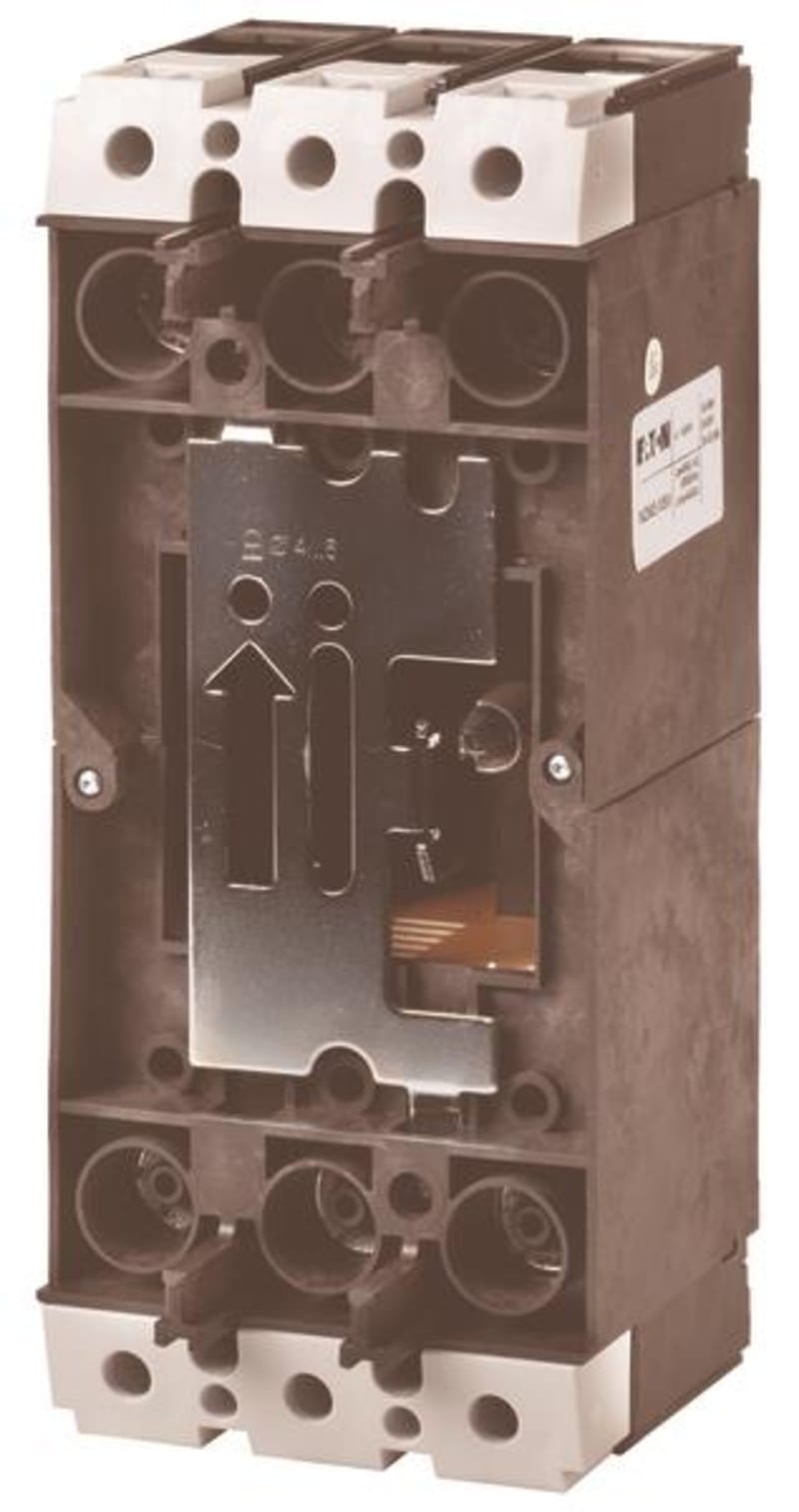

Eaton NZM1-XSVS plinth for pluggable NZM1.

Manufacturer part number (MPN)

NZM1-XSVS

EAN / GTIN

4015081089598

Sales unit

pcs

Eaton catalogue number

109777

Depth

190 mm

Height

78 mm

Width

100 mm

Weight

0.678 kg

Compliances

IEC; RoHS conform

Certifications

IEC/EN 60947

Features

Version as busbar adapter

Frame

NZM1

Nominal current

108 A

Number of poles

Three-pole

Type

Plug-in socket for basic unit

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Equipment heat dissipation, current-dependent

14.06 W

Direction of incoming supply

As required

Electrical connection type of main circuit

Frame clamp

Isolation

300 V AC (between the auxiliary contacts); 500 V AC (between auxiliary contacts and main contacts)

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Degree of protection

IP2X (in the area of the plug-in area)

Mounting Method

Plug-in unit

Mounting position

Vertical and 90° right/left

Protection against direct contact

Finger and back-of-hand proof to VDE 0106 part 100

Shock resistance

20 g (half-sinusoidal shock 20 ms)

Terminal equipment included

Screw connection

Rated current In

108 A

Version as busbar adaptor

Yes

Version as built-in device

No

Type of electrical connection of main circuit

Frame clamp

Country of origin

China

HS Code

8538.90

• EAN 4015081089598
• SAP 1200600915
• Code 82981017
