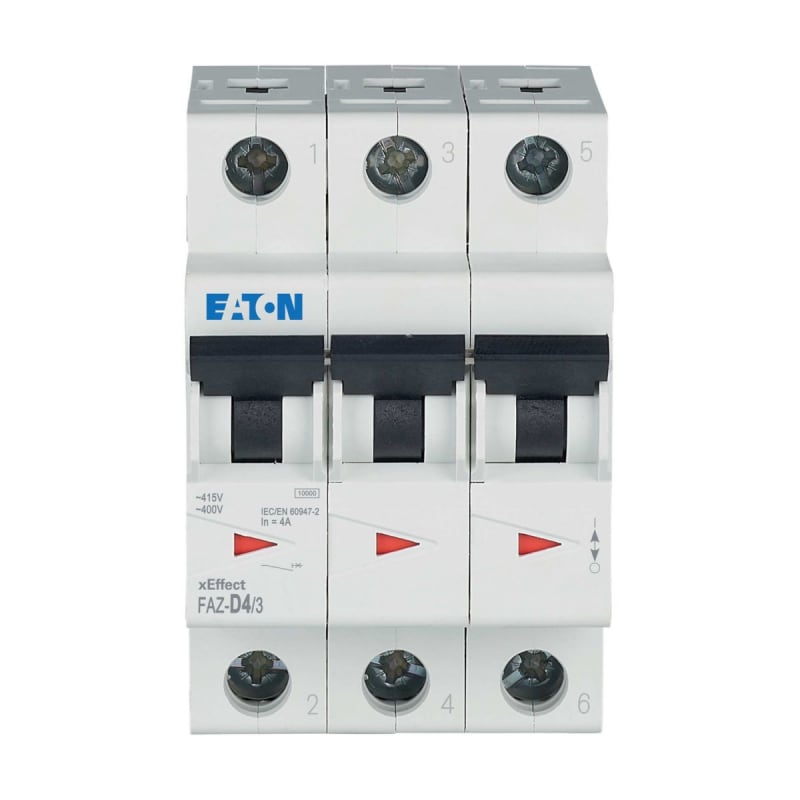

FAZ-D4/3 (278888)

Eaton 278888 Industry unit breaker 3pol 4A D curve.

Manufacturer part number (MPN)

278888

EAN / GTIN

4015082788889

Sales unit

pcs

Package quantity

40 pcs

Eaton catalogue number

278888

Depth

80 mm

Height

75.5 mm

Width

54 mm

Weight

0.338 kg

Compliances

UL CSA09 (with supplementary protector only); RoHS conform

Certifications

North America (UL recognized, CSA certified); CSA-C22.2 No. 235; IEC/EN 60898; UL 1077; CE marking; UL (Category Control Number QVNU2, QVNU8); UL (File No. E177451); CSA (Class No. 3215-30); CSA (File No. 204453); IEC/EN 60947-2; EN45545-2; IEC 61373

Current limiting class

3

Features

Additional equipment possible

Special features

Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity

Used with

Miniature circuit breaker; FAZ

Amperage Rating

4 A

Application

Branch circuits, not as BCPD Switchgear for industrial and advanced commercial applications xEffect - Switchgear for industrial and advanced commercial applications

Number of poles

Three-pole

Number of poles (protected)

3

Number of poles (total)

3

Release characteristic

D

Tripping characteristic

D

Type

FAZ Miniature circuit breaker

Ambient operating temperature - max

75 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

4.4 W

Rated operational current for specified heat dissipation (In)

4 A

Frequency rating - max

60 Hz

Frequency rating - min

50 Hz

Overvoltage category

III

Pollution degree

2

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

440 V

Rated operational voltage (Ue) - max

400 V

Rated short-circuit breaking capacity (IEC/EN 60898-1) - Icn at 230 V

10 kA

Rated short-circuit breaking capacity (IEC/EN 60898-1)- Icn at 400 V

10 kA

Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 230 V

15 kA

Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 400 V

15 kA

Rated switching capacity (IEC/EN 60947-2)

15 kA

Voltage rating

240 V AC / 415 V AC

Voltage rating (UL CSA 13)

480 Y/277 V AC

Voltage type

AC

Built-in depth

70.5 mm

Connectable conductor cross section (multi-wired) - max

25 mm²

Connectable conductor cross section (multi-wired) - min

1 mm²

Connectable conductor cross section (solid-core) - max

25 mm²

Connectable conductor cross section (solid-core) - min

1 mm²

Degree of protection

IP20 (IEC); UL/CSA Type: -; IP20

Width in number of modular spacings

3

Document Name

Description Action

Power loss

4.5 W

Number of protected poles

3

Rated current

4 A

Rated voltage

400 V

Rated insulation voltage Ui

440 V

Rated impulse withstand voltage Uimp

4 kV

Frequency

50–60 Hz

Concurrently switching neutral conductor

No

Additional equipment possible

Yes

Ambient temperature during operating

-25–75 °C

Connectable conductor cross section multi-wired

1–25 mm²

Connectable conductor cross section solid-core

1–25 mm²

Explosion-proof

No

Flush-mounted installation

No

Country of origin

Romania

HS Code

8536.30
