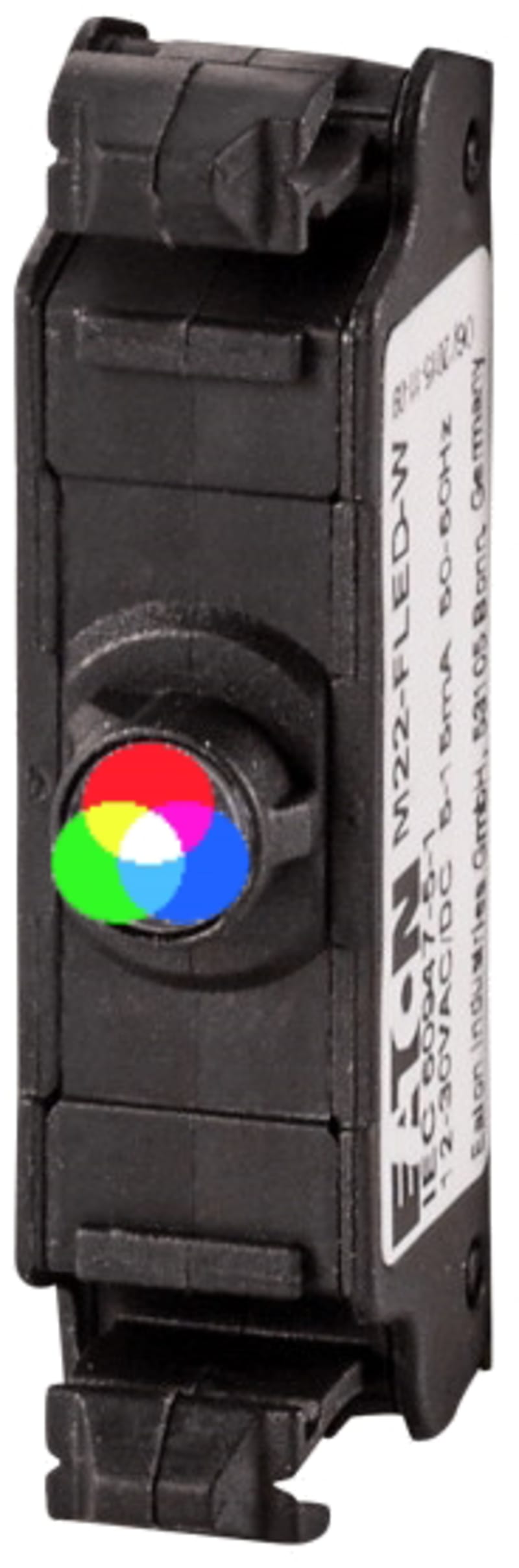

LED element, flat rear (M22-FLED-RGB)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton LED element, flat rear (M22-FLED-RGB) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 20 pcs; Eaton catalogue number: 180800; Depth: 38 mm; Height: 10 mm; Width: 14 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-FLED-RGB
- EAN / GTIN
- 4015081759743
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Eaton catalogue number
- 180800
- Depth
- 38 mm
- Height
- 10 mm
- Width
- 14 mm
- Weight
- 0.004 kg
- Certifications
- UL; IEC/EN 60947-5; CSA; UL 508; CSA Class No.: 3211-03; CSA File No.: 012528; CSA-C22.2 No. 94-91; UL Category Control No.: NKCR; CE; IEC 60947-5-1; UL File No.: E29184; CSA-C22.2 No. 14-05
- Catalog Notes
- Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 85 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Dry heat to IEC 60068-2-2; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- No
- Power consumption
- Max. 0.36 W
- Rated insulation voltage (Ui)
- 250 V
- Rated operational current (Ie) - max
- 15 mA
- Rated operational current (Ie) - min
- 8 mA
- Rated operational voltage (Ue) at DC - max
- 24 V
- Rated operational voltage (Ue) at DC - min
- 24 V
- Color
- Green; Red; Blue
- Fitted with
- Light source; Diode
- Light color
- Multi-colored
- Degree of protection
- IP20
- Lifespan, electrical
- 100,000 h (at 25°C, according to EN60064)
- Overvoltage category
- III
- Pollution degree
- 3
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Voltage type
- DC
- Connection type
- Front fixing
- Mounting position
- As required
- Terminal capacity (flexible with ferrule)
- 1 x (0.25 - 1) mm²; Use WAGO Variocrimp 4 crimping tool; please enquire for others
- Terminal capacity (solid)
- 1 x (075 - 1.5) mm² Can be plugged without tools; 1 x (0.2 - 1.5) mm²
- Terminal capacity (solid/stranded AWG)
- 20
- Terminal capacity (stranded)
- 1 x (0.2 - 1.5) mm²
- Lamp holder
- None
- Transformer integrated
- No
- With integrated voltage decreasing resistor
- No
- With integrated diode
- Yes
- Lamp type
- LED
- Type of fastening
- Front fastening
- With light source
- Yes
- Connection type auxiliary circuit
- Spring clamp connection
- Rated voltage Ue at DC
- 24 V
- Voltage type for actuating
- DC
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8541.41
Cross References
- EAN 4015081759743
- SAP 1000775541
- Code 81387581
Product Documentation
More from Eaton
Eaton
Enclosure 250X187,5X125 CLEAR
CI23E-125
Eaton
Eaton CWIZ-02/d7 xComfort Two-Hallway Rocker, Alpine White Matte, Scene Icons
Eaton
Eaton CWIZ-02/58 xComfort Two-Hallway Rocker 55 x 55 mm, Signal White Glossy, Arrows
Eaton
Shield clamp 800A 3/4-POLE xE Main (XDSF08)
Eaton
Eaton NZM2-XBSM-TZ
Eaton
Installation Relay 20A 24V AC/DC 1NO+1NC
CR2011024
Eaton
Door double G2 OvU 2-Row 106 mm
EP-501172
Eaton
Eaton EU4A-RJ45-CAB1
