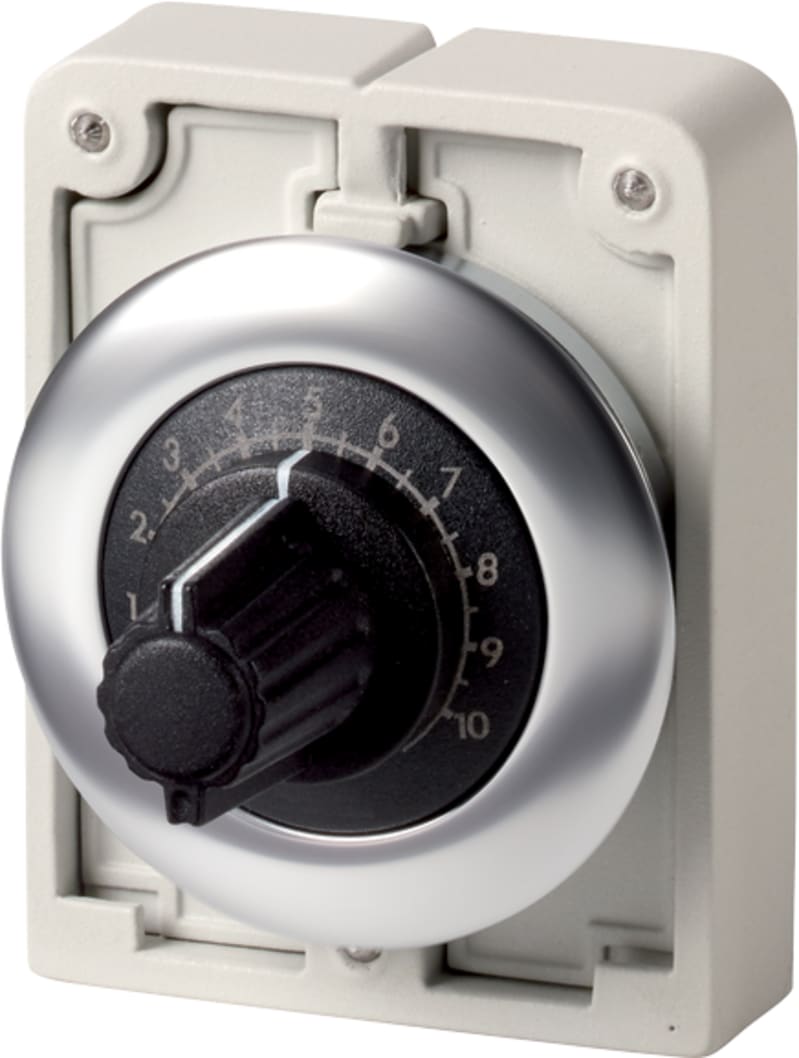

Potentiometer, Flat Front (M30C-FR47K)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Potentiometer, Flat Front (M30C-FR47K) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 187031; Depth: 36 mm; Height: 63 mm; Width: 46 mm; Weight: 0.055 kg.
Technical Specifications
- Manufacturer part number (MPN)
- M30C-FR47K
- EAN / GTIN
- 4015081820979
- Sales unit
- pcs
- Eaton catalogue number
- 187031
- Depth
- 36 mm
- Height
- 63 mm
- Width
- 46 mm
- Weight
- 0.055 kg
- Certifications
- VDE 0660; IEC/EN 60947
- Bezel color
- Titanium
- Design
- Flat front
- Electric connection type
- Screw connection
- Fitted with
- 3 individual screw terminals
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- No
- Static heat dissipation, non-current-dependent Pvs
- 0.5 W
- Power consumption
- 0.5 W
- Rated insulation voltage (Ui)
- 250 V
- Rated power
- 0.5 VA
- Resistance
- 47000 Ohm
- Degree of protection
- IP66; NEMA Other
- Lifespan, mechanical
- 25,000 Operations
- Mounting position
- As required
- Opening diameter
- 30 mm
- Overvoltage category
- III
- Pollution degree
- 3
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Type
- Potentiometer
- Terminal capacity (solid)
- 0.5 - 1.5 mm²
- Terminal capacity (stranded)
- 0.5 - 1.5 mm²
- Tightening torque
- 0.5 Nm, Screw terminals
- Hole diameter
- 30 mm
- Type of electric connection
- Screw connection
- Number of revolutions
- 1
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8533.40
Cross References
- EAN 4015081820979
- SAP 1200037101
- Code 81866532
Product Documentation
More from Eaton
Eaton
Cylindrical Fuse 22 x 58, 80A
C22M80
Eaton
Residual Current CB
FRCDM-40/4/03-S/A
Eaton
Eaton NZM2/3-XA2A208-240AC
Eaton
LED Steady light, Yellow, 24V, HP
SL7-L24-Y-HP
Eaton
Eaton NZM4-XTVDVR
Eaton
Emergency STOP with LIGHT, IN/OUT, Black
M22S-PVL
Eaton
Eaton AZ-2-C125 Miniature Circuit Breaker — 2P, Type C, 125 A, up to 25 kA
Eaton
Eaton FAZ-K25/1 Miniature Circuit Breaker — 1P, Type K, 25 A, 15 kA
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy M30C-FR47K?
- M30C-FR47K can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is M30C-FR47K.
- What is the HS code for M30C-FR47K?
- The customs tariff (HS) code for M30C-FR47K is 8533.40.
- Who manufactures M30C-FR47K?
- M30C-FR47K is a Eaton product in the Control & Automation range.
- Is a datasheet available for M30C-FR47K?
- Yes — the M30C-FR47K datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for M30C-FR47K?
- The minimum order quantity is 1.
- Is M30C-FR47K available?
- Yes — M30C-FR47K is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
