Eaton

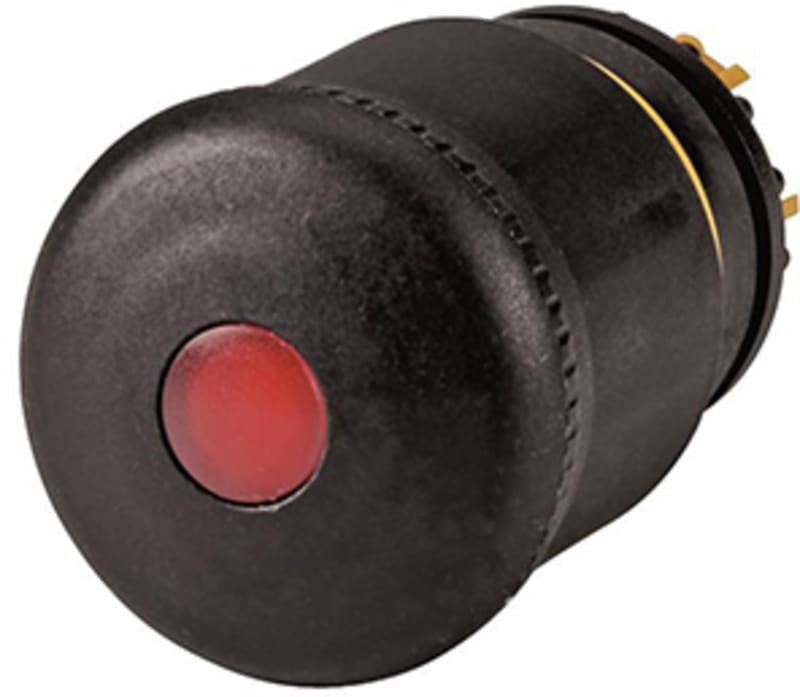

Emergency STOP with LIGHT, IN/OUT, Black
Part numberM22S-PVLEAN / GTIN4015082309626HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22S-PVL Emergency-stop pushbutton, illuminated.
Technical Specifications
- Manufacturer part number (MPN)
- M22S-PVL
- EAN / GTIN
- 4015082309626
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 230962
- Depth
- 38 mm
- Height
- 70 mm
- Width
- 38 mm
- Weight
- 0.039 kg
- Certifications
- UL 508; CSA Class No.: 3211-03; UL Category Control No.: NKCR; CSA-C22.2 No. 94-91; UL; CE; CSA; CSA-C22.2 No. 14-05; IEC/EN 60947; IEC/EN 60947-5; CSA File No.: 012528; UL File No.: E29184; VDE 0660; DNV; GL; LR
- Catalog Notes
- Max. Configuration: 4 x M22-(C)K01, …10 or 2 x M22-(C)K02, …20, …11 and 1 x M22-(F)LED... - When using M22-PVL… with 1 x M22-K01SMC10 (single channel), article M22-XSMC (order no.: 173030) is required. Order this item separately.
- Actuating force
- 50 N
- Actuator color
- Black
- Actuator diameter
- 38 mm
- Actuator function
- Pull-to-release
- Color
- Black
- Design
- Mushroom-shaped; Classical
- Illumination
- Illuminated with LED element
- Unlocking method
- Pull-release
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- Yes; With SWD-RMQ connections
- Base color
- Yellow
- Bezel color
- Other
- Bezel material
- Other
- RAL-number
- 9005
- Degree of protection
- IP67/IP69K; NEMA 4X, 13
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: 35 mm
- Suitable for
- Illumination
- Type
- Emergency stop pushbutton STOP pushbutton
- Hole diameter
- 22.5 mm
- Colour button
- Black
- Suitable for lighting
- Yes
- Spring-return
- No
- Diameter cap
- 38 mm
- Suitable for emergency stop
- No
- Type of button
- High
- With lighting
- No
- With front ring
- No
- Construction type lens
- Round
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082309626
- SAP 1000064124
- Code 8551403
Product Documentation
Document preview: EMERGENCY STOP M/LYS, INN/UT, BLACK (M22S-PVL) — Specification Data Sheet (OEM)
More from Eaton
Eaton

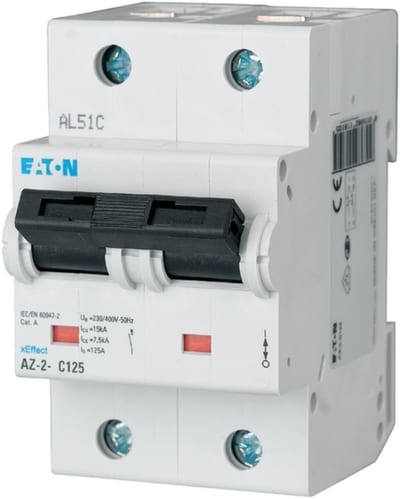

Eaton AZ-2-C125 Miniature Circuit Breaker — 2P, Type C, 125 A, up to 25 kA
Eaton
Eaton FAZ-K25/1 Miniature Circuit Breaker — 1P, Type K, 25 A, 15 kA
Eaton
DG1 variable-frequency drive 400V: 11kW (DG1-34023FB-C54C)
Eaton

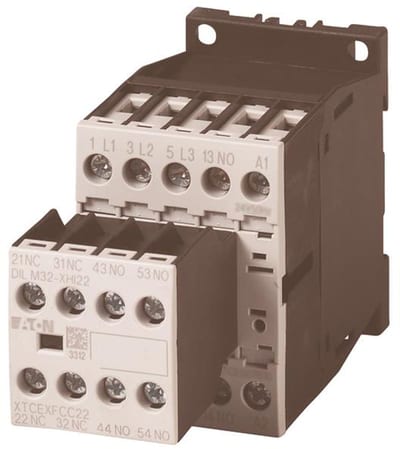

Contactor DILM9-32(230V50HZ,240V60HZ)
Eaton

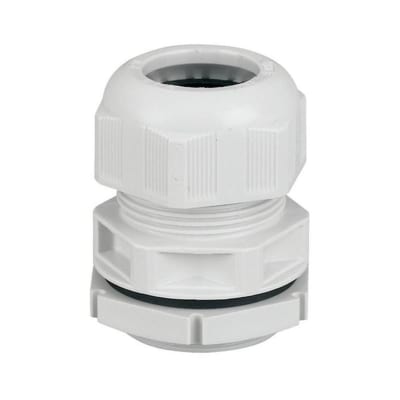

Nipple IP68 M12 (V-M12)
Eaton

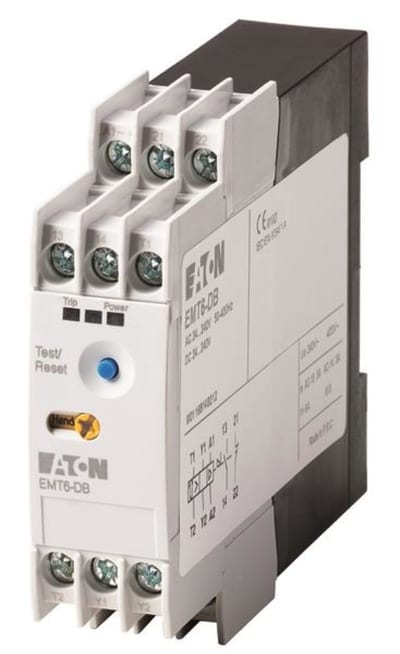

Thermistor Relay EMT6-DB
Eaton
Lock 5mm double-bit (LC-DBIT5-CS)
Eaton

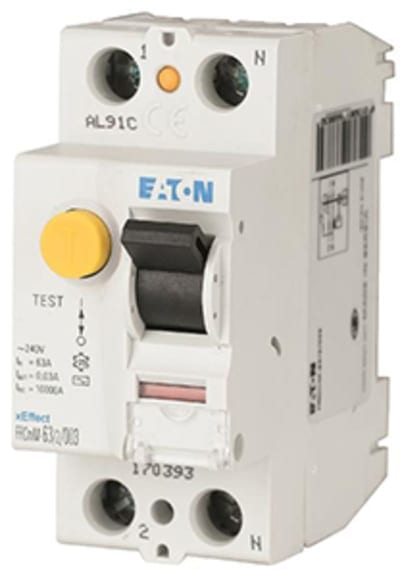

Residual current circuit breaker 25/2/05-A
