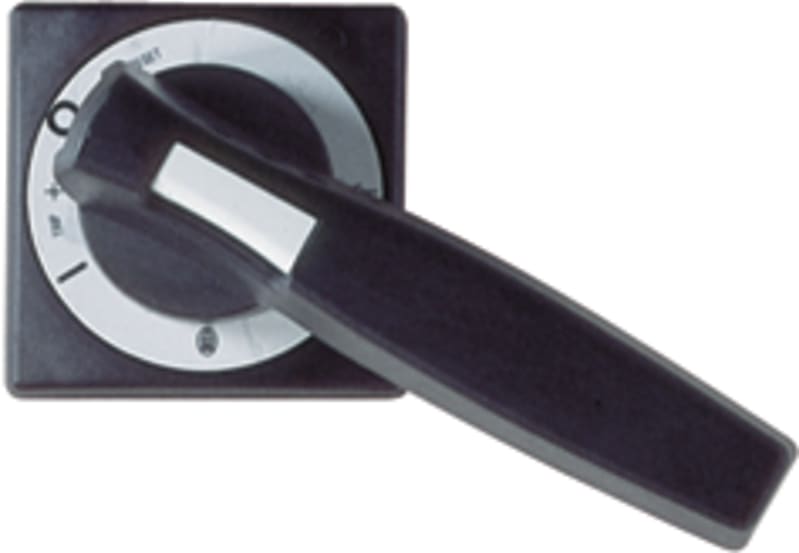

Eaton NZM4-XTVDVR

Eaton NZM4-XTVDVR is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 266618; Depth: 230 mm; Height: 130 mm; Width: 230 mm; Weight: 1.866 kg.

Manufacturer part number (MPN)

NZM4-XTVDVR

EAN / GTIN

4015082664183

Sales unit

pcs

Eaton catalogue number

266618

Depth

230 mm

Height

130 mm

Width

230 mm

Weight

1.866 kg

Compliances

UL/CSA; IEC; RoHS conform

Certifications

CE marking; UL listed; CSA certified; IEC60947; CSA-C22.2 No. 5-09; CSA (Class No. 1437-01); UL (Category Control Number DIHS); UL489; UL (File No. E140305); CSA (File No. 22086)

Features

Red-yellow for emergency switching off; Lockable

Fitted with

Padlock

Frame

NZM4

Special features

Door coupling rotary handle for operating the switch through a closed control panel door External warning plate/designation label can be clipped on. Complete including rotary drive and coupling parts Extension shaft additionally required.

Suitable for

Power circuit breaker; Emergency stop; Switch disconnector

Type

Accessory Door coupling rotary handle

Used with

NZM4(-4), N(S)4(-4)

Color

Red

Cover/door type

Door interlock not defeated in the locked OFF position.; Door can be opened in OFF; Door interlock can be modified such that it can be defeated from the outside using a screwdriver; Door interlock can be modified in the unlocked ON position

Degree of protection / NEMA enclosure type

IP66; 4X. 12

Lock number

Double lockable

Locking facility

With door interlock; Lockable on the handle on the switch using up to 3 padlocks

Colour

Black

Lockable

Yes

Padlock locking

Yes

Suitable for emergency stop

Yes

With extension shaft

No

With restart blockage

No

Suitable for power circuit breaker

Yes

Suitable for switch disconnector

Yes

Degree of protection (NEMA)

4X, 12

With key lock

No

Country of origin

Germany

HS Code

8538.90
