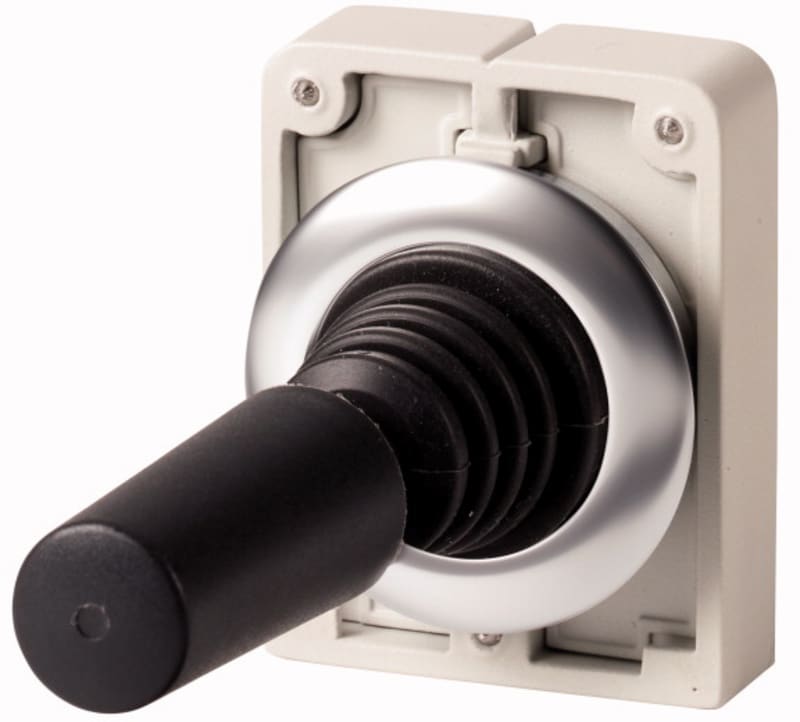

Joystick, Flat Front (M30C-FWRJS2H)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Joystick, Flat Front (M30C-FWRJS2H) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 187078; Depth: 36 mm; Height: 93 mm; Width: 46 mm; Weight: 0.06 kg.
Technical Specifications
- Manufacturer part number (MPN)
- M30C-FWRJS2H
- EAN / GTIN
- 4015081821365
- Sales unit
- pcs
- Eaton catalogue number
- 187078
- Depth
- 36 mm
- Height
- 93 mm
- Width
- 46 mm
- Weight
- 0.06 kg
- Certifications
- IEC/EN 60947; VDE 0660
- Actuating force
- 5 N
- Actuator function
- Maintained; Horizontal
- Bezel color
- Chrome
- Bezel material
- Metal
- Fitted with
- Filament bulb (24 V); Metal shaft; Front ring
- Number of actuation directions
- 2
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Degree of protection
- IP66; NEMA 4X, 13
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 30 mm
- Operating frequency
- 2000 Operations/h
- Product Category
- RMQ-Titan
- Size
- Front dimensions: Ø 36 mm
- Type
- Joystick
- Number of switch positions
- 1
- Centre mounting, hole diameter
- 30 mm
- With retraction in 0-position
- No
- Colour front ring
- Chrome
- Analogue output signal configurable
- No
- Coder
- No
- Material front ring
- Metal
- With front ring
- Yes
- Locking in 0-position
- No
- Joy stick length
- 66 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081821365
- SAP 1200037144
- Code 81866615
