Eaton

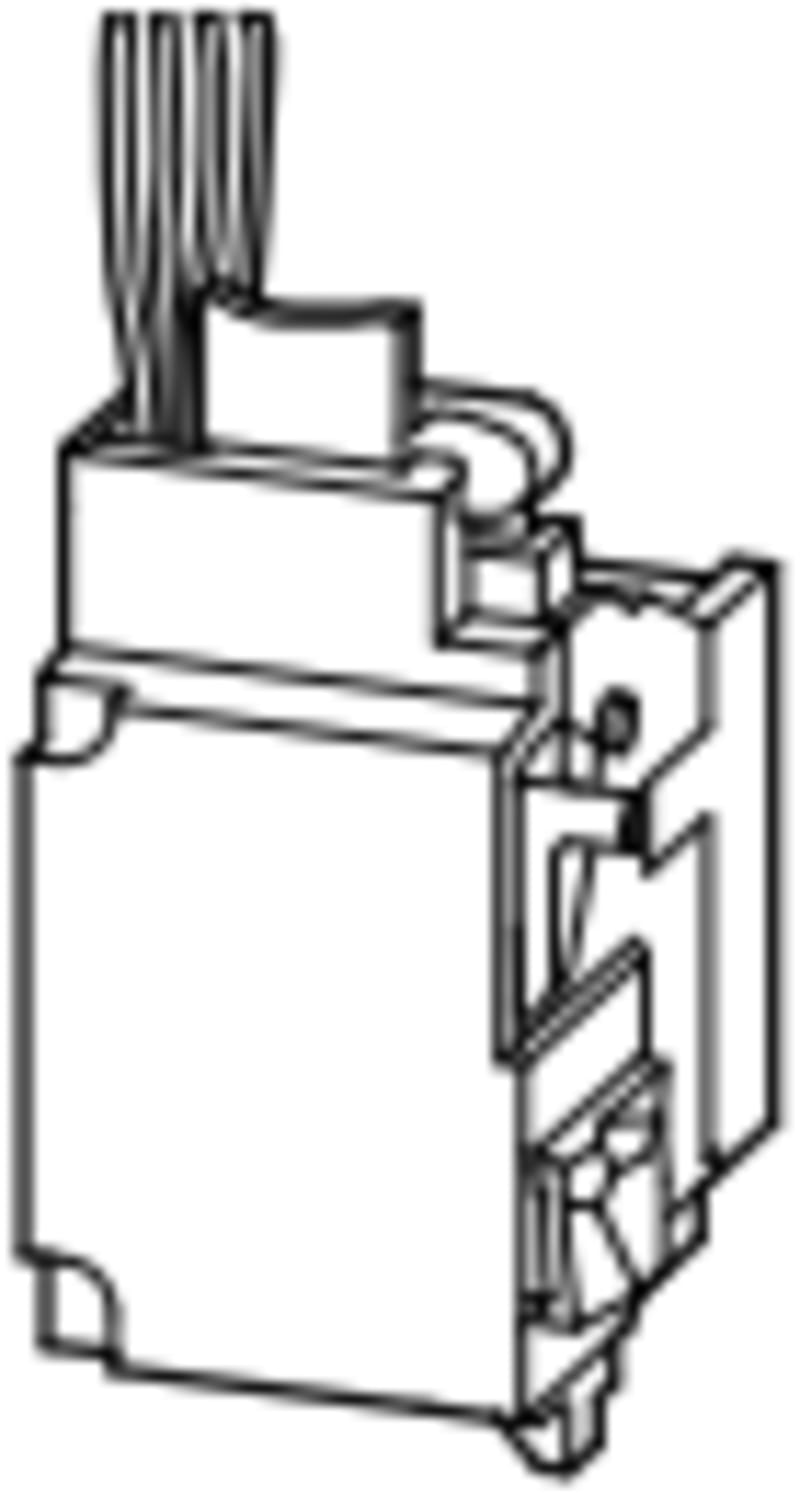

Undervoltagestrigger 208-240V (259471)
Part number259471EAN / GTIN4015082594718HS code8538.90
Electrical Components
Circuit Breaker Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 259471 Undervoltage release 208-240V.
Technical Specifications
- Manufacturer part number (MPN)
- 259471 EAN / GTIN: 4015082594718 Sales unit: pcs Eaton catalogue number: 259471 Depth: 37 mm Height: 66 mm Width: 32 mm Weight: 0.107 kg Compliances: UL/CSA; IEC; RoHS conform Certifications: CSA-C22.2 No. 5-09; CSA (Class No. 1437-01); UL489; CSA (File No. 22086); CE marking; UL (File No. E140305); CSA certified; IEC60947; UL (Category Control Number DIHS); UL listed Frame: NZM1 Suitable for: Off-load switch Type: Undervoltage release Used with: NZM1(-4), N(S)1(-4) Drop-out voltage of undervoltage release AC/DC - max: 0.7 x Us Drop-out voltage of undervoltage release AC/DC - min: 0.35 x Us Electric connection type: Screw connection minimum command time - max: 15 ms minimum command time - min: 10 ms Pick-up power consumption at AC (undervoltage release): 1.5 VA Pick-up power consumption at DC (undervoltage release): 0.8 W Power consumption: 0.8 W (DC); 1.5 VA (AC) Rated control supply voltage: 208 - 240 V 50/60 Hz Rated control supply voltage (Us) at AC, 50 Hz - max: 240 V Rated control supply voltage (Us) at AC, 50 Hz - min: 208 V Rated control supply voltage (Us) at AC, 60 Hz - max: 240 V Rated control supply voltage (Us) at AC, 60 Hz - min: 208 V Rated control voltage (relay contacts): 240 V AC; 208 V AC Reaction time: 19 ms Voltage tolerance - max: 1.1 Voltage tolerance - min: 0.85 Voltage type: AC Connection type: With 3 m connection cable instead of screw termination Number of contacts (change-over contacts): 0 Number of contacts (normally closed contacts): 0 Number of contacts (normally open contacts): 0 Delayed: No Suitable for off-load switch: Yes Suitable for overload relay: No Type of electric connection: Screw connection Rated control supply voltage AC 50 Hz: 208–240 V Rated control supply voltage AC 60 Hz: 208–240 V Suitable for motor safety switch: No Suitable for power circuit breaker: No Voltage type for actuating: AC Country of origin: Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082594718
- SAP 1000059417
- Code 8545551
Product Documentation
Document preview: UNDERVOLTAGESTRIGGER 208-240V (259471) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton FAZT-C25/2 Miniature Circuit Breaker — 2P, Type C, 25 A, 25 kA
Eaton
Safety Switch,P1-40/I2/SVB/HI11
Eaton
Eaton FAZ-D63/2 Miniature Circuit Breaker — 2P, Type D, 63 A, 15 kA
Eaton
Contact Block for DILA, 3S+1TO
DILA-XHI31
Eaton
Akuplug Konst/Pulse 24V
SL7-AP24-E
Eaton
Current monitoring relay (EMR6-I15-B-1)
Eaton
Cable protectionsrail (BPZ-KFS-350)
Eaton
Eaton FAZ-D20/2 Miniature Circuit Breaker — 2P, Type D, 20 A, 15 kA
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 259471?
- 259471 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is 259471.
- What is the HS code for 259471?
- The customs tariff (HS) code for 259471 is 8538.90.
- Who manufactures 259471?
- 259471 is a Eaton product in the Electrical Components range.
- Is a datasheet available for 259471?
- Yes — the 259471 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 259471?
- The minimum order quantity is 1.
- Is 259471 available?
- Yes — 259471 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
