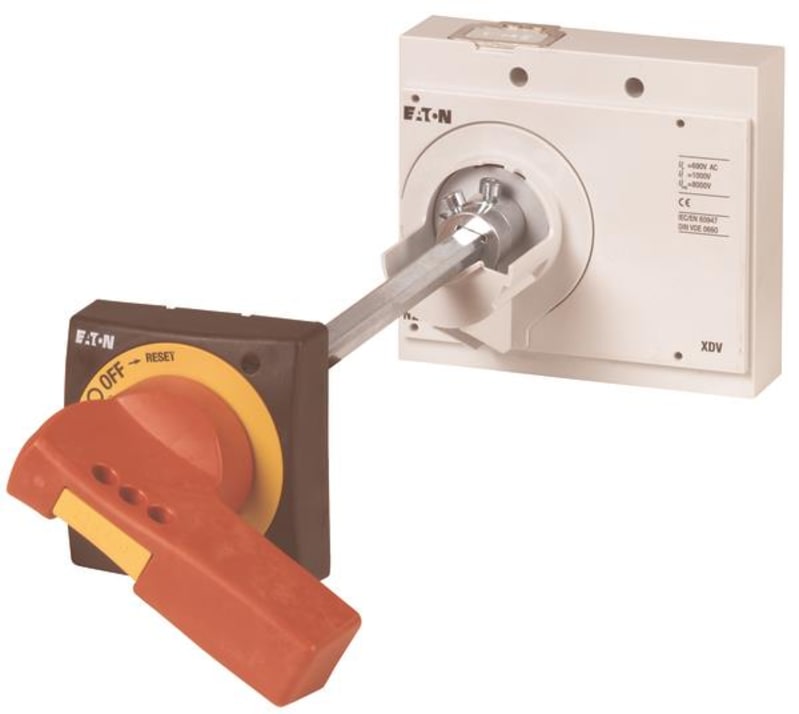

Eaton NZM3-XHBR

Eaton NZM3-XHBR is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 266634; Depth: 230 mm; Height: 110 mm; Width: 140 mm; Weight: 1.658 kg.

Manufacturer part number (MPN)

NZM3-XHBR

EAN / GTIN

4015082666347

Sales unit

pcs

Eaton catalogue number

266634

Depth

230 mm

Height

110 mm

Width

140 mm

Weight

1.658 kg

Compliances

UL/CSA; IEC; RoHS conform

Certifications

UL listed; CSA (Class No. 1437-01); CSA-C22.2 No. 5-09; UL (File No. E140305); CE marking; IEC60947; CSA certified; CSA (File No. 22086); UL489; UL (Category Control Number DIHS)

Features

Lockable; With red door coupling rotary handle for use of switch as emergency switching off device to IEC/EN 60204-1, VDE 0113 part 1

Fitted with

Black and yellow lightning symbol; External warning plate/marking plate in German/English; Extension shaft; NZM...-XV4 extension shaft; Door coupling rotary handle with rotary drive; Padlock

Frame

NZM3

Special features

External warning plate/designation label can be clipped on. For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger. Kit for use as a main switch

Suitable for

Emergency stop; Power circuit breaker; Switch disconnector

Type

Accessory Main switch assembly kit

Used with

NZM3(-4); N(S)3(-4); PN3(-4)

Color

Red

Degree of protection / NEMA enclosure type

IP66; 4X. 12

Locking facility

Lockable on the 0 position on the handle using up to 3 padlocks; With door interlock; Lockable on the switch in the 0 position

Colour

Black

Lockable

Yes

Padlock locking

Yes

Suitable for emergency stop

Yes

With extension shaft

Yes

With restart blockage

No

Suitable for power circuit breaker

Yes

Suitable for switch disconnector

Yes

Degree of protection (NEMA)

4X, 12

With key lock

No

Country of origin

Germany

HS Code

8538.90
