Modular load-break switch with trip (ZP-A63/3)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Modular load-break switch with trip (ZP-A63/3) is listed under Switchgear & Protection / Disconnect Switches. HS code: 8536.90; Sales unit: pcs; Package quantity: 40 pcs; Eaton catalogue number: 284908; Depth: 83 mm; Height: 75 mm.
Technical Specifications
- Manufacturer part number (MPN)
- ZP-A63/3
- EAN / GTIN
- 4015082849085
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Eaton catalogue number
- 284908
- Depth
- 83 mm
- Height
- 75 mm
- Width
- 53.1 mm
- Weight
- 0.285 kg
- Compliances
- RoHS conform
- Degree of protection
- IP40
- Imprint/indication
- Symbol "arrows"
- Lamp socket
- Other
- Built-in depth
- 60 mm
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 3
- Amperage rating
- 63 A
- Color calotte
- Other
- Switch type
- Off switch
- Rated short-time withstand current (Icw)
- 3 kA
- Voltage type
- AC
- Lamp type
- Other
- Number of contacts (normally open contacts)
- 3
- Rated operational voltage (Ue) - max
- 400 V
- Voltage rating - min
- 230 V
- Width in number of modular spacings
- 3
- Number of poles
- Three-pole
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015082849085
- SAP 1200562341
- Code 82901617
Product Documentation
More from Eaton
Eaton
Safety Switch 3P Recessed (P1-32/EA/Svb)
P1-32/EA/SVB
Eaton
Terminal 1-Pole 160A
BPZ-KB-2/11/160
Eaton
DE1 3~/3~480V 2,1 A 0,75 kW
DE1-342D1FN-N20N
Eaton

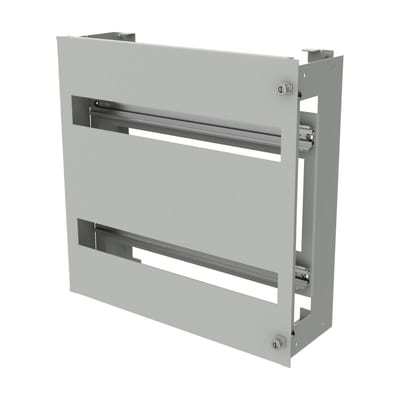

DIN-sk meter panel 2M MSW H425 B1000 xEB
2457656
Eaton

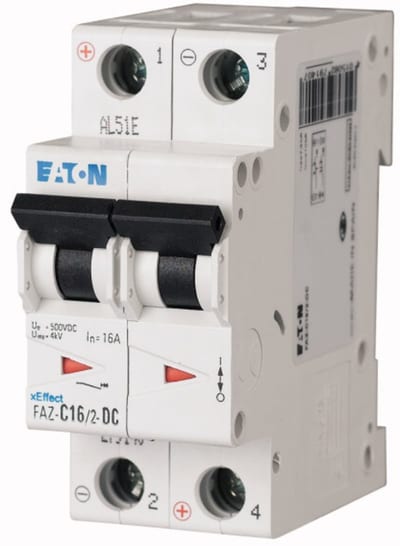

Unit breaker 20 A 2P C DC
FAZ-C20/2-DC
Eaton

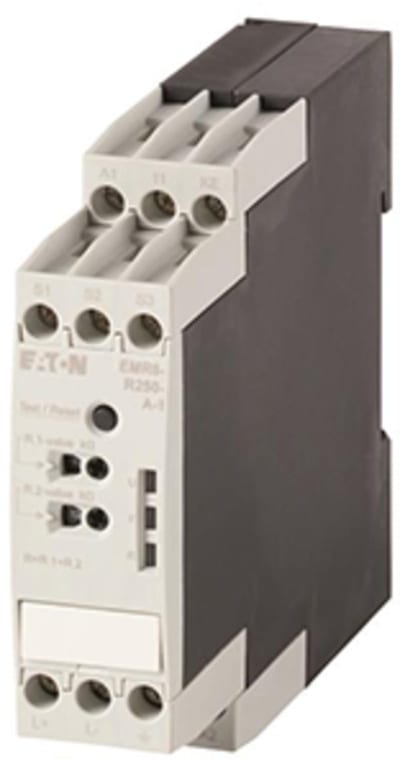

Isolasjons relay (EMR6-R250-A-1)
Eaton

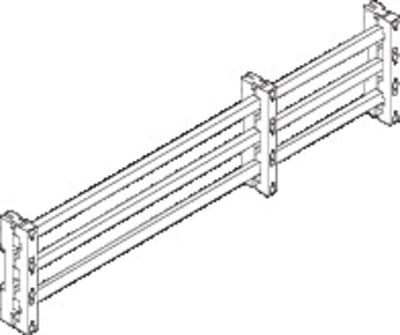

CU-RAIL 20X10 L=2250mm
CU20X10-2250
Eaton

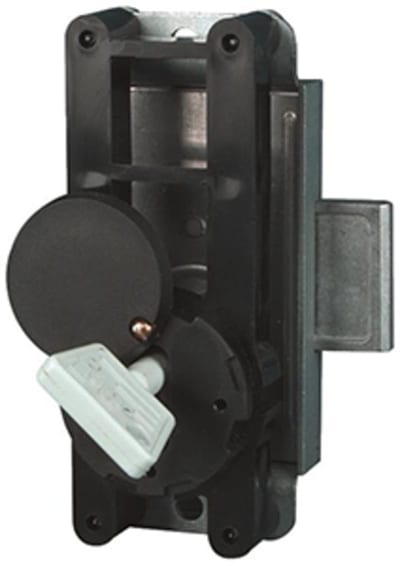

Key MS xE (MS-61005)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZP-A63/3?
- ZP-A63/3 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is ZP-A63/3.
- What is the HS code for ZP-A63/3?
- The customs tariff (HS) code for ZP-A63/3 is 8536.90.
- Who manufactures ZP-A63/3?
- ZP-A63/3 is a Eaton product in the Switchgear & Protection range.
- Is a datasheet available for ZP-A63/3?
- Yes — the ZP-A63/3 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZP-A63/3?
- The minimum order quantity is 1.
- Is ZP-A63/3 available?
- Yes — ZP-A63/3 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
