Eaton

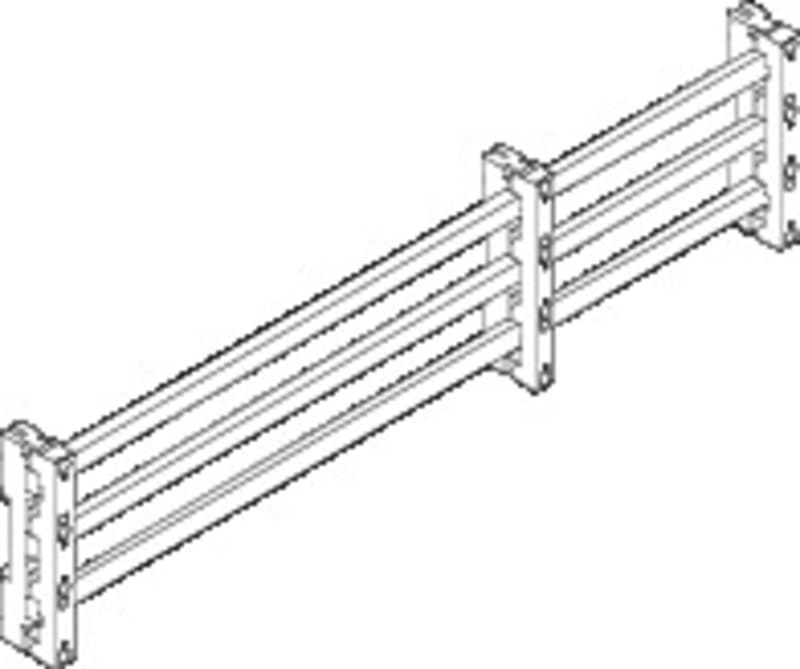

CU-RAIL 20X10 L=2250mm
Part numberCU20X10-2250EAN / GTIN4015080098393HS code7407.10
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton CU-RAIL 20X10 L=2250mm (part number CU20X10-2250) is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 5 pcs; Eaton catalogue number: 009839; Depth: 2250 mm; Height: 10 mm; Width: 20 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CU20X10-2250
- EAN / GTIN
- 4015080098393
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 009839
- Depth
- 2250 mm
- Height
- 10 mm
- Width
- 20 mm
- Weight
- 4.01 kg
- Compliances
- RoHS conform
- Certifications
- UL Listed; EN 13061
- Functions
- Prepared enclosure; System for flat busbars; Flat busbar
- Special features
- Flat copper busbars
- Used with
- SH0635/4; SH0632; Modular busbar system; System for flat busbars; 60 mm system; Accessory panel building; General switchboard accessory
- Accessory/spare part type
- Flat copper bars
- Model
- Flat
- Nominal current
- 400 A
- Type
- Accessory panel building General switchboard accessory Modular busbar system for flat busbars 60 mm system
- Ambient operating temperature - max
- 35 °C
- Rated operation current (Ie)
- 460 A
- Uninterrupted current (Iu) of bar
- 200 A (12 x 5 mm, Tu=35 °C and Ts=65 °C); 360 A (12 x 10 mm, Tu=35 °C and Ts=65 °C); 520 A (20 x 10 mm, Tu=35 °C and Ts=65 °C); 320 A (12 x 5 mm, Tu=35 °C and Ts=65 °C); 450 A (30 x 5 mm, Tu=35 °C and Ts=65 °C); 630 A (30 x 10 mm, Tu=35 °C and Ts=65 °C)
- Distance between busbar centers
- 60 mm
- Material
- Copper, tinned
- Surface finishing
- Tinned
- Surface protection
- Tinned
- Unit type
- Modular system
- Flexible
- No
- Length
- 2250 mm
- Rated current In
- 400 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7407.10
Cross References
- EAN 4015080098393
- SAP 1000788128
- Code 81399901
Product Documentation
Document preview: CU-RAIL 20x10 L=2250mm (CU20X10-2250) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Key MS xE (MS-61005)
Eaton
Current monitoring relay (EMR6-VF600-A-1)
Eaton
Akuplug,230V,Konst/Pulse (SL7-AP230-E)
Eaton
BOX with KONTAKTELEM.1S+1TO
M22-I1-M1
Eaton
LOCK 3mm Two-way (LC-DBIT3-CS)
Eaton
Selector switch, hastighetskontroll (T0-4-8441/E)
Eaton
MIV-5 Snapprail (MIV5)
Eaton
S.sk.terminal for CU20X5 (K20X15/50)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CU20X10-2250?
- CU20X10-2250 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is CU20X10-2250.
- What is the HS code for CU20X10-2250?
- The customs tariff (HS) code for CU20X10-2250 is 7407.10.
- Who manufactures CU20X10-2250?
- CU20X10-2250 is a Eaton product in the Electrical Components range.
- Is a datasheet available for CU20X10-2250?
- Yes — the CU20X10-2250 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CU20X10-2250?
- The minimum order quantity is 1.
- Is CU20X10-2250 available?
- Yes — CU20X10-2250 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
