Eaton

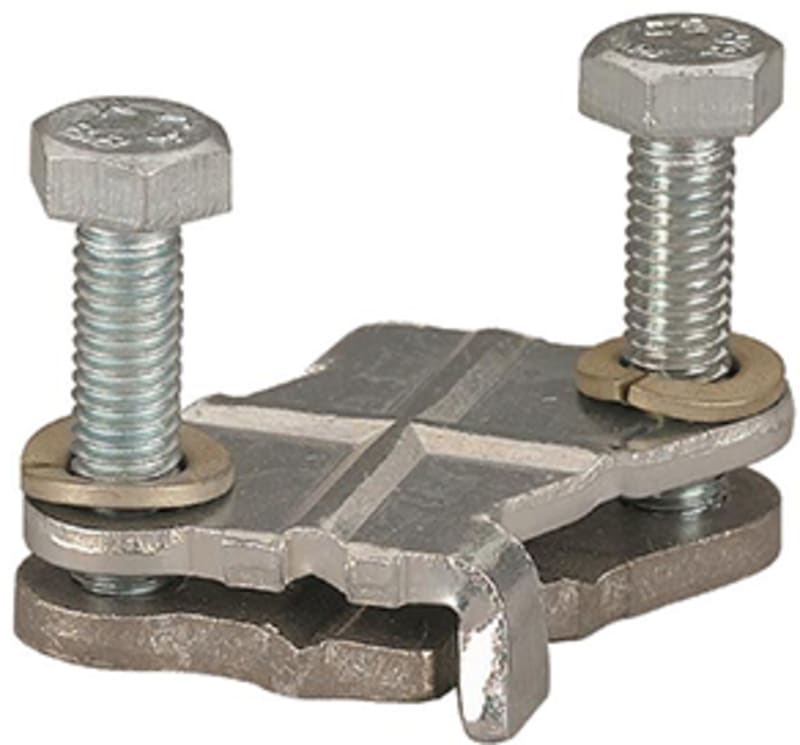

S.sk.terminal for CU20X5 (K20X15/50)
Part numberK20X15/50EAN / GTIN4015080023265HS code8538.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton S.sk.terminal for CU20X5 (K20X15/50) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 5 pcs; Eaton catalogue number: 002326; Depth: 60 mm; Height: 40 mm; Width: 40 mm.
Technical Specifications
- Manufacturer part number (MPN)
- K20X15/50
- EAN / GTIN
- 4015080023265
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 002326
- Depth
- 60 mm
- Height
- 40 mm
- Width
- 40 mm
- Weight
- 0.086 kg
- Compliances
- RoHS conform
- Functions
- Terminal for flat strip
- Suitable for
- Strip conductor connection; Flat rail; Round conductor connection
- Used with
- Cu 20 x 15 mm busbars; Ci insulated enclosure; Prepared enclosures; Accessory for busbar enclosures; Accessory panel building
- Accessory/spare part type
- Busbar terminals; Ultra-flat busbar terminals
- Type
- Accessory for busbar enclosures Accessory panel building Ci insulated enclosure Prepared enclosures
- Rated operation current (Ie)
- 630 A; 800 A
- Rated operational current
- 800 A
- Rated operational current (Ie) - max
- 800 A
- Busbar thickness - max
- 15 mm
- Busbar thickness - min
- 5 mm
- Busbar width - max
- 20 mm
- Busbar width - min
- 20 mm
- Conductor cross section - max
- 462 mm²
- Terminal capacity (flat strip)
- 2 segments of 21 mm x 1 mm (11x); 21 mm x 1 mm (11x)
- Terminal capacity (round conductor)
- 1.5 mm² - 10 mm²; 1.5 mm² - 6 mm²
- Width clamp
- 31 mm
- Max. conductor cross section
- 462 mm²
- Busbar thickness
- 5–15 mm
- Suitable for strip conductor connection
- Yes
- Suitable for round conductor connection
- Yes
- Suitable for sector conductor connection
- No
- Max. rated operation current Ie
- 800 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015080023265
- SAP 1000788202
- Code 81399551
Product Documentation
Document preview: S.sk.terminal for CU20x5 (K20X15/50) — Specification Data Sheet (OEM)
