Eaton

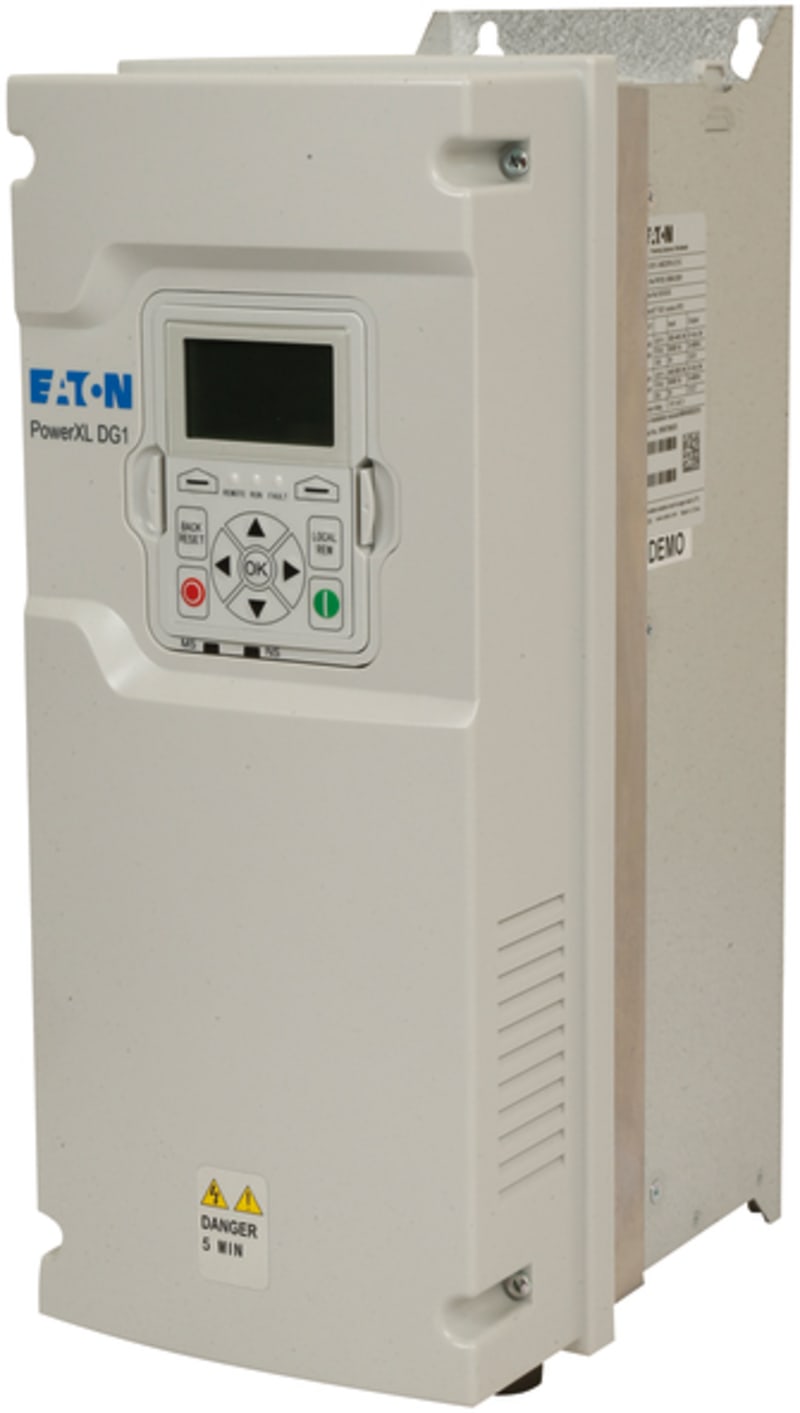

DG1 variable-frequency drive 230V: 3kW (DG1-32012FB-C54C)
Part numberDG1-32012FB-C54CEAN / GTIN4015081734191HS code8504.40
Drives & Controllers
Variable Frequency Drives
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton DG1 variable-frequency drive 230V: 3kW (DG1-32012FB-C54C) is listed under Drives & Controllers / Variable Frequency Drives. HS code: 8504.40; Sales unit: pcs; Power: 3 kW; Voltage: 230 V; Width: 169 mm; Height: 419 mm.
Technical Specifications
- Manufacturer part number (MPN)
- DG1-32012FB-C54C
- EAN / GTIN
- 4015081734191
- HS code
- 8504.40
- Sales unit
- pcs
- Power
- 3 kW
- Voltage
- 230 V
- Width
- 169 mm
- Height
- 419 mm
- Depth
- 244 mm
- Power consumption
- 163 W
- With control element
- Yes
- Number of digital inputs
- 8
- Number of digital outputs
- 1
- Number of analogue inputs
- 2
- Number of analogue outputs
- 2
- Supporting protocol for LON
- No
- Number of HW-interfaces industrial Ethernet
- 1
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- Yes
- Supporting protocol for CAN
- Yes
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- Yes
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Degree of protection (IP)
- IP54
- With PC connection
- Yes
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 208–240 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- Yes
- Number of interfaces PROFINET
- 1
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- Yes
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- Yes
- Max. output frequency
- 400 Hz
- Max. output at linear load at rated output voltage
- 6 kW
- Max. output at quadratic load at rated output voltage
- 4 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 10 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- Yes
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 240 V
- Nominal output current I2N
- 17.5 A
- Supporting protocol for BACnet
- Yes
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4015081734191
- SAP 1200123799
- Code 81987620
Product Documentation
Document preview: DG1 variable-frequency drive 230V: 3kW (DG1-32012FB-C54C) — Specification sheet
More from Eaton
Eaton

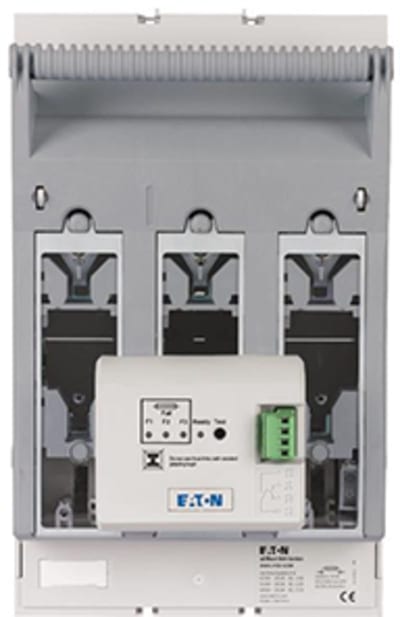

NH1 Switch-disconnector 3P 250 E
XNH1-FCE-A250
Eaton

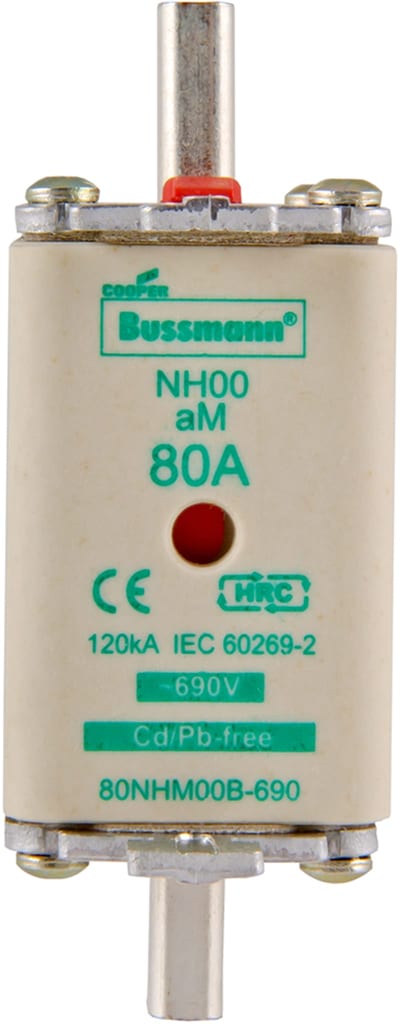

NH-00 690V aM 63A (63NHM00B-690)
Eaton
Nut M4 (EM4-CI)
Eaton

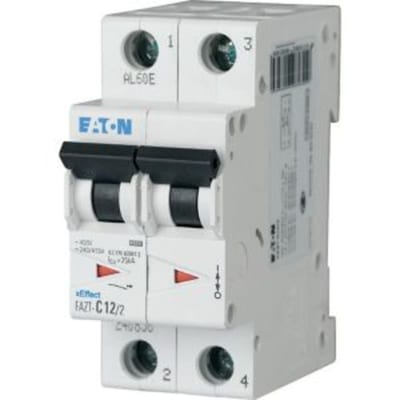

Eaton FAZT-D10/2 Miniature Circuit Breaker — 2P, Type D, 10 A, 25 kA
Eaton

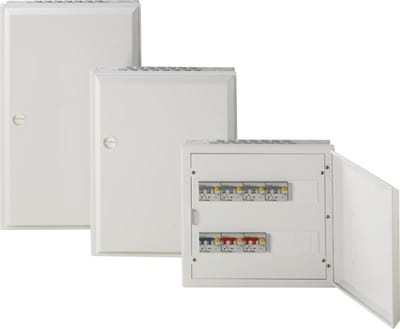

Base In-BOX 64POL 85mm DEEP
IU 64-3
Eaton

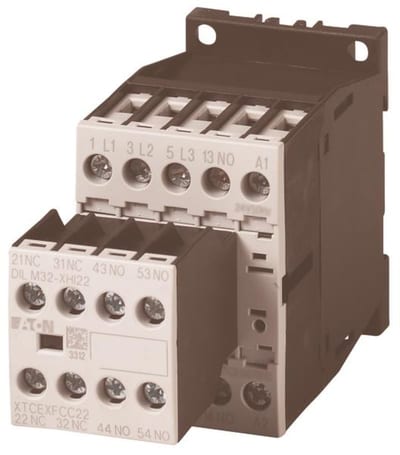

Contactor DILM12-32(230V50HZ,240V60HZ)
Eaton

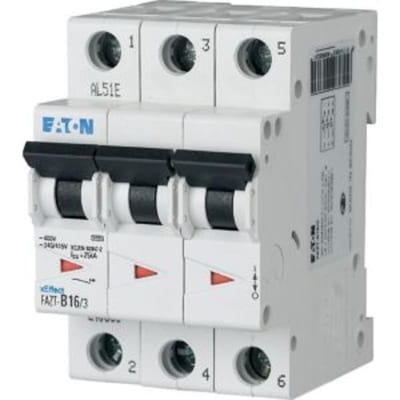

Eaton FAZT-B13/3 Miniature Circuit Breaker — 3P, Type B, 13 A, 25 kA
