Eaton

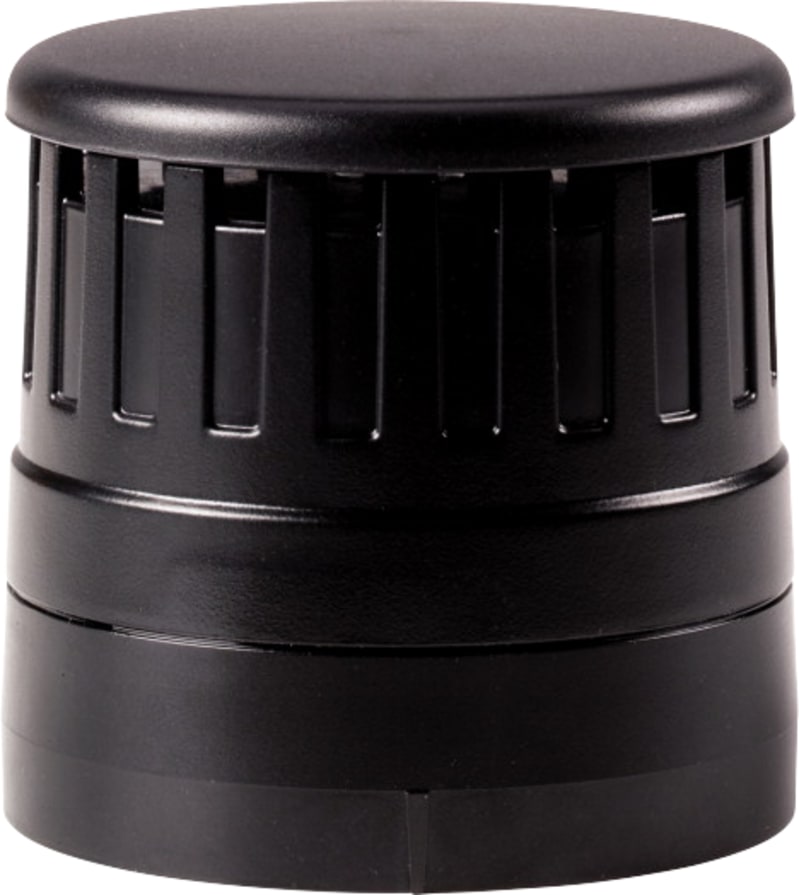

Akuplug,230V,Konst/Pulse (SL7-AP230-E)
Part numberSL7-AP230-EEAN / GTIN4015081678310HS code8531.80
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Akuplug,230V,Konst/Pulse (SL7-AP230-E) is listed in the cBallast industrial catalogue. HS code: 8531.80.
Technical Specifications
- Manufacturer part number (MPN)
- SL7-AP230-E EAN / GTIN: 4015081678310 Sales unit: pcs Eaton catalogue number: 171286 Depth: 73 mm Height: 71 mm Width: 73 mm Weight: 0.103 kg Certifications: IEC/EN 60947-5-1; Certified by UL for use in Canada; CSA Class No.: NKCR7; CSA-C22.2 No. 94-91; IEC/EN 60529; UL report applies to both US and Canada; CSA-C22.2 No. 14-10; CE; UL 508; UL File No.: E29184; UL; UL Category Control No.: NKCR Ambient operating temperature - max: 60 °C Ambient operating temperature - min: -30 °C Climatic proofing: Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78 Leakage current: 0.003 A Rated insulation voltage (Ui): 250 V Rated operational current (Ie) - max: 43 mA Rated operational voltage (Ue) at AC - max: 240 V Rated operational voltage (Ue) at AC - min: 230 V Color: Black Features: Sound pressure adjustable to a minimum of 88 dB Functions: Continuous tone/pulse tone Alarm type: 2 types of sound; Pulsed tone; Can be externally actuated; Continuous tone; Tone adjustable Connection to SmartWire-DT: No Current consumption: 0.043 A, at 230/240 V AC Degree of protection: NEMA 13; IP66 Frequency rating: 2800 Hz Loudness: Can be adjusted with built-in potentiometer; 100 dB material: Cap: Polycarbonate (PC); Enclosure: Polycarbonate (PC) Mounting position: Place only at the highest position on a pole; As required Overvoltage category: III Pollution degree: 3 Product Category: SL signal towers Radiation angle: 360 ° Rated impulse withstand voltage (Uimp): 4000 V AC Shock resistance: 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27 Type: Acoustic module Voltage type: AC Colour: Black Outer diameter: 73 mm Tone adjustable: Yes Operating voltage AC 50 Hz: 230–240 V Operating voltage AC 60 Hz: 230–240 V Country of origin: Austria
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081678310
- SAP 1000492321
- Code 8951772
Product Documentation
Document preview: Akuplug,230V,Konst/Puls (SL7-AP230-E) — Specification Data Sheet (OEM)
