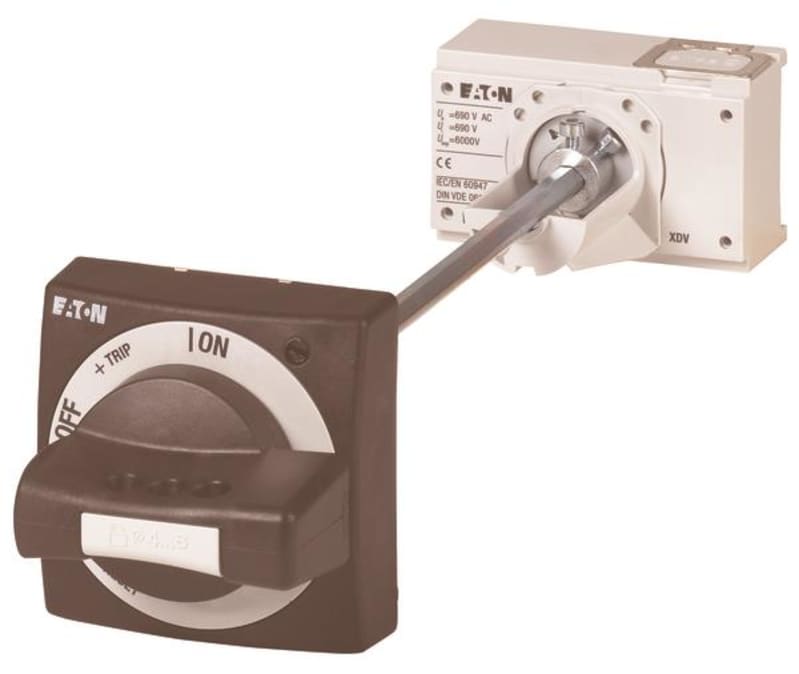

Eaton NZM1-XTVDV
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton NZM1-XTVDV is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 260172; Depth: 75 mm; Height: 190 mm; Width: 90 mm; Weight: 0.638 kg.
Technical Specifications
- Manufacturer part number (MPN)
- NZM1-XTVDV
- EAN / GTIN
- 4015082601720
- Sales unit
- pcs
- Eaton catalogue number
- 260172
- Depth
- 75 mm
- Height
- 190 mm
- Width
- 90 mm
- Weight
- 0.638 kg
- Compliances
- IEC; UL/CSA; RoHS conform
- Certifications
- CSA (File No. 22086); IEC60947; CE marking; UL listed; CSA-C22.2 No. 5-09; CSA certified; UL489; UL (File No. E140305); UL (Category Control Number DIHS); CSA (Class No. 1437-01)
- Features
- Lockable; Standard: black / gray
- Fitted with
- Padlock
- Frame
- NZM1
- Special features
- Door coupling rotary handle for operating the switch through a closed control panel door External warning plate/designation label can be clipped on. Complete including rotary drive and coupling parts Extension shaft additionally required.
- Suitable for
- Switch disconnector; Power circuit breaker
- Type
- Accessory Door coupling rotary handle
- Used with
- NZM1(-4), PN1(-4), N(S)1(-4)
- Color
- Black
- Cover/door type
- Door interlock not defeated in the locked OFF and ON positions; Door interlock can be modified in the unlocked ON position; Door can be opened in OFF; Door interlock can be modified such that it can be defeated from the outside using a screwdriver
- Degree of protection / NEMA enclosure type
- IP66; 4X. 12
- Lock number
- Double lockable
- Locking facility
- Modifiable on handle in I position as well; With door interlock; Lockable on the handle on the switch using up to 3 padlocks
- Colour
- Black
- Lockable
- Yes
- Padlock locking
- Yes
- Suitable for emergency stop
- No
- With extension shaft
- No
- With restart blockage
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- Yes
- Degree of protection (NEMA)
- 4X, 12
- With key lock
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082601720
- SAP 1000289118
- Code 895905
Product Documentation
More from Eaton
Eaton
Position Switch LS-02A
Eaton
Eaton NZM1-XTVDVR Red Lockable Door-Coupling Rotary Handle
Eaton
Eaton FAZ-B13/4 Miniature Circuit Breaker — 4P, Type B, 13 A, 15 kA
Eaton
Key switch, Flat Front (M30C-FWRS-MS4)
Eaton
Motor protection relay Z5-220/FF250
Eaton
Unit breaker 3 A 2P C DC
FAZ-C3/2-DC
Eaton
Area switch E53KAL30T111SD
Eaton
Installation Relay 20A 8V AC/DC 2NO
CR2020008
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NZM1-XTVDV?
- NZM1-XTVDV can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is NZM1-XTVDV.
- What is the HS code for NZM1-XTVDV?
- The customs tariff (HS) code for NZM1-XTVDV is 8538.90.
- Who manufactures NZM1-XTVDV?
- NZM1-XTVDV is a Eaton product in the Electrical Components range.
- Is a datasheet available for NZM1-XTVDV?
- Yes — the NZM1-XTVDV datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NZM1-XTVDV?
- The minimum order quantity is 1.
- Is NZM1-XTVDV available?
- Yes — NZM1-XTVDV is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
