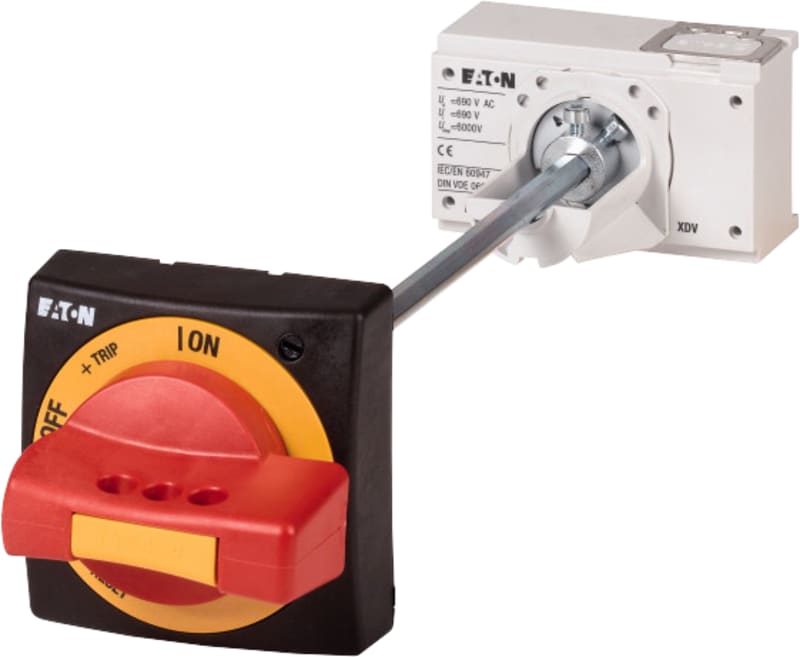

Eaton NZM1-XTVDVR Red Lockable Door-Coupling Rotary Handle
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZM1-XTVDVR red lockable door-coupling rotary handle for NZM1, PN1 and N(S)1 switch-disconnectors and circuit breakers. Enables emergency-stop operation through a closed panel door, IP66 / NEMA 4X, up to three padlocks. Extension shaft ordered separately.
Technical Specifications
- Manufacturer part number (MPN)
- NZM1-XTVDVR
- EAN / GTIN
- 4015082601782
- Sales unit
- pcs
- Eaton catalogue number
- 260178
- Depth
- 75 mm
- Height
- 190 mm
- Width
- 90 mm
- Weight
- 0.632 kg
- Compliances
- UL/CSA; IEC; RoHS conform
- Certifications
- UL489; CSA (Class No. 1437-01); UL (Category Control Number DIHS); CE marking; IEC60947; CSA-C22.2 No. 5-09; CSA certified; UL (File No. E140305); CSA (File No. 22086); UL listed
- Features
- Red-yellow for emergency switching off; Lockable
- Fitted with
- Padlock
- Frame
- NZM1
- Special features
- Door coupling rotary handle for operating the switch through a closed control panel door External warning plate/designation label can be clipped on. Complete including rotary drive and coupling parts Extension shaft additionally required.
- Suitable for
- Switch disconnector; Emergency stop; Power circuit breaker
- Type
- Accessory Door coupling rotary handle
- Used with
- NZM1(-4), PN1(-4), N(S)1(-4)
- Color
- Red
- Cover/door type
- Door interlock not defeated in the locked OFF position.; Door can be opened in OFF; Door interlock can be modified in the unlocked ON position; Door interlock can be modified such that it can be defeated from the outside using a screwdriver
- Degree of protection / NEMA enclosure type
- IP66; 4X. 12
- Lock number
- Double lockable
- Locking facility
- With door interlock; Lockable on the handle on the switch using up to 3 padlocks
- Colour
- Black
- Lockable
- Yes
- Padlock locking
- Yes
- Suitable for emergency stop
- Yes
- With extension shaft
- No
- With restart blockage
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- Yes
- Degree of protection (NEMA)
- 4X, 12
- With key lock
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082601782
- SAP 1000010125
- Code 880350
