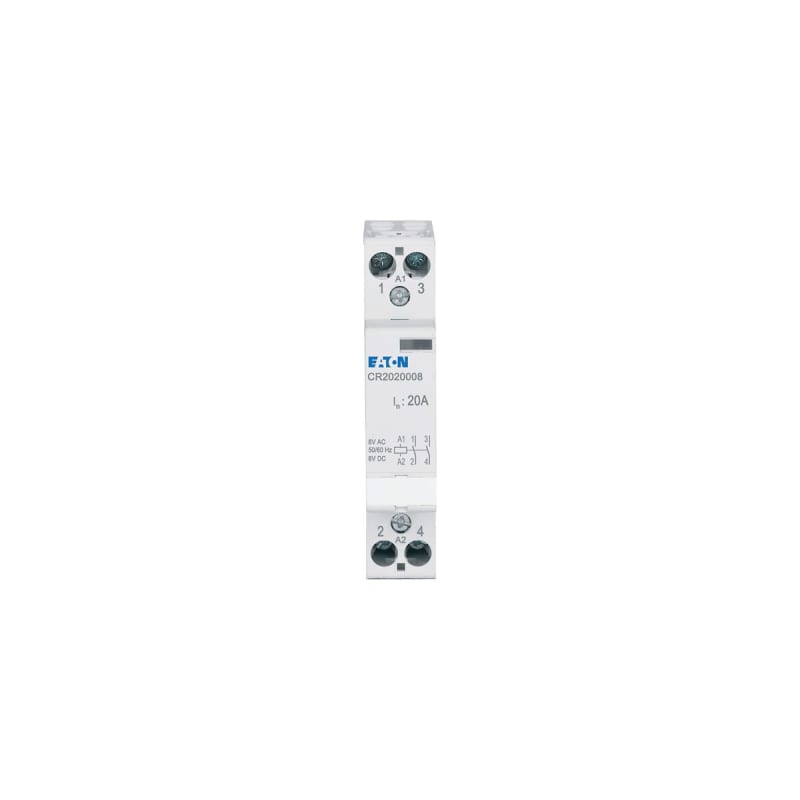

Installation Relay 20A 8V AC/DC 2NO
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Installation Relay 20A 8V AC/DC 2NO (part number CR2020008) is listed under Electrical Components / Contactors. Sales unit: pcs; Eaton catalogue number: 193908; Depth: 85 mm; Height: 65 mm; Width: 17.5 mm; Weight: 0.13 kg.
Technical Specifications
- Manufacturer part number (MPN)
- CR2020008
- EAN / GTIN
- 9010238040823
- Sales unit
- pcs
- Eaton catalogue number
- 193908
- Depth
- 85 mm
- Height
- 65 mm
- Width
- 17.5 mm
- Weight
- 0.13 kg
- Compliances
- RoHS conform
- Features
- Additional equipment possible
- Amperage Rating
- 20 A
- Equipment heat dissipation, current-dependent
- 2.1 W
- Heat dissipation per pole, current-dependent
- 1.7 W
- Rated operational current for specified heat dissipation (In)
- 20 A
- Incandescent lamp load - max
- 1950 W
- Load fluorescent lamp - max
- 910 VA
- Load fluorescent lamp (duo circuit) - max
- 1160 VA
- Load fluorescent lamp (parallel compensated) - max
- 232 VA
- Rated operating voltage (Ue) - max
- 400 V
- Rated operating voltage (Ue) - min
- 400 V
- Voltage rating (excitation) - max
- 8.8 V
- Voltage rating (excitation) - min
- 6.8 V
- Voltage type
- AC/DC
- Built-in depth
- 60 mm
- Degree of protection
- IP20
- Number of contacts (normally closed contacts)
- 0
- Number of contacts (normally open contacts)
- 2
- Number of modular spacings
- 1
- Utility category
- 1
- Utilization category (according to EN IEC 60947-4-1)
- AC-1
- Contact configuration
- 2 NO
- Utilization category according to EN IEC 60947-4-1
- AC-1
- Rated operating voltage
- 400 V
- Rated operation current
- 20 A
- Rated excitation voltage
- 6.8–8.8 V
- Number of contacts as normally open contact
- 2
- Max. incandescent lamp load
- 1950 W
- Max. load fluorescent lamp
- 910 VA
- Slider for hand switch
- No
- Width in number of modular spacings
- 1
- Additional equipment possible
- Yes
- With day/night function
- No
- Hum-free
- No
- Country of origin
- Slovenia
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 9010238040823
- SAP 1200803104
- Code 83978385
Product Documentation
More from Eaton
Eaton
Eaton DILMT12(RDC24) Contactor, 3-Pole, 5.5 kW, 24 V DC Coil
Eaton
Reversing starter EMS2-ROS-T-3-SWD
Eaton
Main switch,P1-40/M4/SVB-SW/N
Eaton
Eaton xVTL horizontal profile adapter kit 530 mm steel
XVTL-HP-6-MIB
Eaton
Position safety switch LS-S02-ZB
Eaton
Motor protection circuit breaker, trip block (PKE-XTUWACP-36)
Eaton
Emergency stopswitch, RMQ (M22-PVT60P)
Eaton
LED Steady light, Red, 120V (SL4-L120-R)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CR2020008?
- CR2020008 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is CR2020008.
- What is the HS code for CR2020008?
- The customs tariff (HS) code for CR2020008 is 8536.49.
- Who manufactures CR2020008?
- CR2020008 is a Eaton product in the Electrical Components range.
- Is a datasheet available for CR2020008?
- Yes — the CR2020008 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CR2020008?
- The minimum order quantity is 1.
- Is CR2020008 available?
- Yes — CR2020008 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
