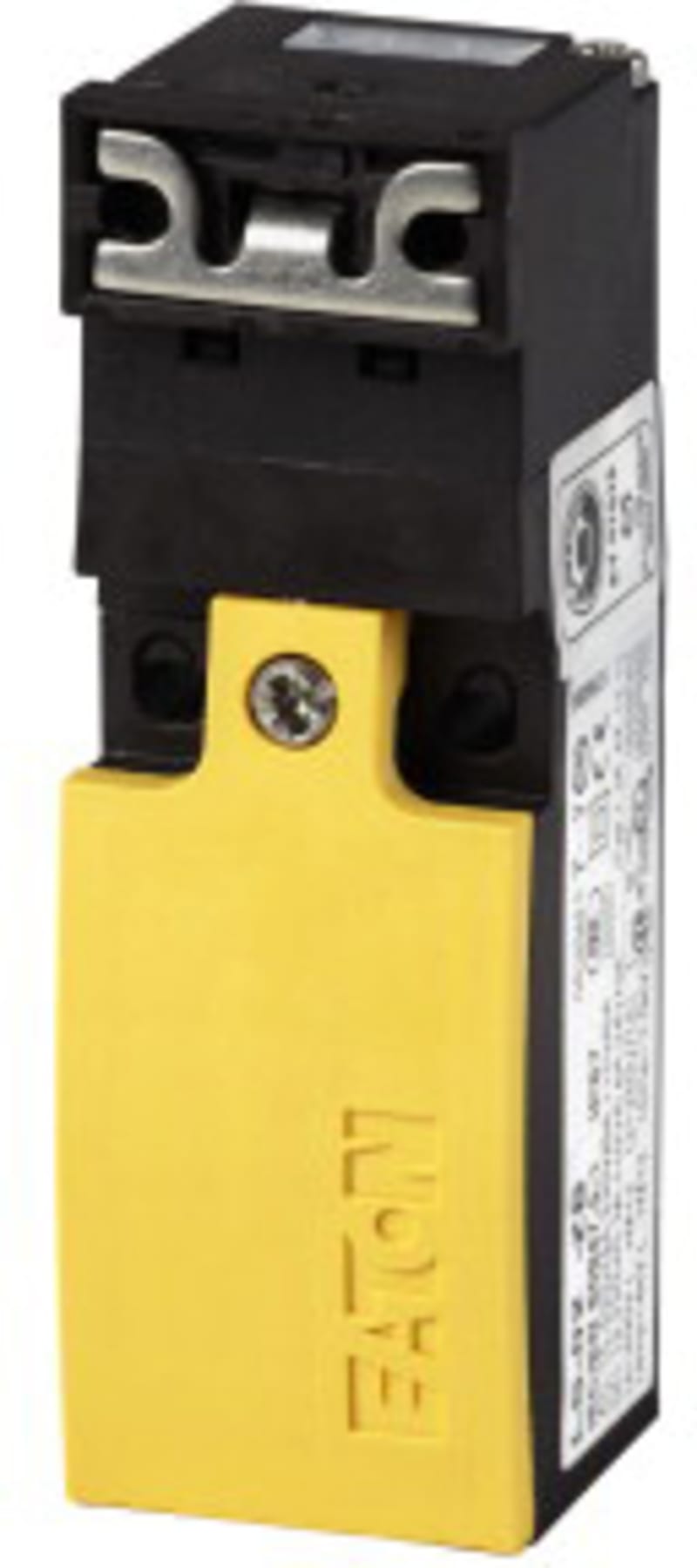

Position safety switch LS-S02-ZB

Eaton LS-S02-ZB Position safety switch, LS(4)…ZB, complete unit, 2 NC, screw connection.

Manufacturer part number (MPN)

LS-S02-ZB

EAN / GTIN

4015081066377

Sales unit

pcs

Package quantity

2 pcs

Eaton catalogue number

106874

Depth

30 mm

Height

95 mm

Width

30 mm

Weight

0.08 kg

Compliances

CE Marked

Certifications

EN 60947-5; IEC 60947-5; UL 508; CSA Std. C22.2 No. 14; CE; CSA Class No.: 3211-03; CSA; UL File No.: E29184; UL Category Control No.: NKCR; IEC/EN 60947-5; IEC/EN 60947; CSA File No.: 012528; CSA-C22.2 No. 14; UL

Actuating force at beginning/end of stroke

10 N/5 N (plug-in/pull-out)

Actuator type

Other

Mounting position

Vertical; Horizontal; As required

Shock resistance

25 g, Standard-action contact, Mechanical, Half-sinusoidal shock 20 ms

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

2

Number of contacts (normally open contacts)

0

Heat dissipation per pole, current-dependent Pvid

0.17 W

Rated operational current for specified heat dissipation (In)

6 A

Rated insulation voltage (Ui)

400 V

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

6 A

Rated operational current (Ie) at AC-15, 24 V

10 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

4 A

Rated operational current (Ie) at DC-13, 110 V

0.6 A

Rated operational current (Ie) at DC-13, 125 V

0.8 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.3 A

Rated operational current (Ie) at DC-13, 24 V

3 A

Short-circuit protection rating

Max. 6 A gG/gL, Fuse, Contacts

Supply frequency

Max. 400 Hz, Contacts

Rated conditional short-circuit current (Iq)

1 kA

Electric connection type

Cable entry metrical

Enclosure material

Plastic; Insulated material

Features

Forced opening

Material

Plastic housing

Switch function type

Slow-action switch

Connection type

Screw terminal

Degree of protection

IP66; NEMA Other

Lifespan

1,500,000 mechanical Operations

Operating frequency

1800 Operations/h

Overvoltage category

III

Pollution degree

3

Product category

Safety position switches

Rated impulse withstand voltage (Uimp)

4000 V AC

Repetition accuracy

0.15 mm (Contacts/switching capacity)

Suitable for

Safety functions

Type

Position switch Safety position switch

Explosion safety category for dust

None

Explosion safety category for gas

None

Screw size

PH1, Terminal screw

Terminal capacity (flexible with ferrule)

2 x (0.5 - 1.5) mm²; 1 x (0.5 - 1.5) mm²

Terminal capacity (solid)

2 x (0.5 - 1.5) mm²; 1 x (0.5 - 1.5) mm²

Tightening torque

0.4 Nm, Screw terminals

Switching function

Slow-action switch

Rated operation current Ie at AC-15, 230 V

6 A

Rated operation current Ie at DC-13, 230 V

0.3 A

Housing material

Plastic

Suitable for safety functions

Yes

With status indication

No

Type of interface for safety communication

None

Construction type housing

Cuboid

Forced opening

Yes

Number of safety auxiliary contacts

2

Type of interface

None

Output electronic

No

Rated operation current Ie at AC-15, 125 V

6 A

Rated operation current Ie at AC-15, 24 V

10 A

Rated operation current Ie at DC-13, 125 V

0.8 A

Rated operation current Ie at DC-13, 24 V

3 A

Width sensor

30 mm

Height of sensor

96 mm

Length of sensor

33.35 mm

Switching function latching

No

Ambient temperature during operating

25–70 °C

Number of contacts as normally closed contact

2

Country of origin

Germany

HS Code

8536.50
