Eaton

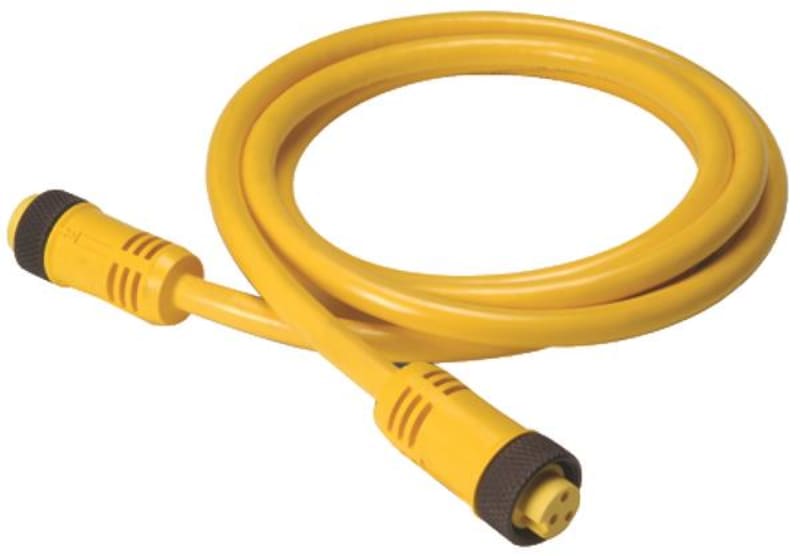

Eaton Connecting Cable, 4-Pole, DC, M12 Straight Coupling to Straight Plug, 5 m
Part numberCSDS4A4CY2205-DEAN / GTIN4015081330836HS code8544.49
Cables & Wiring
Sensor Cables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton CSDS4A4CY2205-D Connection Cable, 4p, DC current, connection M12 flat, plug M12 flat, L=5m.
Technical Specifications
- Manufacturer part number (MPN)
- CSDS4A4CY2205-D
- EAN / GTIN
- 4015081330836
- Sales unit
- pcs
- Eaton catalogue number
- 136295
- Depth
- 190.5 mm
- Height
- 38.1 mm
- Width
- 190.5 mm
- Weight
- 0.52 kg
- Certifications
- CE
- Type
- Connecting cables
- Number of poles
- Four-pole
- Cable type
- Multi-core; Plug, straight, Output side; Coupling, straight, Input side
- Contact surface material
- Other
- Product category
- Accessories
- Voltage type
- DC
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Cable length
- 5 m
- Cable sheath material
- Other
- Degree of protection
- Other
- Color cable sheath
- Yellow
- Electrical connection type (box-sided)
- M12
- Electrical connection type (field-sided)
- M12
- Contact body material
- Other
- Permitted temperature of outer cable (assembling/handling) - max
- 70 °C
- Permitted temperature of outer cable (assembling/handling) - min
- 40 °C
- Plug-in contact type (box-sided)
- Male (plug)
- Plug-in contact type (field-sided)
- Female (bus)
- Positioning cable feed (box-sided)
- Straight
- Positioning cable feed (field-sided)
- Straight
- Type of plug-in contact, box-sided
- Male (plug)
- Halogen free
- No
- Screened
- No
- Permitted cable outer temperature during assembling/handling
- 40–70 °C
- Vulcanized
- No
- Type of electrical connection, box-sided
- M12
- Type of electrical connection, field-sided
- M12
- Positioning cable feed, box-sided
- Straight
- Positioning cable feed, field-sided
- Straight
- With LED indication
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 4015081330836
- SAP 1200303949
- Code 82279941
