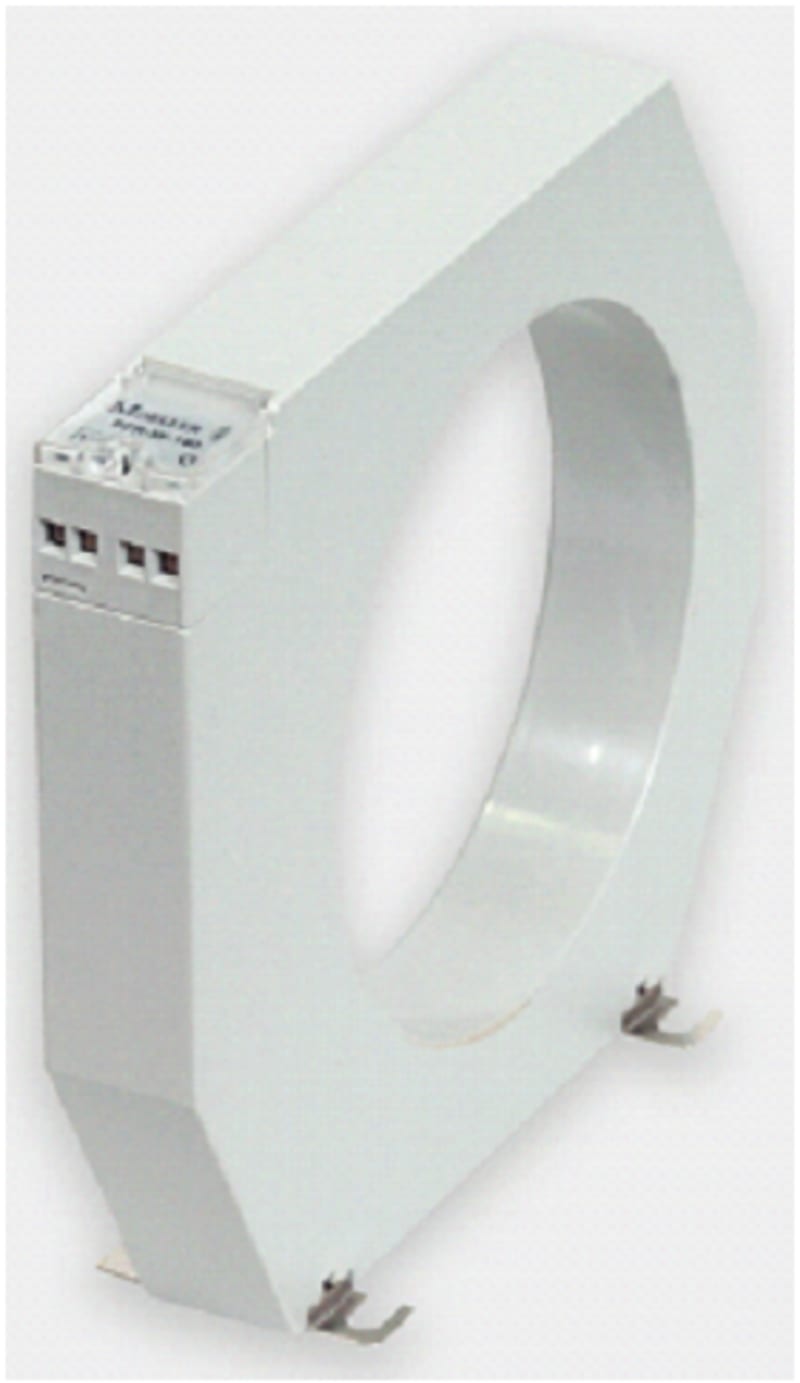

Eaton PFR-W-70 Summation Current Transformer 70 mm for PFR-5 Earth-Fault Relay
Pricing
Request a quote
We reply within 24 hours
Product Description
The Eaton PFR-W-70 is a summation current transformer with a 70 mm through-opening, intended to work with the PFR-5 earth-fault relay for residual-current protection on NZM1-4 circuit breakers. It carries a nominal primary current of 400 A and delivers a 5 A secondary suited to the relay input, rated for 690 V AC 50/60 Hz systems. Typical installations include distribution boards where sensitive residual-current detection is required together with a moulded-case circuit breaker.
Technical Specifications
- Manufacturer part number (MPN)
- PFR-W-70
- EAN / GTIN
- 4015082856014
- Sales unit
- pcs
- Eaton catalogue number
- 285601
- Depth
- 125 mm
- Height
- 45 mm
- Width
- 144 mm
- Weight
- 0.204 kg
- Compliances
- RoHS conform
- Certifications
- IEC
- Frame
- NZM1/2/3/4
- Nominal current
- 400 A
- Special features
- In combination with PFR residual current relaynot UL/CSA approved
- Type
- AccessoryEarth-fault releases, transformerVoltage release
- Current rating of relay contact
- 5 A
- Voltage rating
- 690 V AC 50/60 Hz
- Voltage rating of relay contact
- 690 V (50/60 Hz)
- Mounting Method
- Incl. fixing clip for DIN-rail mounting
- Transformer opening diameter
- 70 mm
- Delay adjustable
- No
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8536.41
Cross References
- EAN 4015082856014
- SAP 1000005299
- Code 829074
Product Documentation
More from Eaton
Eaton
Contactor DILM12-10(24VDC)-PI
Eaton

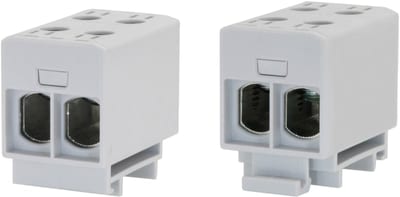

Terminal block 2X50 mm² grey
BPZ-KC-2/50-ALU
Eaton
Eaton Direct Online Starter (DOL), Screw Connection (101046)
Eaton

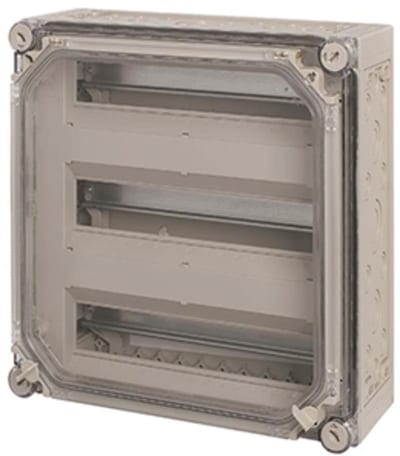

MCB enclosure + door (AE/I44E/T)
Eaton

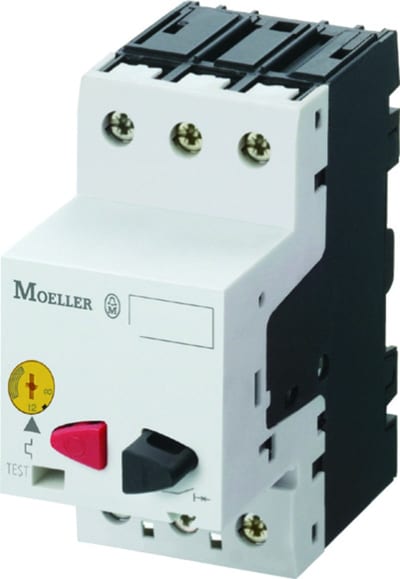

Motor Protectionbr Trykkbr IKMAX50KA (PKZM01-0,4)
Eaton

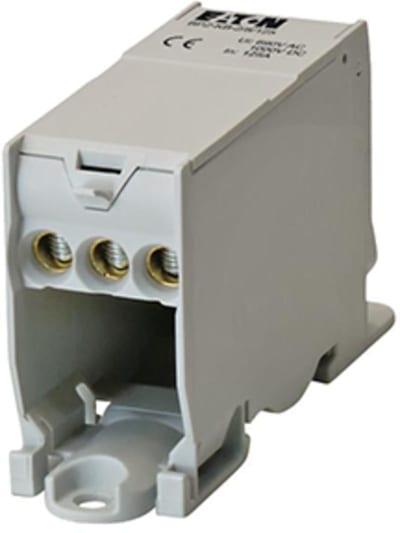

Terminal 1-Pole 125A
BPZ-KB-2/8/125
Eaton

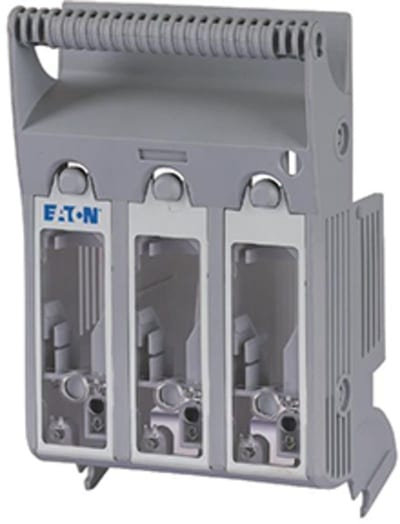

NH00 Cover Replacement XNH2015 (XNH00-XGRIP)
Eaton

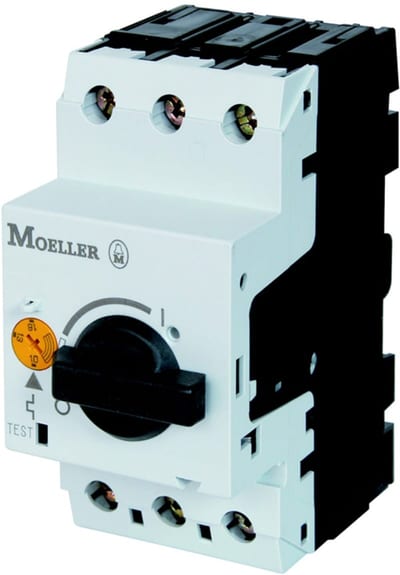

Motor Protection Circuit Breaker 0,16-0,25A
