Eaton

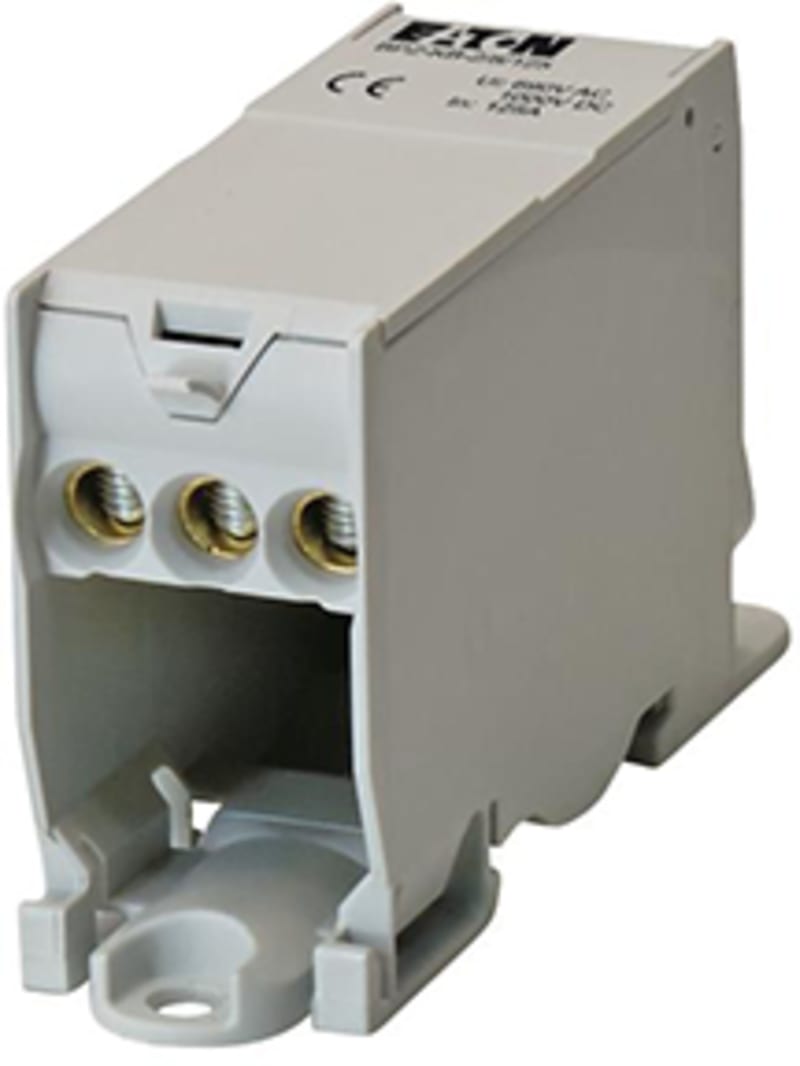

Terminal 1-Pole 125A
Part numberBPZ-KB-2/8/125EAN / GTIN4015081737017HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Terminal 1-Pole 125A (part number BPZ-KB-2/8/125) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 178398; Depth: 51.2 mm; Height: 91 mm; Width: 27 mm.
Technical Specifications
- Manufacturer part number (MPN)
- BPZ-KB-2/8/125
- EAN / GTIN
- 4015081737017
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 178398
- Depth
- 51.2 mm
- Height
- 91 mm
- Width
- 27 mm
- Weight
- 0.137 kg
- Compliances
- RoHS conform
- Certifications
- IEC 60 947 -7 -1
- Comparative tracking index (CTI)
- 600 V
- Flame classification (UL 94)
- V-0
- Functions
- Additional equipment
- Special features
- Clicks on DIN-rail or on base plate. Save time on wiring. Save 80% on space used. Modular construction, 1-4 pole Systems can be built with several blocks. Material, hexagon socket set screw: Steel Zinc plated (Hexagon socket set screw, Surface finish)
- Amperage rating
- 125 A
- Number of poles
- Single-pole
- Heat deflection temperature
- 100 °C
- Rated operation current (Ie) Cu (IEC)
- 125 A
- Rated peak withstand current
- 25 kA
- Rated short-time withstand current (Icw)
- 4.2 kA
- Voltage rating at AC Cu (IEC) - max
- 690 VAC
- Voltage rating at DC Cu (IEC) - max
- 1000 VDC
- Clamp material
- Plain; Brass
- Conductor cross section (solid, solid-strand) - max
- 35 mm²
- Conductor cross section (solid, solid-strand) - min
- 1.5 mm²
- Housing color
- Light gray (RAL 7035)
- Housing material
- PA66
- Mounting method
- Floor standing distribution board; Flush mounting; Surface mounting
- Mounting position
- Universal
- Number of clamp positions per pole
- 10
- Number of clamping units per pole
- 10
- Terminal capacity (single/multi-wire)
- 1.5 mm² - 16 mm² (incoming, fine wire (with sleeve)); 10 mm² - 35 mm² (incoming); 1.5 mm² - 10 mm² (outgoing, fine wire (with sleeve)); 6 mm² - 25 mm² (incoming, fine wire (with sleeve)); 1.5 mm² - 16 mm² (outgoing); 2.5 mm² - 25 mm² (incoming)
- Degree of protection
- IP20
- Torque rating
- 2 Nm / 8 Nm (incoming). 2 Nm (outgoing)
- Conductor cross section solid (solid, stranded)
- 1.5–35 mm²
- Max. rated current
- 125 A
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081737017
- SAP 1200562693
- Code 82906004
Product Documentation
Document preview: Terminal 1-pole 125A (BPZ-KB-2/8/125) — Specification Data Sheet (OEM)
