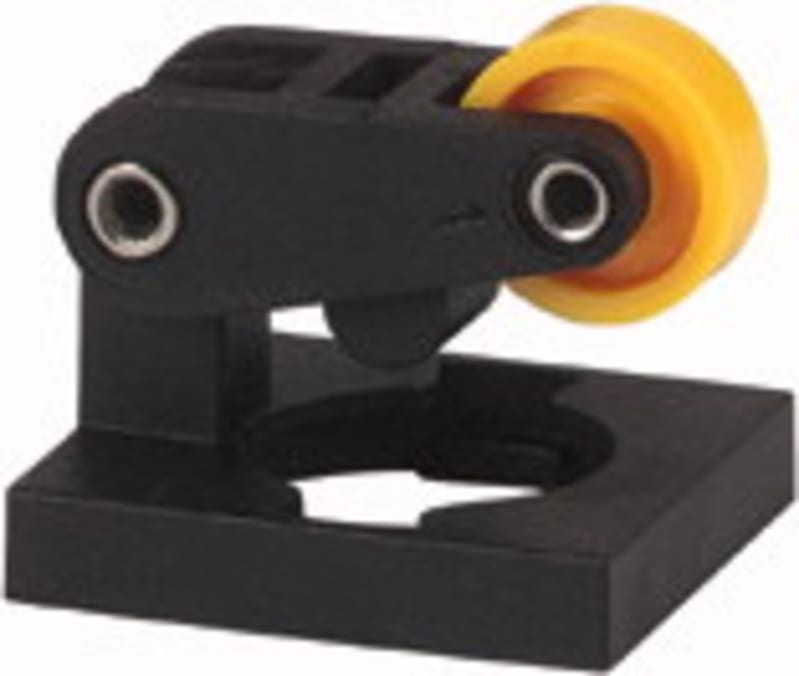

ARM with Roll FOR Limit Switch LS
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton ARM with Roll FOR Limit Switch LS (part number LS-XL) is listed under Sensors & Instrumentation / Position Switches. HS code: 8536.90; Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 266123; Depth: 25 mm; Height: 25 mm.
Technical Specifications
- Manufacturer part number (MPN)
- LS-XL
- EAN / GTIN
- 4015082661236
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 266123
- Depth
- 25 mm
- Height
- 25 mm
- Width
- 28 mm
- Weight
- 0.005 kg
- Compliances
- CE Marked
- Certifications
- UL 508; IEC 60947-5; EN 60947-5; CSA Std. C22.2 No. 14; UL Category Control No.: NKCR; UL; IEC/EN 60947-5; CSA; CSA Class No.: 3211-03; CSA File No.: 012528; CE; CSA-C22.2 No. 14; UL File No.: E29184
- Catalog Notes
- Long
- Actuator type
- Roller lever
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -40 °C
- Equipment heat dissipation, current-dependent Pvid
- 0 W
- Heat dissipation capacity Pdiss
- 0 W
- Heat dissipation per pole, current-dependent Pvid
- 0 W
- Rated operational current for specified heat dissipation (In)
- 0 A
- Static heat dissipation, non-current-dependent Pvs
- 0 W
- Design
- EN 50047 Form E
- Features
- The operating head can be rotated 90° to enable adaptation to the specified approach direction
- Product category
- Roller lever
- Type
- Operating heads
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015082661236
- SAP 1000080729
- Code 8779023
Product Documentation
More from Eaton
Eaton
DIL ER-22 220-240 ST.KONT (DILER-22(230V50HZ,240V60HZ))
Eaton
Door whole G2 OvU 4-Row 106 - 150 mm
EP-501170
Eaton
Residual current circuit breaker with overcurrent 20A 3P C 100MAA (PKPM3-20/3/C/01-LI/A)
PKPM3-20/3/C/01-Li/A
Eaton
Eaton FAZ-C1/1 Miniature Circuit Breaker — 1P, Type C, 1 A, 15 kA
Eaton
Eaton NZM2-4-XKV2PK
NZM2-4-XKV1P
Eaton
Cylindrical Fuse 22X58MM, 25A
C22M25
Eaton
Eaton NZM1-XHB
Eaton

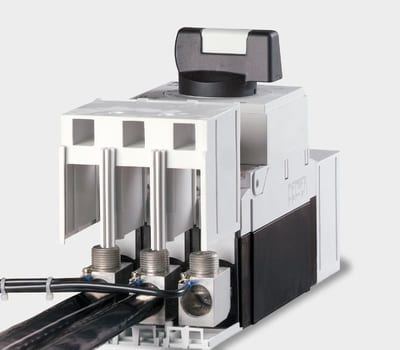

NZM3-XKA1 (271459)
