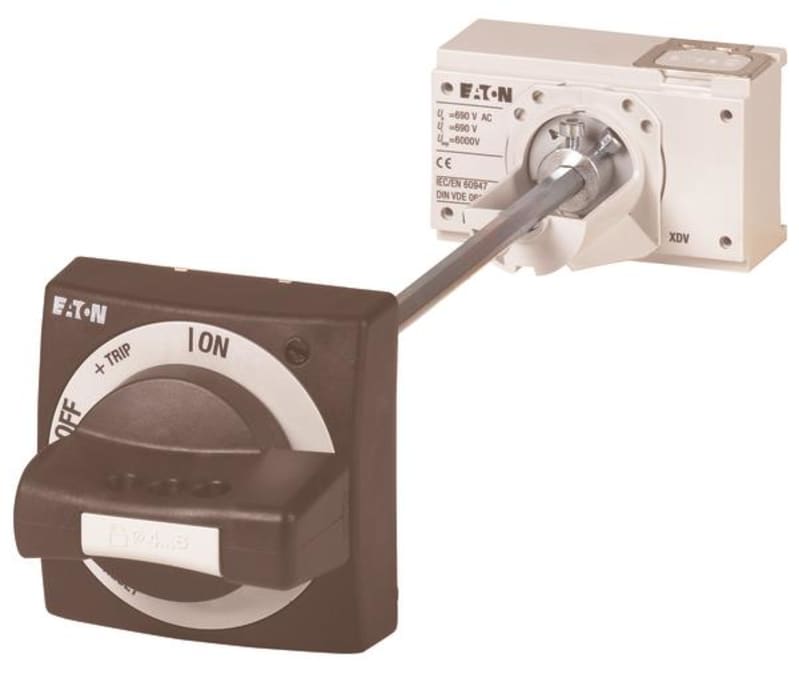

Eaton NZM1-XHB

Eaton NZM1-XHB is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 266626; Depth: 190 mm; Height: 90 mm; Width: 90 mm; Weight: 0.742 kg.

Manufacturer part number (MPN)

NZM1-XHB

EAN / GTIN

4015082666262

Sales unit

pcs

Eaton catalogue number

266626

Depth

190 mm

Height

90 mm

Width

90 mm

Weight

0.742 kg

Compliances

IEC; UL/CSA; RoHS conform

Certifications

IEC60947; UL listed; CSA-C22.2 No. 5-09; CSA (File No. 22086); UL (Category Control Number DIHS); CSA (Class No. 1437-01); CE marking; UL489; UL (File No. E140305); CSA certified

Features

Lockable; With black door coupling rotary handle

Fitted with

External warning plate/marking plate in German/English; Black and yellow lightning symbol; Door coupling rotary handle with rotary drive; Extension shaft; NZM...-XV4 extension shaft; Padlock

Frame

NZM1

Special features

External warning plate/designation label can be clipped on. For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger. Kit for use as a main switch

Suitable for

Switch disconnector; Power circuit breaker

Type

Main switch assembly kit

Used with

N(S)1(-4); PN1(-4); NZM1(-4)

Color

Black

Degree of protection / NEMA enclosure type

IP66; 4X. 12

Locking facility

Lockable on the 0 position on the handle using up to 3 padlocks; With door interlock; Can also be modified in I position

Colour

Black

Lockable

Yes

Padlock locking

Yes

Suitable for emergency stop

No

With extension shaft

Yes

With restart blockage

No

Suitable for power circuit breaker

Yes

Suitable for switch disconnector

Yes

Degree of protection (NEMA)

4X, 12

With key lock

No

Country of origin

Germany

HS Code

8538.90

• EAN 4015082666262
• SAP 1000289322
• Code 849860
