Eaton
AFDD-13/2/B/003-F-OL (MB-300185)
Part numberMB-300185EAN / GTIN9010238802261HS code8536.20
Electrical Components
RCDs & RCBOs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

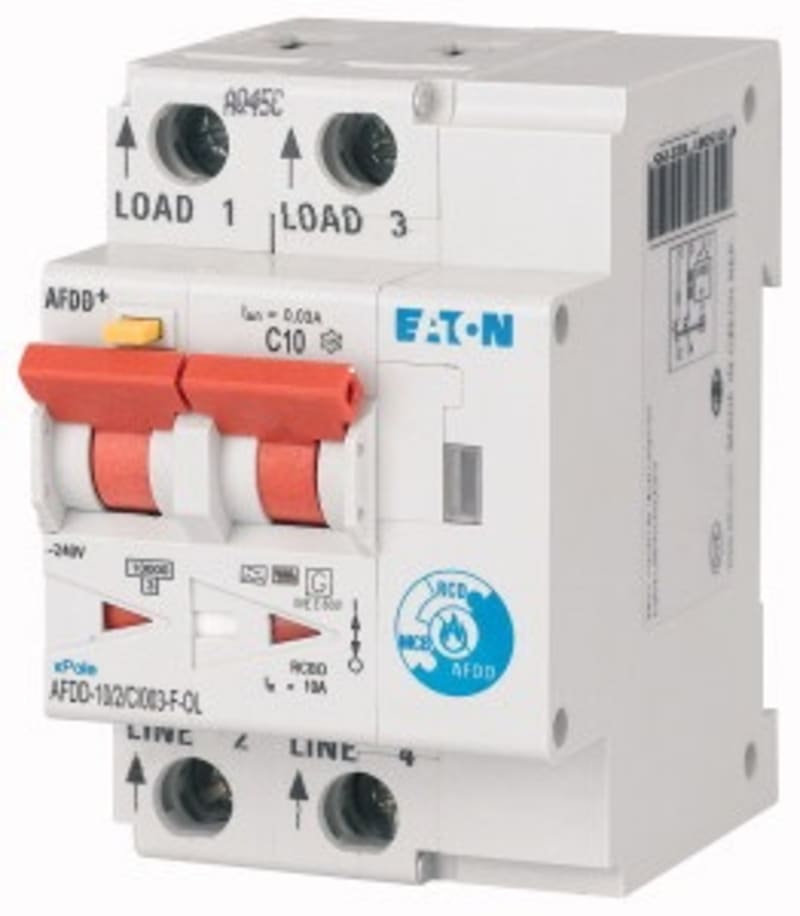

Eaton MB-300185 AFDD-13/2/B/003-F-OL.
Technical Specifications
- Manufacturer part number (MPN)
- MB-300185
- EAN / GTIN
- 9010238802261
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Number of poles
- 2
- Rated voltage
- 230 V
- Rated current
- 13 A
- Rated fault current
- 0.03 A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Frequency
- 50 Hz
- Release characteristic
- B
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 3
- Pollution degree
- 2
- Width in number of modular spacings
- 3
- Built-in depth
- 67 mm
- Control voltage type auxiliary equipment
- AC/DC
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail
- Voltage type
- AC
- Rated insulation voltage Ui
- 440 V
- Surge current capacity
- 3 kA
- Power loss
- 6 W
- Number of protected poles
- 2
- Connectable conductor cross section solid-core
- 1–25 mm²
- Connectable conductor cross section multi-wired
- 1–25 mm²
- With interlocking device
- No
- Ambient temperature during operating
- -25–40 °C
- Anti-nuisance tripping version
- No
- Rated impulse withstand voltage Uimp
- 4 kV
- Disconnection characteristic
- Short-time delayed
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 9010238802261
- SAP 1200625359
- Code 83032662
Product Documentation
Document preview: AFDD-13/2/B/003-F-OL (MB-300185) — Specification sheet
More from Eaton
Eaton
ARM with Roll FOR Limit Switch LS
LS-XL
Eaton
DIL ER-22 220-240 ST.KONT (DILER-22(230V50HZ,240V60HZ))
Eaton
Door whole G2 OvU 4-Row 106 - 150 mm
EP-501170
Eaton
Residual current circuit breaker with overcurrent 20A 3P C 100MAA (PKPM3-20/3/C/01-LI/A)
PKPM3-20/3/C/01-Li/A
Eaton
Eaton FAZ-C1/1 Miniature Circuit Breaker — 1P, Type C, 1 A, 15 kA
Eaton

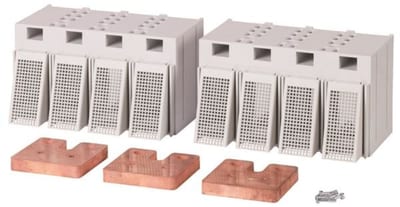

Eaton NZM2-4-XKV2PK
NZM2-4-XKV1P
Eaton

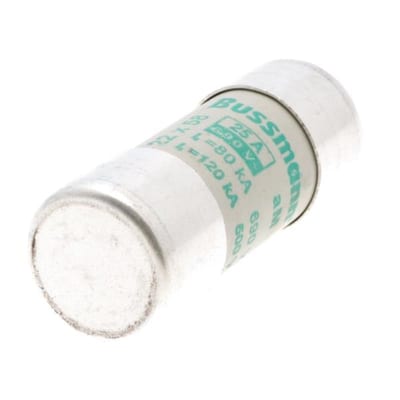

Cylindrical Fuse 22X58MM, 25A
C22M25
Eaton

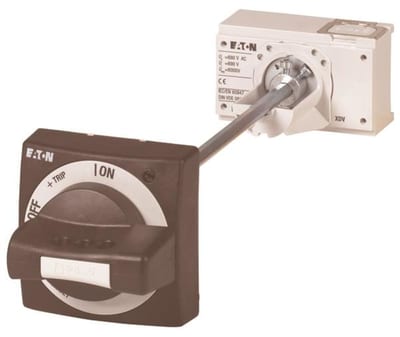

Eaton NZM1-XHB
