Eaton

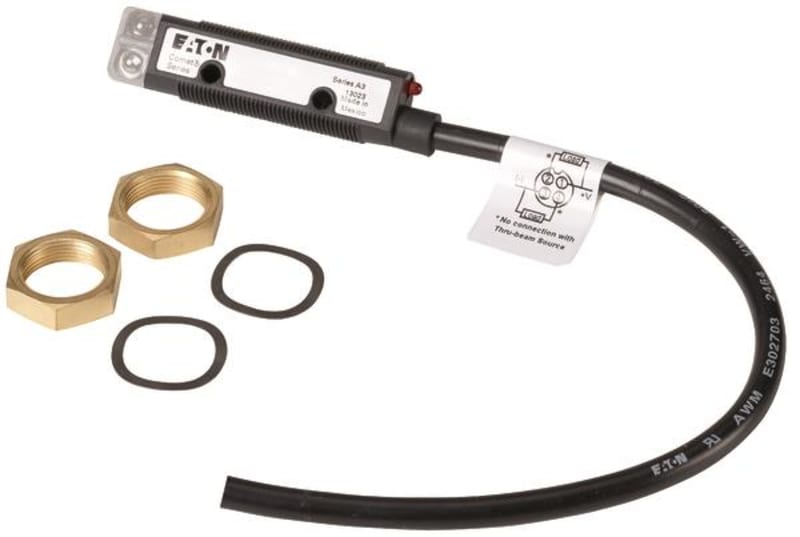

Photoelectric Sensor 12102AQD07
Part number12102AQD07EAN / GTIN4015081323708HS code8536.90
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 12102AQD07 photoelectric sensor.
Technical Specifications
- Manufacturer part number (MPN)
- 12102AQD07
- EAN / GTIN
- 4015081323708
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 135577
- Depth
- 158.75 mm
- Height
- 50.8 mm
- Width
- 133.35 mm
- Weight
- 0.32 kg
- Certifications
- CE; CSA File No.: 50513; UL 508; CSA Class No.: 3211-07; IEC/EN 60947-5-2; UL; UL Category Control No.: NRKH
- NRKH7; CSA; CSA-C22.2 No. 14; UL File No.
- E117028
- Type
- Optical sensors
- Features
- Straight beam
- Device type
- Receiver
- Electric connection type
- Connector M12
- Enclosure material
- Plastic
- Enclosure type
- Cylinder, screw-thread
- Operating mode
- Switching principle: Adjustable bright/dark switching
- Explosion safety category for dust
- None
- Explosion safety category for gas
- None
- Functions
- Detector (for combination with source); Thru-light beam; Short-circuit protection; Protection against polarity reversal
- Voltage type
- DC
- Wire size
- 0
- Connection type
- Plug-in connection M12 x 1; 4-wire
- Cable sheath material
- Polyurethane (PUR)
- Light type
- Polarity free red light
- Degree of protection
- NEMA 4; IP67
- Interface type
- Other
- LED indicator
- Status indication of Switching state: Red LED
- Switch function type
- Programmable/configurable
- Load current
- Max. 250 mA (Ie, NPN, 120 > 50°C); Max. 100 mA (Ie, PNP)
- Laser protection class
- None
- Operation agent-safety class
- Safety class 2
- Shock resistance
- 100 g, Mechanical, Shock duration 3 ms
- Optical surface material
- Plastic
- Output current (mA) - max
- 100 mA
- Rated control supply voltage (Us) at DC - max
- 30 V
- Rated control supply voltage (Us) at DC - min
- 10 V
- Rated switching distance (Sn)
- 24000 mm
- Sensor length
- 70 mm
- Switching distance - max
- 24000 mm
- Voltage rating - max
- 30 V
- Safety type (IEC 61496-1)
- 1
- Switching frequency
- 142 Hz
- Sensing mode
- Light-/dark switching
- Switching output type
- PNP
- Sensor material
- Insulated material
- Product category
- Comet Series
- Response time
- 7 ms
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -20 °C
- Diameter sensor
- 18 mm
- Number of contact energized outputs with signalling function
- 0
- Number of outputs (protected contact energized)
- 0
- Number of outputs (protected semiconductor)
- 0
- Number of outputs (semiconductor with signaling function)
- 0
- Operational current (Ib) in the switched state at 24 V DC
- 30 A
- Adjustment type
- Manual adjustment
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081323708
- SAP 1200606833
- Code 82994649
Product Documentation
Document preview: Fotoelektrisk sensor, — Specification Data Sheet (OEM)
