Eaton

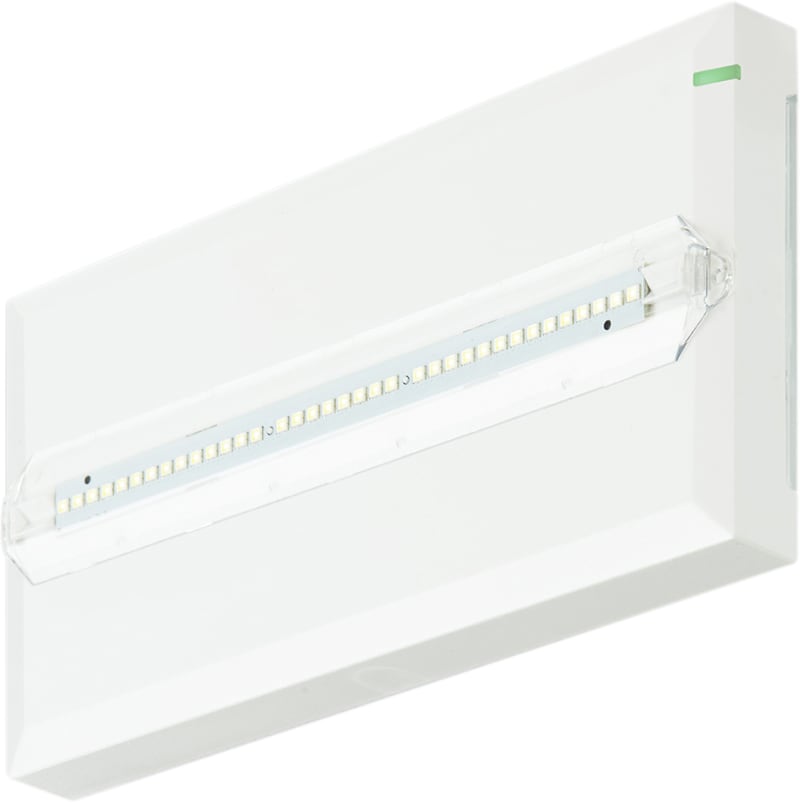

FlexiTech SE guide light 300LM CGLine+ IP65
Part numberFT Escape 300lm CGL+, 1-3H, IPEAN / GTIN3660191806767HS code9405.41
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton FT Escape 300lm CGL+, 1-3H, IP FlexiTech SE guide light 300lm CGLine+ IP65.
Technical Specifications
- Manufacturer part number (MPN)
- FT Escape 300lm CGL+, 1-3H, IP
- EAN / GTIN
- 3660191806767
- Sales unit
- pcs
- Package quantity
- 14 pcs
- IP rating
- IP65
- Suitable for continuous circuit
- No
- Suitable for standby switching
- No
- Mounting method
- Ceiling surface mounting
- Function
- Escape route lighting
- With pictogram
- No
- Monitoring equipment
- Safety module for monitoring (central feeded system)
- Wiring system
- Continuous circuit/emergency circuit
- With remote switch connection
- Yes
- With remote control
- No
- Power supply system
- Peripheral (individual battery)
- Battery technology
- Lithium-ion
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Number of lighting heads
- 36
- Housing material
- Plastic
- Housing colour
- White
- Material cover
- Plastic, transparent
- Voltage type
- AC
- Nominal voltage
- 230 V
- Type of control gear
- Not required
- Exchangeable control gear
- No
- Light distributor
- Focal lens
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Luminous flux in emergency mode
- 300 lm
- Rated lifetime L70/B50 at 25 °C
- 100000 h
- Constant light output (CLO)
- No
- Degree of protection (IP)
- IP65
- Impact strength
- IK07
- Protection class according to IEC 61140
- II
- Rated ambient temperature according to IEC 62722-2-1
- 5–35 °C
- Max. system power
- 2 W
- Rated luminous flux according to IEC 62722-2-1
- 300 lm
- Luminous flux in standby mode
- 100 lm
- Colour temperature
- 6500 K
- Power factor
- 0.4
- Nominal operation time
- 1–3 h
- Width
- 120 mm
- Height/depth
- 31.2 mm
- Length
- 228 mm
- Built-in width
- 128.6 mm
- Built-in height/depth
- 28.6 mm
- Built-in length
- 242.5 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 3
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- RAL-number housing
- 9003
- Connectable conductor cross section
- 0.5–2.5 mm²
- Emergency power supply system
- Peripheral (individual battery)
- Power consumption in emergency mode
- 2 W
- Emergency function monitoring system
- Automatic self test
- With heating element for battery
- No
- Type of lithium-ion battery
- Lithium iron phosphate (LiFePO4)
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 9405.41
Cross References
- EAN 3660191806767
- SAP 1200607741
- Code 82998009
Product Documentation
Document preview: FlexiTech SE guide light 300LM CGLine+ IP65 (FT Escape 300LM CGL+, 1-3H, IP) — Specification sheet
More from Eaton
Eaton
Eaton FRCMM-25/4/03-A (170341)
Eaton
FlexiTech SE guide light 300LM AT IP65
FT Escape 300lm AT MNM Tel, 1-3H, IP
Eaton
10 A BRYTEAKT. with INPUT AND EMS
CSAU-01/01-101E
Eaton

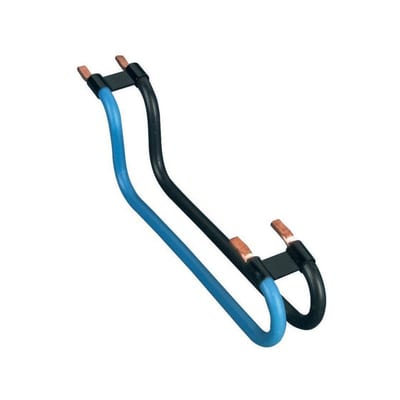

Jumper link/series connection 1-phase 125mm
215610
Eaton

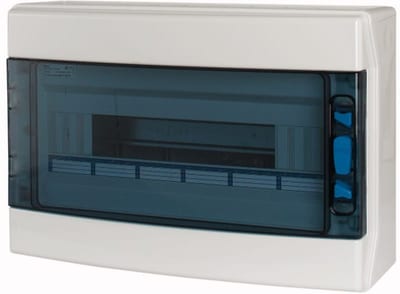

Enclosure IP65 1-Row 18 MOD. (IKA-1/18-ST)
Eaton

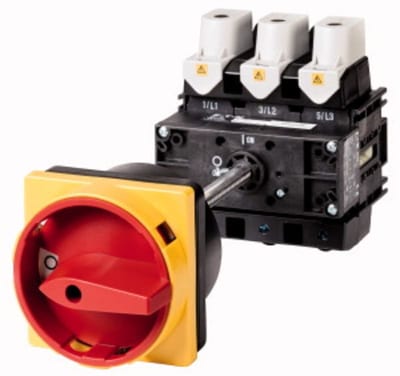

Safety Switch (P5-250/V/SVB/N)
