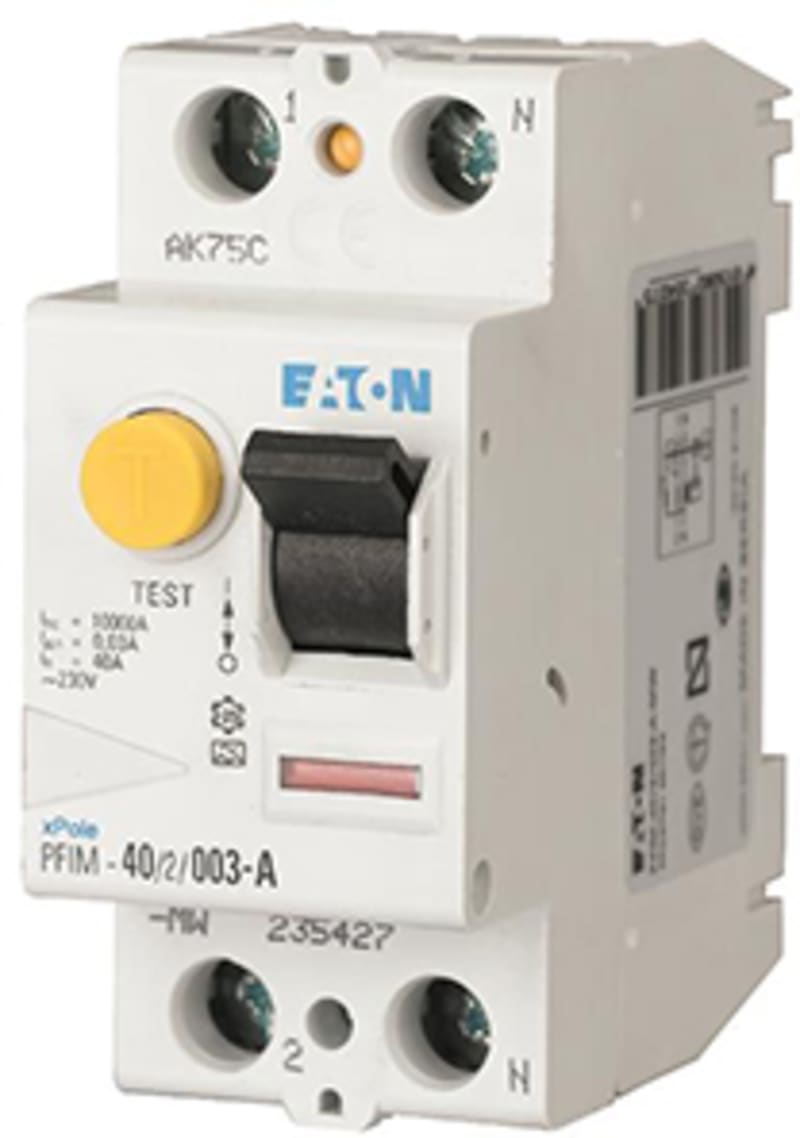

Residual current circuit breaker 40/2/01-S/A

Eaton PFIM-40/2/01-S/A-MW.

Manufacturer part number (MPN)

PFIM-40/2/01-S/A-MW

EAN / GTIN

4015081089543

HS code

8536.90

Sales unit

pcs

Package quantity

60 pcs

Eaton catalogue number

109770

Depth

76 mm

Height

80 mm

Width

35 mm

Weight

0.188 kg

Compliances

RoHS conform

Certifications

IEC/EN 61008

Accessories required

Z-HK 248432

Features

Additional equipment possible; Residual current circuit breaker; Selective protection

Fitted with

Interlocking device

Special features

Maximum operating temperature is 60 °C: Starting at 40 °C, the max. permissible continuous current decreases by 2.5% for every 1 °C Tripping signal contact for subsequent installation Z-NHK 248434

Used with

KLV-TC-2 276240 (Compact enclosure); Z-FW/LP 248296 (Remote control and automatic switching device); Z-RC/AK-2MU 285385 (sealing cover set)

Amperage Rating

40 A

Application

Residual current circuit breaker for residential and commercial applications xPole - Switchgear for residential and commercial applications

Fault current rating

100 mA

Impulse withstand current

Surge-proof, 3 kA

Number of poles

Two-pole

Rated short-circuit strength

10 kA

Sensitivity type

Pulse-current sensitive

Tripping time

Selective switch off

Type

PFIM Residual current circuit breakers Type S/A

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

5.4 W

Heat dissipation capacity

0 W

Heat dissipation per pole, current-dependent

0 W

Rated operational current for specified heat dissipation (In)

40 A

Static heat dissipation, non-current-dependent

0 W

Admissible back-up fuse overload - max

25 A gG/gL

Frequency rating

50 Hz

Leakage current type

A

Lifespan, electrical

4000 operations

Pollution degree

2

Rated fault current - max

0.1 A

Rated fault current - min

0.1 A

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

440 V

Rated operational voltage (Ue) - max

230 V

Rated residual making and breaking capacity

500 A

Rated short-time withstand current (Icw)

10 kA

Short-circuit rating

63 A (max. admissible back-up fuse)

Surge current capacity

5 kA

Test circuit range

196 V AC - 264 V AC

Voltage rating

230 V AC

Built-in depth

70.5 mm

Built-in width (number of units)

35 mm (2 SU)

Busbar material thickness

0.8 mm - 2 mm

Climatic proofing

25-55 °C / 90-95% relative humidity according to IEC 60068-2

Connectable conductor cross section (multi-wired) - max

16 mm²

Connectable conductor cross section (multi-wired) - min

1.5 mm²

Connectable conductor cross section (solid-core) - max

35 mm²

Connectable conductor cross section (solid-core) - min

1.5 mm²

Degree of protection

IP20; IP20, IP40 with suitable enclosure

Frame

45 mm

Lifespan, mechanical

20000 operations

Mounting Method

DIN rail; Quick attachment with 2 latch positions for DIN-rail IEC/EN 60715

Permitted storage and transport temperature - max

60 °C

Permitted storage and transport temperature - min

-35 °C

Terminal capacity (solid wire)

1.5 mm² - 35 mm²

Terminal capacity (stranded cable)

16 mm² (2x)

Terminal protection

Finger and hand touch safe, DGUV VS3, EN 50274

Terminals (top and bottom)

Open mouthed/lift terminals

Width in number of modular spacings

2

HS Code

8536.90
