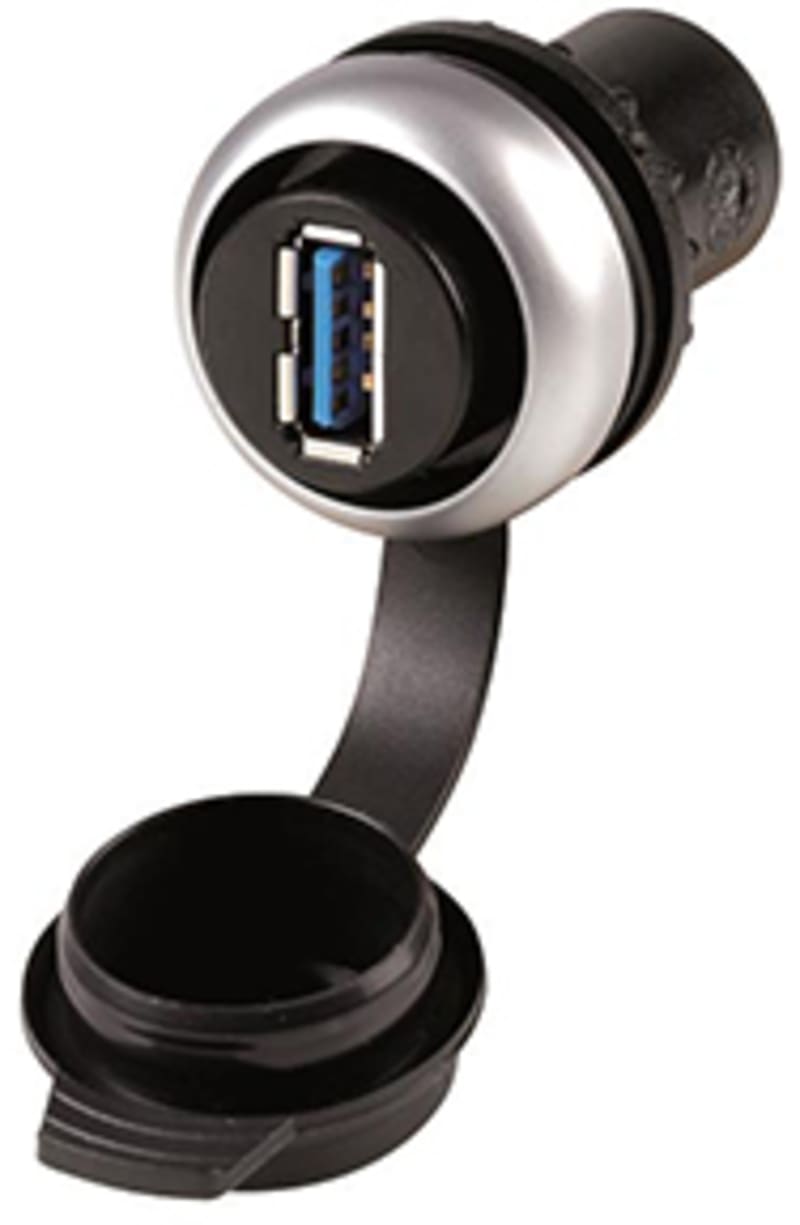

Connectionslead-through, RMQ (M22-USB)

Eaton Connectionslead-through, RMQ (M22-USB) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 147539; Depth: 50 mm; Height: 45 mm; Width: 30 mm; Weight: 0.02 kg.

Manufacturer part number (MPN)

M22-USB

EAN / GTIN

4015081439904

Sales unit

pcs

Eaton catalogue number

147539

Depth

50 mm

Height

45 mm

Width

30 mm

Weight

0.02 kg

Certifications

UL; UL report applies to both US and Canada; CSA Class No.: none; Certified by UL for use in Canada; UL File No.: E330994; CE; UL 508; CSA-C22.2 No. 142; IEC/EN 6113-2; UL Category Control No.: DUXR, DUXR7

Catalog Notes

USB 3.0 socket, Type A

Bezel color

Titanium

Design

USB 3.0 A

Number of poles

Nine-pole

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-20 °C

Connection to SmartWire-DT

No

Insulation resistance

≥ 100 MΩ

Nominal current

900 A

Nominal voltage - max

30 V

Rated operational voltage

5 V AC/DC

Resistance

< 30 mΩ (volume resistance)

Accessory/spare part type

Accessory

Degree of protection

NEMA 12 (with closed cover); IP65 (with closed cover); IP20 (with plug connected)

Lifespan, mechanical

100 insertion cycles

Mounting depth

27 mm

Opening diameter

22.5 mm

Accessory

Yes

Spare part

No

Country of origin

Czechia

HS Code

8536.69
