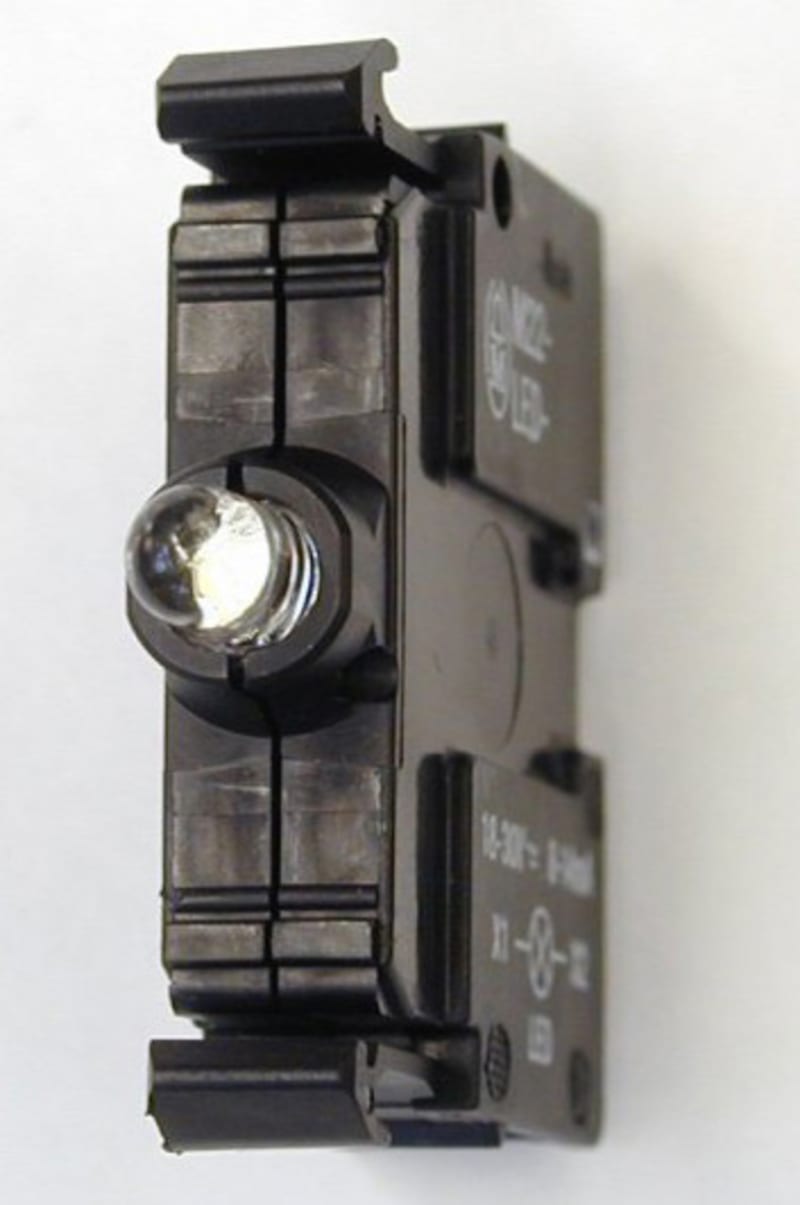

LED ELEMENT,RMQ (M22-CLED230-W)

Eaton M22-CLED230-W Led-element, 85-264V AC. Front mounting.

Manufacturer part number (MPN)

M22-CLED230-W

EAN / GTIN

4015082165758

Sales unit

pcs

Package quantity

20 pcs

Eaton catalogue number

216575

Depth

39 mm

Height

39 mm

Width

10 mm

Weight

0.01 kg

Compliances

CE Marked

Certifications

IEC 60947-5; CSA Std. C22.2 No. 94-91; CSA Std. C22.2 No. 14-05; UL 508; EN 60947-5; VDE; CE; CSA; IEC/EN 60947-5; UL File No.: E29184; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; IEC 60947-5-1; CSA Class No.: 3211-03; CSA File No.: 012528; UL; UL Category Control No.: NKCR

Catalog Notes

Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

No

Static heat dissipation, non-current-dependent Pvs

1 W

Power consumption

Max. 0.33 W

Rated insulation voltage (Ui)

500 V

Rated operational current (Ie) - max

15 mA

Rated operational current (Ie) - min

5 mA

Rated operational voltage (Ue) at AC - max

264 V

Rated operational voltage (Ue) at AC - min

85 V

Color

White

Fitted with

Light source; Diode

Light color

White

Degree of protection

IP20

Lifespan, electrical

100,000 h (at 25°C, according to EN60064)

Operating torque

0.8 Nm

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

6000 V AC

Voltage type

AC

Connection type

Front fixing

Mounting position

As required

Terminal capacity (solid)

0.75 - 2.5 mm²

Terminal capacity (stranded)

0.5 - 2.5 mm²

Lamp holder

None

Transformer integrated

No

With integrated voltage decreasing resistor

No

With integrated diode

Yes

Colour light source

White

Lamp type

LED

Type of fastening

Front fastening

With light source

Yes

Connection type auxiliary circuit

Spring clamp connection

Rated voltage Ue at AC 50 Hz

85–264 V

Rated voltage Ue at AC 60 Hz

85–264 V

Voltage type for actuating

AC

Country of origin

Germany

HS Code

8541.41

• EAN 4015082165758
• SAP 1000000375
• Code 816623
