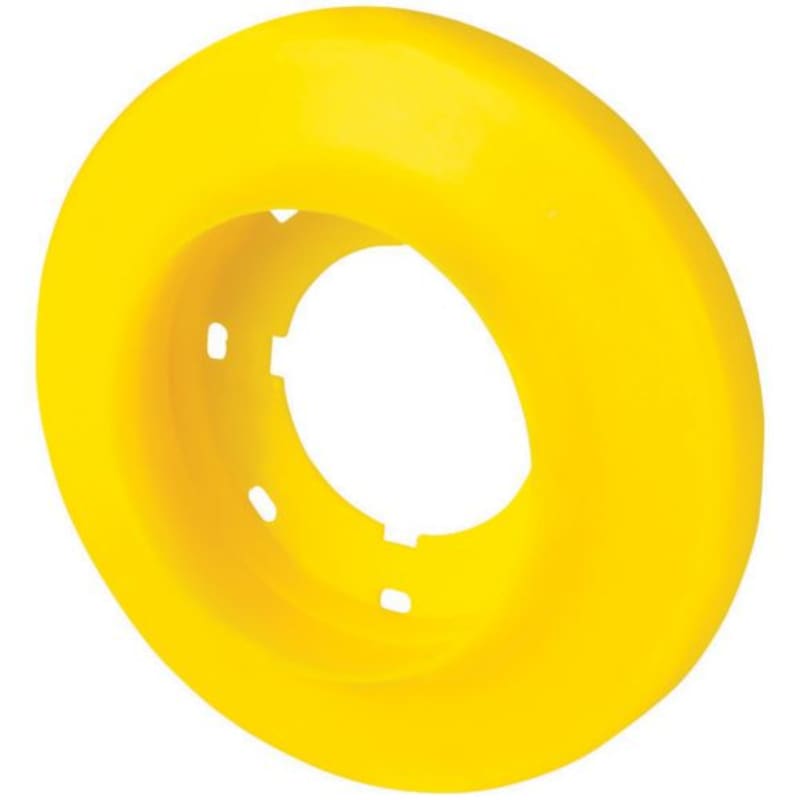

LED-Light Ring, RMQ (M22-XPV60-Y-24)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton LED-Light Ring, RMQ (M22-XPV60-Y-24) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 121477; Depth: 25 mm; Height: 60 mm; Width: 60 mm; Weight: 0.035 kg.
Technical Specifications
- Manufacturer part number (MPN)
- M22-XPV60-Y-24
- EAN / GTIN
- 4015081192953
- Sales unit
- pcs
- Eaton catalogue number
- 121477
- Depth
- 25 mm
- Height
- 60 mm
- Width
- 60 mm
- Weight
- 0.035 kg
- Compliances
- CE Marked
- Certifications
- EN 60947-5; CSA Std. C22.2 No. 94-91; CSA Std. C22.2 No. 14-05; IEC 60947; UL 508; UL File No.: E340491; IEC/EN 60947-5; UL Category Control No.: NISD; CSA-C22.2 No. 14-05; UL; CSA Class No.: 3211-03; CSA-C22.2 No. 94-91; CE; CSA File No.: 012528; CSA
- Catalog Notes
- Three groups of 4 LEDs each (series-connected), can be actuated separately (e.g. for continuous light)
- Actuator diameter
- 60 mm
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Connection to SmartWire-DT
- No
- Static heat dissipation, non-current-dependent Pvs
- 0.9 W
- Rated operational voltage
- 24 V AC/DC
- Accessory/spare part type
- Accessory
- Degree of protection
- IP66; IP69
- Type
- LED
- Accessory
- Yes
- Spare part
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081192953
- SAP 1000650385
- Code 8631669
