Bottom Plate FOR Flange F3A B800
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton AFP-8-CS is a bottom plate for 800 mm wide CS wall-mounted steel enclosures, with two F3A flange apertures. Used with the matching F3A flange plates it maintains the enclosure IP66 rating, and it can serve as a roof plate by turning the enclosure through 180 degrees. RAL7035. EN62282.
Technical Specifications
- Manufacturer part number (MPN)
- AFP-8-CS
- EAN / GTIN
- 4015081124565
- Sales unit
- pcs
- Eaton catalogue number
- 112918
- Depth
- 175 mm
- Height
- 5 mm
- Width
- 800 mm
- Weight
- 0.8 kg
- Compliances
- RoHS conform
- Functions
- Not suitable for enclosure CS-…/150; Usable as a roof plate by turning the enclosure through 180°
- RAL-number
- 7035
- Special features
- For flange F3A With foamed gasket
- Used with
- Enclosure width = 800 mm
- Accessory/spare part type
- Bottom plate
- Color
- Light gray (RAL 7035); Gray
- Model
- Floor plate
- Type
- Accessory CS
- Flange apertures
- 3
- Material
- Steel plate; Metal
- Suitable for enclosure building height
- 1200 mm
- Suitable for enclosure building length/depth
- 300 mm
- Suitable for enclosure building width
- 800 mm
- Surface finishing
- Semi-textured
- Degree of protection
- IP66 (if used properly with F3A-… flanges)
- Colour
- Grey
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081124565
- SAP 1000704195
- Code 8319860
Product Documentation
More from Eaton
Eaton
Push-Button, Impulse, RED
M22-D-R
Eaton
Cover plate top/bottom xE Light (XLFA2)
Eaton
Eaton FAZT-C3/4 Miniature Circuit Breaker — 4P, Type C, 3 A, 25 kA
Eaton

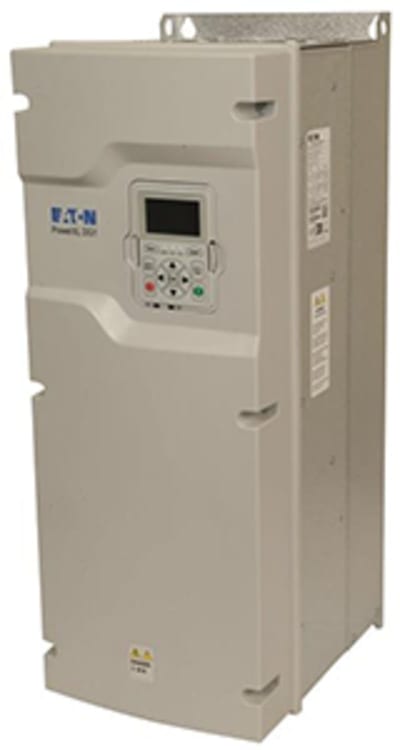

DG1 variable-frequency drive 400V: 45kW (DG1-34087FN-C21C)
Eaton

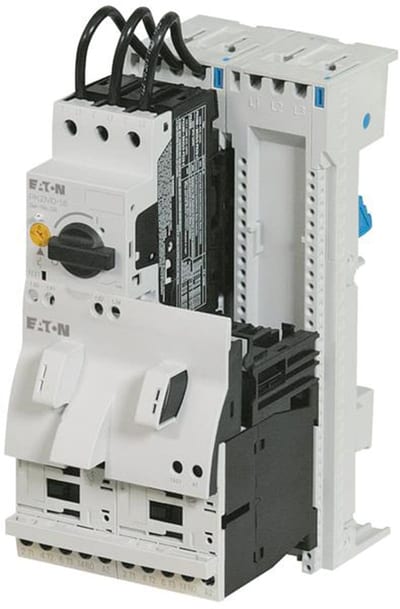

Direction of rotation starter (MSC-R-1,6-M7(24VDC)/BBA)
Eaton

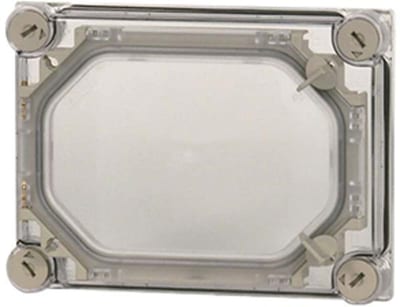

Cover H×W×D=250X187.5X25MM (D125-CI23/T)
Eaton

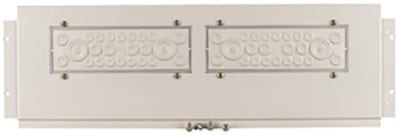

pl. for B=1000mm pass-through (BP-FLP-1000-2K)
