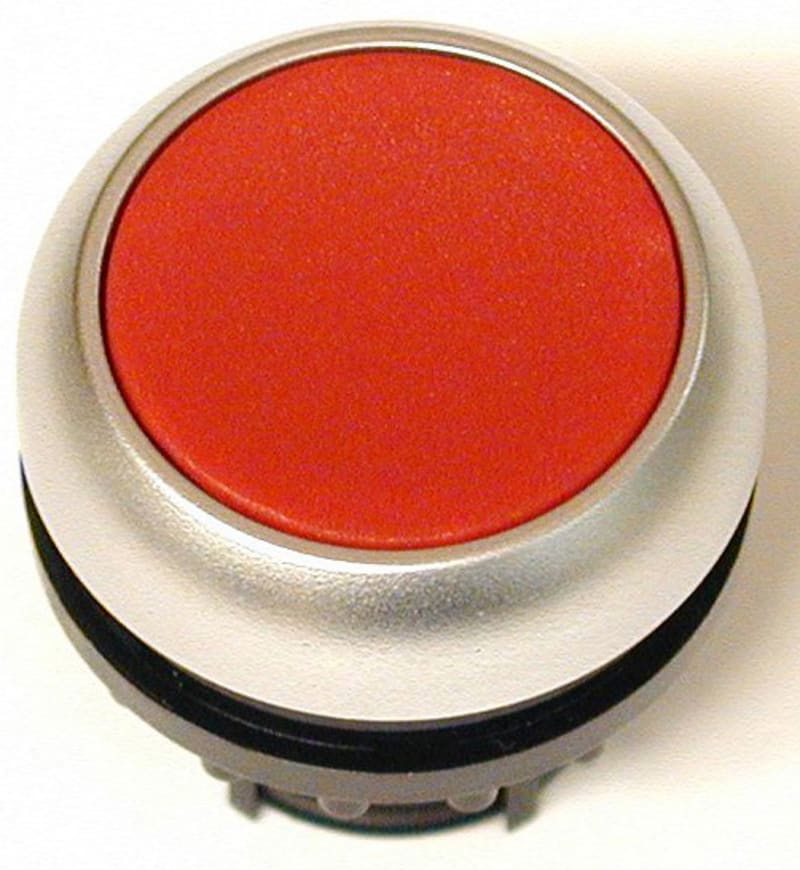

Push-Button, Impulse, RED
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Push-Button, Impulse, RED (part number M22-D-R) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 216594; Depth: 30 mm; Height: 30 mm; Width: 30 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-D-R
- EAN / GTIN
- 4015082165949
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 216594
- Depth
- 30 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.009 kg
- Compliances
- CE Marked
- Certifications
- UL 508; IEC 60947-5; EN 60947-5; CSA Std. C22.2 No. 14-05; CSA Std. C22.2 No. 94-91; VDE; CSA; CSA Class No.: 3211-03; CSA-C22.2 No. 14-05; IEC/EN 60947; IEC/EN 60947-5; UL Category Control No.: NKCR; UL File No.: E29184; VDE 0660; CE; CSA File No.: 012528; UL; CSA-C22.2 No. 94-91; DNV; GL; LR
- Actuating force
- 5 N
- Actuator color
- Red
- Actuator function
- Spring-return; Momentary
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Flat; Classical
- Fitted with
- Front ring
- Inscription
- Blank
- Lens type
- Round
- Number of command positions
- 1
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Degree of protection
- IP66; IP67; IP69K; NEMA 13; NEMA 4X; NEMA 3R; NEMA 12
- Degree of protection (front side)
- IP67/IP69K; NEMA 4X
- Lifespan, mechanical
- 5,000,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 3600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: 22 x 22 mm
- Type
- Pushbutton actuator
- Hole diameter
- 22 mm
- Colour button
- Red
- Suitable for lighting
- No
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67/IP69K
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082165949
- SAP 1000064436
- Code 8900803
