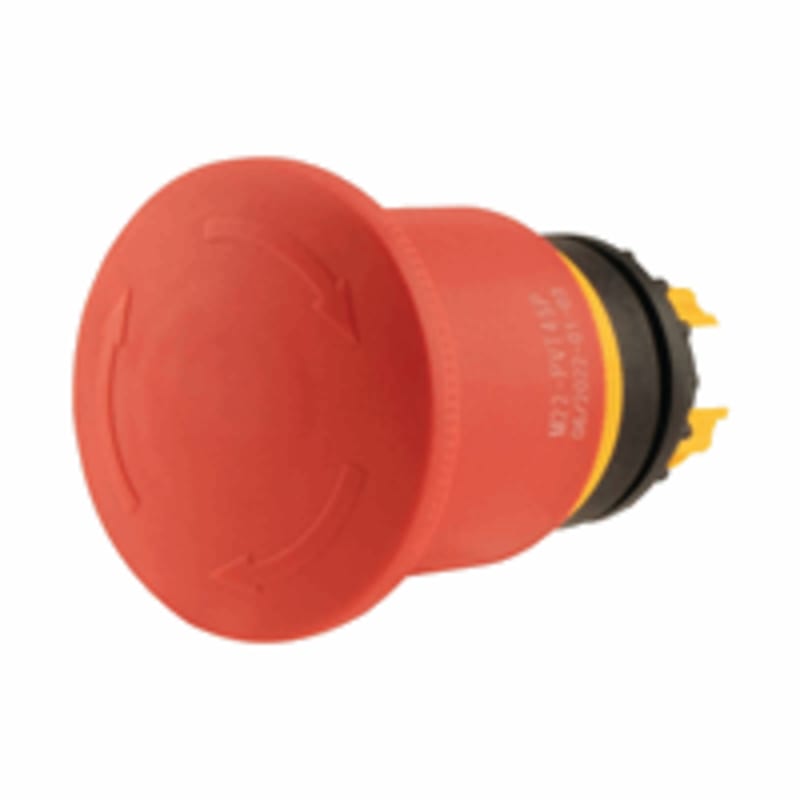

Emergency stopswitch, RMQ (M22-PVT45P)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Emergency stopswitch, RMQ (M22-PVT45P) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 121462; Depth: 67 mm; Height: 45 mm; Width: 45 mm; Weight: 0.043 kg.
Technical Specifications
- Manufacturer part number (MPN)
- M22-PVT45P
- EAN / GTIN
- 4015081192823
- Sales unit
- pcs
- Eaton catalogue number
- 121462
- Depth
- 67 mm
- Height
- 45 mm
- Width
- 45 mm
- Weight
- 0.043 kg
- Certifications
- IEC/EN 60947; VDE 0660; DNV; GL; LR
- Actuating force
- 50 N
- Actuator color
- Red
- Actuator diameter
- 45 mm
- Actuator function
- Switching function latching; Turn-to-release
- Color
- Red
- Design
- Palm-tree shaped; Classical
- Illumination
- Non-illuminated
- Unlocking method
- Turn-release
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- No
- Base color
- Yellow
- Bezel color
- Other
- Bezel material
- Other
- Features
- Tamper-proof (according to ISO 13850, EN 418)
- RAL-number
- 3000
- Degree of protection
- IP67/IP69K; NEMA 4X
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 600 Operations/h
- Product category
- RMQ-Titan
- Suitable for
- Emergency stop
- Type
- Controlled stop pushbutton/emergency-stop button
- Hole diameter
- 22.5 mm
- Colour button
- Red
- Suitable for lighting
- No
- Spring-return
- No
- Diameter cap
- 45 mm
- Suitable for emergency stop
- Yes
- Type of button
- High
- With lighting
- No
- With front ring
- No
- Construction type lens
- Round
- Switching function latching
- Yes
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081192823
- SAP 1000221822
- Code 81114956
Product Documentation
