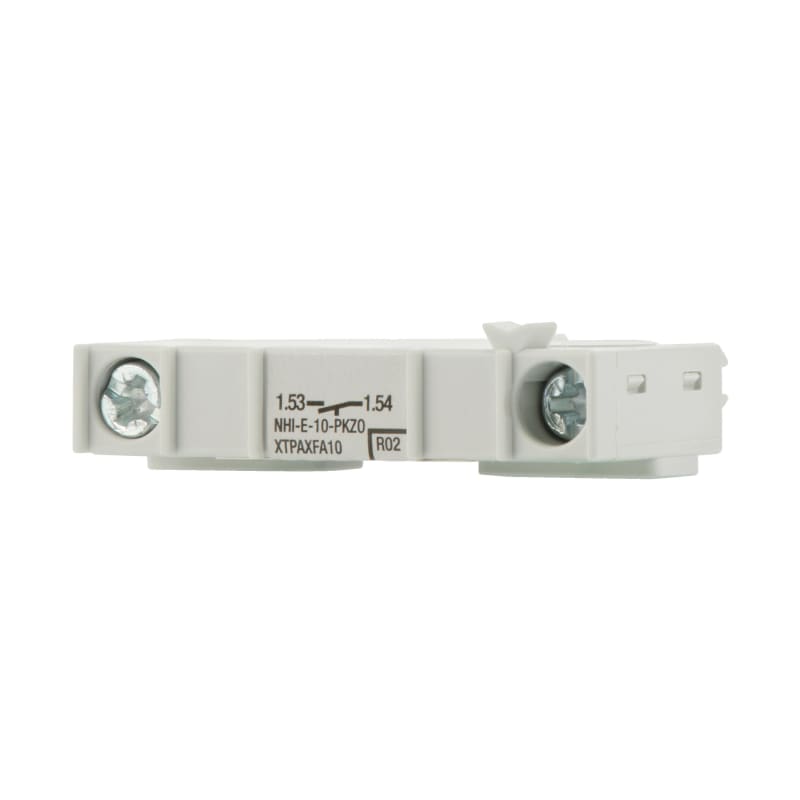

Auxiliary contact (NHI-E-10-PKZ0)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Auxiliary contact (NHI-E-10-PKZ0) is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Package quantity: 5 pcs; Eaton catalogue number: 082884; Depth: 12 mm; Height: 35 mm; Width: 45 mm.
Technical Specifications
- Manufacturer part number (MPN)
- NHI-E-10-PKZ0
- EAN / GTIN
- 4015080828846
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 082884
- Depth
- 12 mm
- Height
- 35 mm
- Width
- 45 mm
- Weight
- 0.011 kg
- Certifications
- CE; CSA File No.: 165628; CSA; IEC/EN 60947-4-1; UL Category Control No.: NLRV; CSA Class No.: 3211-05; CSA-C22.2 No. 14; UL File No.: E36332; UL; UL 508
- Catalog Notes
- Can be fitted to the front. Terminal designation differs to that of an auxiliary contact that can be fitted to the side
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -25 °C
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 0
- Number of contacts (normally open contacts)
- 1
- Rated operational current for specified heat dissipation (In)
- 1 A
- Heat dissipation per pole, current-dependent Pvid
- 0.01 W
- Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
- 1 A
- Rated operational current (Ie) at DC-13, 24 V
- 2 A
- Rated operational voltage (Ue) at AC - max
- 440 V
- Rated operational voltage (Ue) at DC - max
- 250 V
- Safe isolation
- 440 V, Between auxiliary contacts and main contacts, According to EN 61140
- Short-circuit protection rating without welding
- 10 A gG/gL, Fuse, Auxiliary contacts
- Electric connection type
- Screw connection
- Lifespan, electrical
- 50,000 Operations
- Lifespan, mechanical
- 50,000 operations
- Model
- Top mounting
- Mounting method
- Front fastening
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- Accessories
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Used with
- Motor protective circuit-breaker
- Switching capacity (auxiliary contacts, general use)
- 0.5 A, 250 V DC, (UL/CSA)
- Switching capacity (auxiliary contacts, pilot duty)
- E150, AC operated (UL/CSA)
- Terminal capacity (solid/flexible with ferrule)
- 0.75 - 1.5 mm²
- Terminal capacity (solid/stranded AWG)
- 18 - 16, Screw terminals
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015080828846
- SAP 1000289132
- Code 81038585
Product Documentation
More from Eaton
Eaton
Fuse 35A D3, E33 (35D33)
Eaton
Cross-Cable FOR DIR.COUPLING 2M
XT-CAT5-X-2
Eaton
Nexitech Double-sided Sign PIL Right-HAND/LEFT-HAND
Nexi-Plexl-LR
Eaton
MCB 10A 2P/C DC (PLS6-C10/2-DC)
Eaton
Switch 0-1 1P Recessed (T0-1-8200/E)
Eaton
EC4P, 8TRANSISTOR Q, without displ.
EC4P221MTXX1
Eaton
Eaton xEffect FRCdM Residual Current Circuit Breaker (RCCB) — Type B, 4-Pole, 40 A, 300 mA, Selective
167901
Eaton
Eaton EC4P-222-MTAD1
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NHI-E-10-PKZ0?
- NHI-E-10-PKZ0 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is NHI-E-10-PKZ0.
- What is the HS code for NHI-E-10-PKZ0?
- The customs tariff (HS) code for NHI-E-10-PKZ0 is 8538.90.
- Who manufactures NHI-E-10-PKZ0?
- NHI-E-10-PKZ0 is a Eaton product in the Electrical Components range.
- Is a datasheet available for NHI-E-10-PKZ0?
- Yes — the NHI-E-10-PKZ0 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NHI-E-10-PKZ0?
- The minimum order quantity is 1.
- Is NHI-E-10-PKZ0 available?
- Yes — NHI-E-10-PKZ0 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
