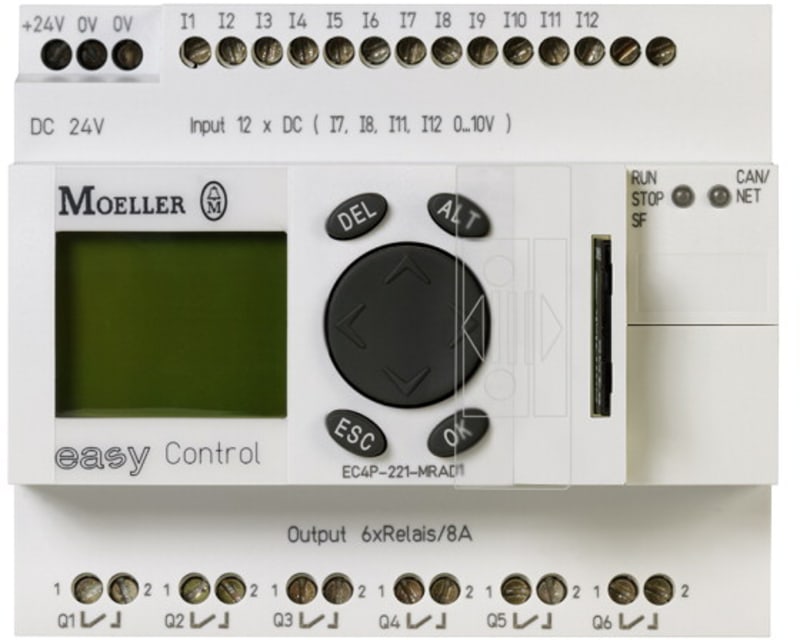

Eaton EC4P-222-MTAD1

Eaton EC4P-222-MTAD1 is listed under Control & Automation / PLCs & Logic Relays. Sales unit: pcs; Eaton catalogue number: 106403; Depth: 72 mm; Height: 90 mm; Width: 107.5 mm; Weight: 0.314 kg.

Manufacturer part number (MPN)

EC4P-222-MTAD1

EAN / GTIN

4015081061730

Sales unit

pcs

Eaton catalogue number

106403

Depth

72 mm

Height

90 mm

Width

107.5 mm

Weight

0.314 kg

Certifications

CSA File No.: 012528; CSA-C22.2 No. 142-M; CSA-C22.2 No. 0-M; UL508; UL; CSA Class No.: 2252-01; IEC/EN 61000-4-2

Level 3; CE; UL Category Control No.

NRAQ; UL File No.: E135462; CSA

Catalog Notes

Expandable: Inputs/outputs and bus systems

Constant acceleration

2 g, 57 - 150 Hz, according to IEC/EN 60068-2-6, Vibrations

Constant amplitude

0,15 mm, 10 - 57 Hz, according to IEC/EN 60068-2-6, Vibrations

Drop and topple

50 mm Drop height, Drop to IEC/EN 60068-2-31

Height of fall (IEC/EN 60068-2-32) - max

1 m

Mounting position

Horizontal; Vertical

Shock resistance

15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts

Air pressure

1080 hPa (operation)

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Environmental conditions

Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2

No. 142; Condensation

prevent with appropriate measures

Relative humidity

5 - 95 % (non-condensing)

Bus termination

EASY-NT-R plug (incl. bus terminating resistor 120 Ω),first and last station, CANopen®

Character formats

8E1, 8O1, 8N1, 8N2, 7E2, 7O2, 7N2, 7E1, PRG interface RS232, Master mode

Connection type

RJ45, PRG Interface RS232; RJ45, Ethernet; 2 x RJ45, 8 pole, CANopen®

Cycle time

< 0.3 ms, for 1 k of instructions (Bit, Byte), CPU

Memory

16 kByte Marker Memory; 4 kByte Output Memory; 14 segments of 16 kByte Program memory data; 4 kByte Input Memory; 8 kByte Retain Memory; 256 kByte Program memory code

Number of bytes

190 transmission bytes (in a block)

Number of modules

Max. 126 (slaves)

Station

To DS 301 V4, Control contact rated current, Mode slave, Interfaces

Write cycles of the retentive memory

10,000,000,000 read-write cycles

Static heat dissipation, non-current-dependent Pvs

3.4 W

Air discharge

8 kV

Burst impulse

2 kV, Supply cable; According to IEC/EN 61000-4-4, level 3; 2 kV, Signal cable

Contact discharge

6 kV, Electrostatic discharge (ESD)

Electromagnetic fields

10 V/m (according to IEC EN 61000-4-3)

Immunity to line-conducted interference

10 V (according to IEC/EN 61000-4-6)

Radio interference class

Class B (EN 55011); Class B (EN 55022)

Surge rating

2 kV, Supply cables, symmetrical, EASY...AC, power pulses (Surge), EMC; According to IEC/EN 61000-4-5, power pulses (Surge), EMC; 0.5 kV, Supply cables, symmetrical, EASY…DC, power pulses (Surge), EMC

Functions

Thermal cutout; Building blocks

Inscription

Individual inscription possible with EC4-COMBINATION-*

Processor

Infineon XC161

Cable length

100 m, unshielded, Digital inputs 24 V DC; 30 m, screened, Analog inputs

Current consumption

2 A, max. total current of Transistor outputs (Caution! Outputs must be actuated simultaneously and for the same length of time.)

Degree of protection

IP20

Display temperature - max

55 °C

Display temperature - min

0 °C

Mounting method

Screw fixing using fixing brackets ZB4-101-GF1 (accessories); Top-hat rail fixing (according to IEC/EN 60715, 35 mm)

Overvoltage category

II

Pollution degree

2

Rated operational voltage

24 V DC (-15 %/+ 20 % - power supply); 20.4 - 28.8 V DC; 20.4 - 28.8 V DC (Transistor outputs)

Recovery time

100 µs

Residual current

0.1 mA (on signal "1" per channel)

Resolution

0.01 V analog (Analog inputs) 0.01 V DC analog (Analog outputs) 0.01 V digital (Analog inputs) 10 Bit (value 0 - 1023, Analog inputs) 10 Bit (value 0 - 1023, digital, Analog outputs)

Short-circuit protection

Yes, electronic (Q1 - Q4), thermal (Q5 - Q8), (analysis via diagnostics input I16, I15), Transistor outputs

Accuracy

1 %, Analog outputs at 25 °C; ± 5 s/day (± 0.5 h⁄year), Real-time clock, normally; 2 %, Analog outputs at-25 °C - 55 °C; ± 3 %, of actual value, two devices (Analog Inputs); ± 2, (I7, I8, I11, I12) ± 0.12 V, of actual value, within a single device (Analog Inputs)

Conversions

Each CPU cycle, Analog outputs; Each CPU cycle for Analog inputs

Delay time

0.02 ms typ., Digital inputs 24 DC (I1 - I4), Delay time from 0 to 1; 0.25 ms typ., Digital inputs 24 DC (I5 - I12), Delay time from 0 to 1

Incremental counter

Value range: 32 Bit; Counter frequency: ≤ 40 kHz; Pulse shape: Square; Reference input: I3; Signal offset: 90°; Number of counter inputs: 1 (I1, I2, I3

I4); Counter inputs

I1

I2; Input for reference switch

I4

Indication

LCD-display used as Output status indication of Transistor outputs; LCD-display used as status indication of Digital inputs 24 V DC

Input

Voltage (DC)

Input current

140 mA; 3.3 mA (I1 - I6, at 24 V DC, at signal 1); 2.2 mA (I11 - I12, at 24 V DC, at signal 1); 1 mA (Analog inputs); 3.3 mA (I9 - I10, at 24 V DC, at signal 1); 2.2 mA (I7 - I8, at 24 V DC, at signal 1)

Input impedance

11.2 kΩ

Insulation resistance

According to EN 50178

Lamp load

5 W (without Rv per channel)

Load resistance

1 kΩ

Number of inputs (analog)

4 (I7, I8, I11, I12)

Number of inputs (digital)

4 (can also be used as analog inputs); 4 (I7, I8, I11, I12, can also be used as analog inputs); 12; 12 (24 V DC)

Number of outputs

Max. 4 (for parallel connection); 8 Transistor Outputs

Number of outputs (analog)

1

Operating frequency

40000 Operations/h at resistive load; Depending on the suppressor circuit (Inductive load to EN 60947-5-1, with external suppressor circuit, Max. switching frequency, max. duty factor)

Output

Voltage (DC)

Output current (mA) - max

100 mA

Peak short-circuit current

32 A

Rapid counter inputs

2 (I1, I2) at 16 Bit or 1 (I1) at 32 Bit; 50 kHz

Counter frequency; Cable length

≤ 20 m (shielded); Pulse shape: Square; 16/32 Bit (value range)

Rated operational current (Ie)

Max. 0.5 A at signal „1” DC per channel

Rated operational voltage (Ue) at DC - max

24 V

Short-circuit tripping current

0.7 ≤ Ie ≤ 2 per output, For Ra ≤ 10 mΩ, Transistor outputs

Signal range

0 - 10 V DC, Analog inputs

Short-circuit current

16 A, Transistor outputs

Heat dissipation

3.4 W

Input voltage

Signal 1: > 15 V DC (I1 - I6, I9 - I10, Digital inputs

24 V DC); Signal 0

< 8 V DC (I7 - I8, I11 - I12, Digital inputs

24 V DC); Signal 1

> 8 V DC (I7 - I8, I11 - I12, Digital inputs

24 V DC); Signal 0

< 5 V DC (I1 - I6, I9 - I10, Digital inputs, 24 V DC)

Output voltage

Max. 2.5 V (at signal 0 at external load < 10 MΩ, transistor outputs); U = Uₑ - 1 V (signal 1 at Iₑ = 0.5 A, transistor outputs)

Residual ripple

5 % (transistor outputs); ≤ 5 %

Supply current

18/32 mA, Normally⁄max., On 0 signal, Transistor outputs; 24/44 mA, Normally⁄max., On 1 signal, Transistor outputs

Supply voltage at DC - max

24 VDC

Voltage dips

≤ 10 ms; According to EN 61131-2

Protection against polarity reversal

Yes (Caution: A short circuit will result if 0 V or earth is applied to the outputs in the event that the supply voltage is connected to the wrong poles.)

Screwdriver size

3.5 x 0.8 mm, Terminal screw

Terminal capacity (flexible with ferrule AWG)

22 - 12

Terminal capacity (flexible with ferrule)

0.2/2.5 mm²

Terminal capacity (solid AWG)

22 - 12

Terminal capacity (solid)

0.2/4 mm²

Tightening torque

0.6 Nm

Contains analogue output module

Yes

Contains analogue input module

Yes

Contains module rack

No

Contains control unit

Yes

Contains libraries

Yes

Contains digital output module

Yes

Contains digital input module

Yes

Contains documentation

Yes

Contains engineering software

Yes

Contains function building blocks

Yes

Contains function module

Yes

Contains basic device

Yes

Contains communication module

Yes

Contains monitor

Yes

Contains programming software

No

Contains simulation module

No

Contains memory unit

Yes

HS Code

8537.10
