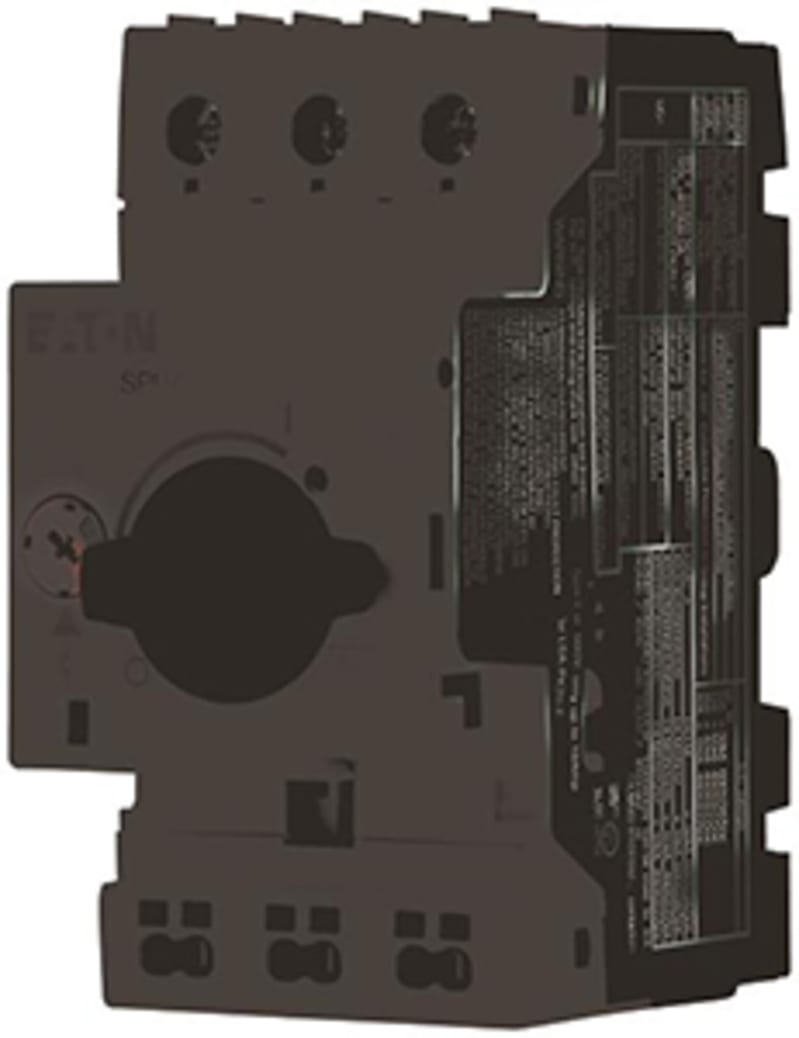

Motor protection circuit breaker,PKZM0-1-SPI16

Eaton PKZM0-1-SPI16 Motorprotective circuit breaker, 0.25 kW, 0.63 - 1 A, Feed-side screw term./output-side PI term.

Manufacturer part number (MPN)

PKZM0-1-SPI16

EAN / GTIN

4015081972654

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

199181

Depth

75 mm

Height

94 mm

Width

45 mm

Weight

0.249 kg

Certifications

IEC/EN 60947; VDE 0660; UL File No.: E36332; IEC/EN 60947-4-1; CSA File No.: 165628; UL Category Control No.: NLRV; UL; CSA-C22.2 No. 60947-4-1-14; CSA Class No.: 3211-05; CSA; UL 60947-4-1; CE

Altitude

Max. 2000 m

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Rated operational current for specified heat dissipation (In)

1 A

Static heat dissipation, non-current-dependent Pvs

0 W

Equipment heat dissipation, current-dependent Pvid

5.33 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

1.8 W

Rated frequency - max

60 Hz

Rated frequency - min

50 Hz

Rated operational current (Ie)

1 A

Rated operational power at AC-3e, 220/230 V, 50 Hz

0.12 kW

Rated operational power at AC-3e, 380/400 V, 50 Hz

0.25 kW

Rated operational power at AC-3e, 440 V, 50 Hz

0.25 kW

Rated operational power at AC-3e, 500 V, 50 Hz

0.37 kW

Rated operational power at AC-3e, 690 V, 50 Hz

0.55 kW

Rated operational voltage (Ue) - max

690 V

Rated operational voltage (Ue) - min

690 V

Rated uninterrupted current (Iu)

1 A

Actuator type

Turn button

Features

Phase-failure sensitivity (according to IEC/EN 60947-4-1, VDE 0660 Part 102)

Functions

Phase failure sensitive; Motor protection

Number of poles

Three-pole

Connection

Push-in terminals on output side; Screw terminals on feed side

Degree of protection

IP20; Terminals: IP00

Lifespan, electrical

100,000 operations

Lifespan, mechanical

100,000 Operations

Mounting Method

DIN rail (top hat rail) mounting optional

Mounting position

Can be snapped on to IEC/EN 60715 top-hat rail with 7.5 or 15 mm height.

Operating frequency

40 Operations/h

Overvoltage category

III

Pollution degree

3

Product category

Motor protective circuit breaker

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

6000 V AC

Shock resistance

25 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Suitable for

Also motors with efficiency class IE3; Branch circuit: Manual type E if used with terminal, or suitable for group installations, (UL/CSA)

Temperature compensation

≤ 0.25 %/K, residual error for T > 40°; -25 - 55 °C, Operating range; -5 - 40 °C to IEC/EN 60947, VDE 0660

Rated short-circuit breaking capacity Ics at 400 V AC

150 kA

Rated short-circuit breaking capacity Ics at 440 V AC

150 kA

Rated short-circuit breaking capacity Ics at 500 V AC

150 kA

Rated short-circuit breaking capacity Ics at 690 V AC

150 kA

Rated short-circuit breaking capacity Icu at 400 V AC

150 kA

Rated short-circuit breaking capacity Icu at 440 V AC

150 kA

Rated short-circuit breaking capacity Icu at 500 V AC

150 kA

Rated short-circuit breaking capacity Icu at 690 V AC

150 kA

Short-circuit current rating (group protection)

50 kA, 600 V High Fault, Fuse, SCCR (UL/CSA) with 600 A, 600 V High Fault, Fuse, SCCR (UL/CSA); 50 kA, 600 V High Fault, CB, SCCR (UL/CSA) with 600 A, 600 V High Fault, CB, SCCR (UL/CSA)

Short-circuit current rating (type E)

50 kA, 600 Y/347 V, SCCR (UL/CSA); 65 kA, 240 V, SCCR (UL/CSA); 65 kA, 480 Y/277 V, SCCR (UL/CSA); Accessories required BK25/3-PKZ0-E

Short-circuit release

Basic device fixed 15.5 x Iu; ± 20% tolerance; 15.5 A, Irm

Switching capacity

1 A, AC-3 up to 690 V

Stripping length (main cable)

10 mm

Terminal capacity (flexible with unisolated ferrule)

1 x (1 - 6) mm², Screw terminals; 2 x (1 - 6) mm², Screw terminals; 1 x (1 - 2.5) mm², Push-in terminals; 2 x (1 - 2.5) mm², Push-in terminals

Terminal capacity (flexible)

1 x (1 - 6) mm², Screw terminals; 2 x (1 - 6) mm², Screw terminals; 1 x (1 - 2.5) mm², Push-in terminals; 2 x (1 - 2.5) mm², Push-in terminals

Terminal capacity (flexible with ultrasonic welded cable end)

1 x (1 - 6) mm², Screw terminals; 2 x (1 - 6) mm², Screw terminals; 1 x (1 - 2.5) mm², Push-in terminals; 2 x (1 - 2.5) mm², Push-in terminals

Terminal capacity (solid)

1 x (1 - 6) mm², Screw terminals; 2 x (1 - 6) mm², Screw terminals; 1 x (1 - 2.5) mm², Push-in terminals; 2 x (1 - 2.5) mm², Push-in terminals

Terminal capacity (solid/stranded AWG)

18 - 10, screw terminals; 20 - 14, Push-in terminals

Tightening torque

1.7 Nm, Screw terminals, Main cable

Overload release current setting - max

1 A

Overload release current setting - min

0.63 A

Tripping characteristic

Overload trigger: tripping class 10 A

HS Code

8536.90
