Eaton

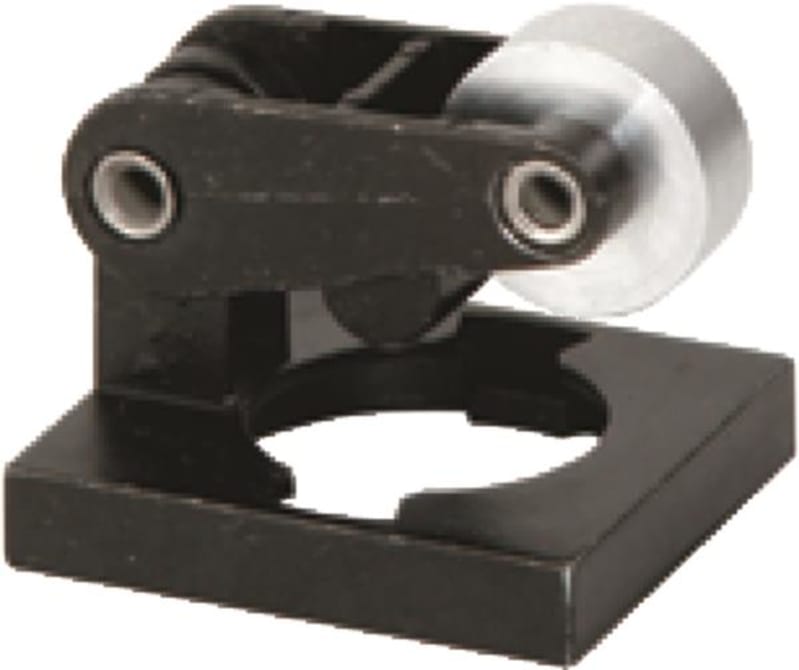

Roller lever LSM-XL
Part numberLSM-XLEAN / GTIN4015082661564HS code8538.90
Sensors & Instrumentation
Position Switches
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton LSM-XL Roller lever, metal.
Technical Specifications
- Manufacturer part number (MPN)
- LSM-XL
- EAN / GTIN
- 4015082661564
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 266156
- Depth
- 25 mm
- Height
- 25 mm
- Width
- 28 mm
- Weight
- 0.022 kg
- Compliances
- CE Marked
- Certifications
- EN 60947-5; IEC 60947-5; CSA Std. C22.2 No. 14; UL 508; CE; CSA File No.: 012528; CSA Class No.: 3211-03; CSA-C22.2 No. 14; IEC/EN 60947-5; CSA; UL; UL File No.: E29184; UL Category Control No.: NKCR
- Catalog Notes
- Long
- Actuator type
- Roller lever
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Design
- EN 50047 Form E
- Features
- The operating head can be rotated 90° to enable adaptation to the specified approach direction
- Product category
- Roller lever
- Type
- Operating heads
- Used with
- LS(M) basic devices
- Type of control element
- Roller lever
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082661564
- SAP 1000289302
- Code 81159348
Product Documentation
Document preview: Rullearm, — Specification Data Sheet (OEM)
More from Eaton
Eaton

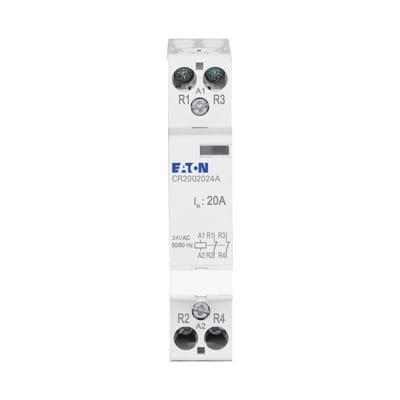

Installation Relay 20A 24V AC 2NC
CR2002024A
Eaton

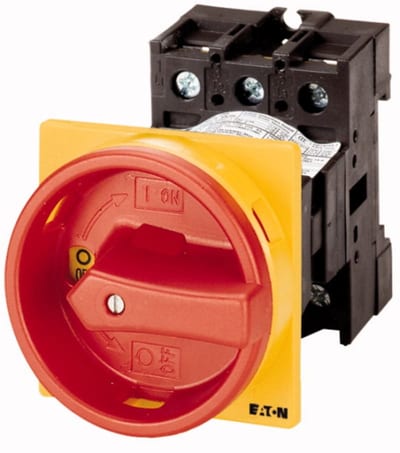

Safety Switch 3P SPLIT MOUNTING (P1-25/V/Svb)
P1-25/V/SVB
Eaton
Motor protection circuit breaker,PKZM0-6,3-SPI16
Eaton

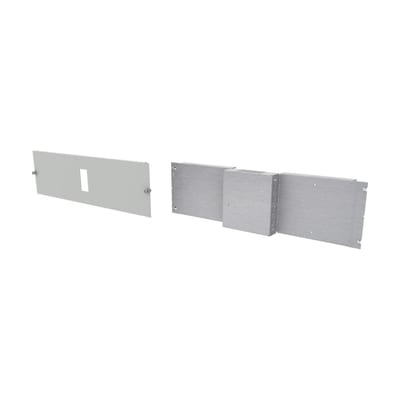

Mounting Kit NZM1 H XDV H200 B800 xE Basic
EP-502304
Eaton

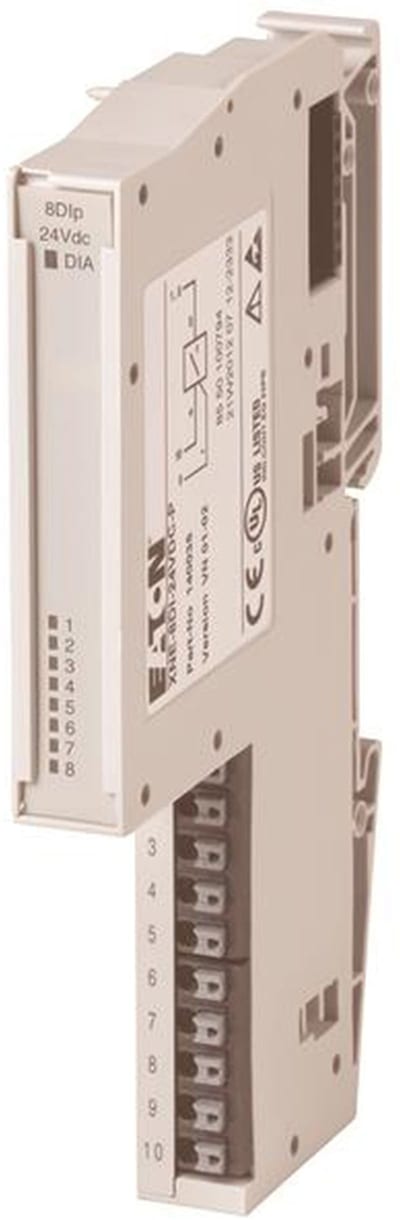

Input module XNE-8DI-24VDC-P
Eaton
Eaton FAZ-D6/3N Miniature Circuit Breaker — 3P+N, Type D, 6 A, 15 kA
Eaton

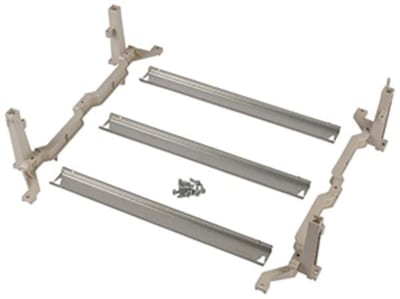

Mounting rail support 3X15
TG44
Eaton

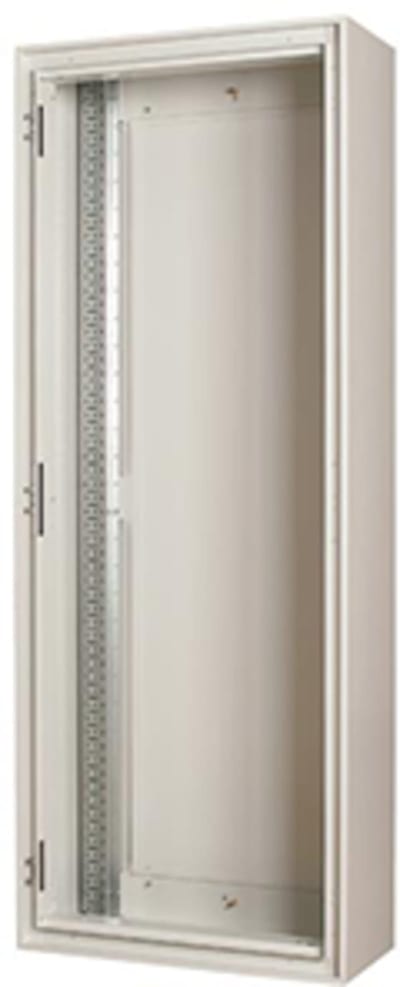

Wall-mount cabinet IP55 xE without door H1060 B600 D270
