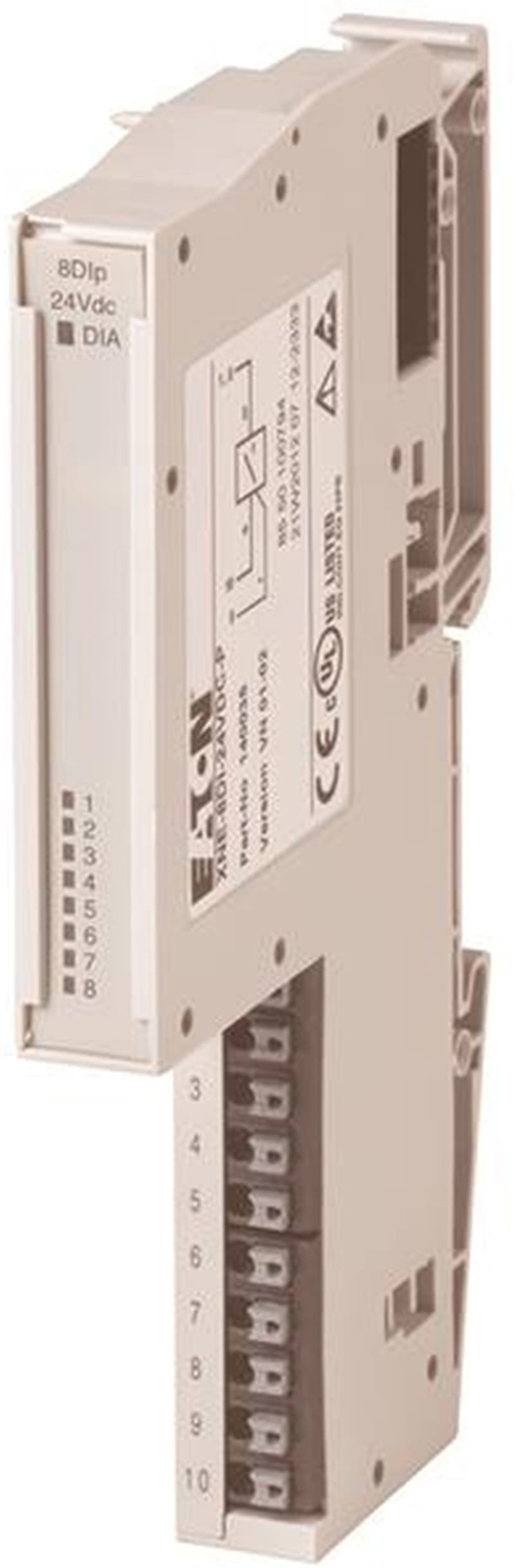

Input module XNE-8DI-24VDC-P

Eaton XNE-8DI-24VDC-P Digital Input Module XI/ON ECO, 24 V DC, 8DI.

Manufacturer part number (MPN)

XNE-8DI-24VDC-P

EAN / GTIN

7640130120556

Sales unit

pcs

Eaton catalogue number

140035

Depth

129.5 mm

Height

74.5 mm

Width

13 mm

Weight

0.055 kg

Catalog Notes

Base modules without C-Connection already built in

Drop and topple

According to IEC 60068-2-31, free fall according to IEC 60068-2-32

Shock resistance

Mechanical, According to IEC/EN 60068-2-27; Continuous according to IEC/EN 60068-2-29

Vibration resistance

According to IEC/EN 60068-2-6

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - min

-25 °C

Environmental conditions

Harmful gasses - SO2: 10 ppm (relative humidity < 75%, no condensation); Harmful gasses - H2S: 1 ppm (relative humidity < 75%, no condensation)

Relative humidity

5 - 95 % (indoor, Level RH-2, non-condensing for storage at 45°C)

Connection type

Push-In spring-cage terminals, Connection design in TOP direction

Protocol

Other bus systems

Equipment heat dissipation, current-dependent Pvid

1.5 W

Static heat dissipation, non-current-dependent Pvs

1.5 W

Rated insulation voltage (Ui)

500 V

Rated operational voltage

24 V DC (supply terminal)

Supply voltage at DC - max

30 VDC

Supply voltage at DC - min

18 VDC

Air discharge

According to EN 61100-4-2

Burst impulse

According to IEC/EN 61000-4-4

Contact discharge

According to EN 61100-4-2

Electromagnetic fields

According to IEC EN 61100-4-2

Emitted interference

30 - 230 MHz (radiated, high frequency, according to EN 55016-2-3); 230 - 1000 MHz (radiated, high frequency, according to EN 55016-2-3)

Radiated RFI

IEC/EN 61100-4-6

Surge rating

According to IEC/EN 61000-4-5 Level 4

Voltage dips

According to EN 61131-2 (Voltage fluctuations/voltage dips)

Electric connection type

Plug-in connection

Features

Fieldbus connection over separate bus coupler possible

Functions

Positive switching

Current consumption

15 mA, from module bus, Analog input modules; 1.5 mA, from supply terminal

Degree of protection

IP20

Mounting method

Rail mounting possible

Product category

XNE Slice module

Type

I/O module

Voltage type

DC

Number of channels

8

Input current

-1 - 1.5 mA (Digital inputs, low level); 2 - 5 mA (Digital inputs, high level)

Input current at signal 1

2 mA

Input delay

100 µs (rising edge); 200 µs (falling edge)

Input voltage

-5 - 5 V (Digital inputs, low level); 11 - 30 V (Digital inputs, high level); 24 V DC (Digital inputs)

Number of inputs (digital)

8

Number of outputs (digital)

0

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Through optocoupler: yes

Gauge pin

A1 (according to IEC/EN 60947-1)

Stripping length (main cable)

8 mm

Terminal capacity

0.25 - 1.5 mm², solid, H07V-U; 0.25 - 1.5 mm², with ferrules without plastic collar according to DIN 46228-1 (ferrules crimped gas-tight); 0.25 - 1.5 mm², flexible without ferrule, H07V-K; 0.25 - 0.75 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

18–30 V

Number of digital inputs

8

Digital inputs configurable

No

Digital outputs configurable

No

Permitted voltage at input

0–30 V

Type of voltage (input voltage)

DC

Type of digital output

None

Type of output voltage

DC

Short-circuit protection, outputs available

No

Number of HW-interfaces other

1

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Type of electric connection

Plug-in connection

Time delay at signal change

0–0.3 ms

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

No

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Country of origin

Germany

HS Code

8538.90

• EAN 7640130120556
• SAP 1000221856
• Code 8112639
