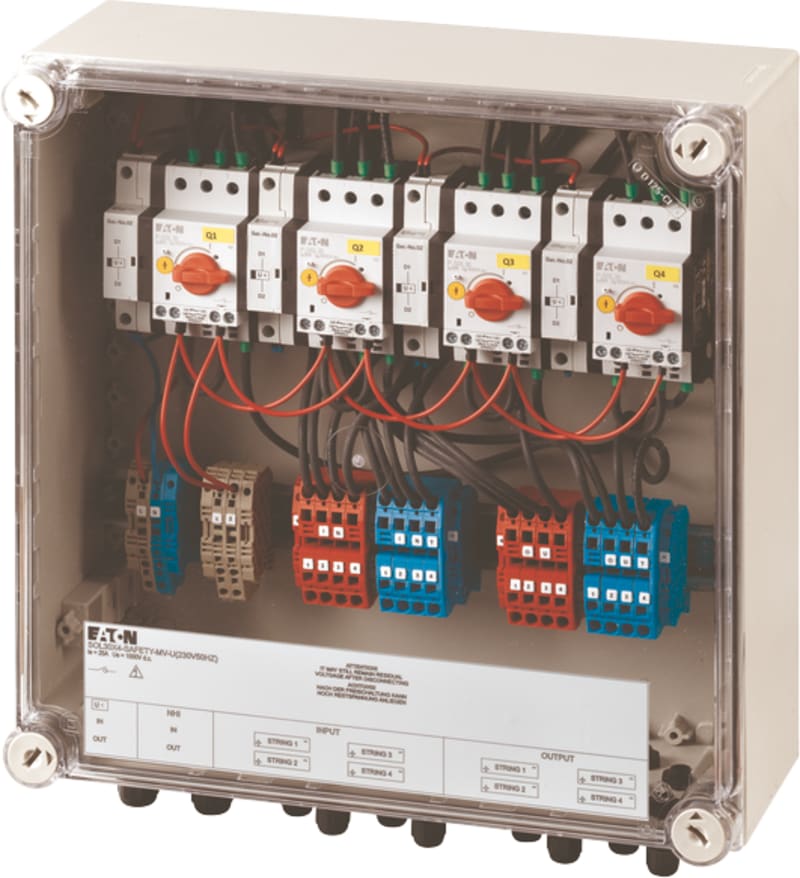

Eaton SOL30X4-SAFETY-MC4-U(230V50HZ)

Eaton SOL30X4-SAFETY-MC4-U(230V50HZ) SOL30X4-SAFETY-MC4-U(230V50HZ).

Manufacturer part number (MPN)

SOL30X4-SAFETY-MC4-U(230V50HZ)

EAN / GTIN

4015081646791

Sales unit

pcs

Eaton catalogue number

168102

Depth

150 mm

Height

410 mm

Width

375 mm

Weight

6.8 kg

Certifications

IEC/EN 60 947-3

Catalog Notes

MC4 connector (Stäubli)

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

1

Number of auxiliary contacts (normally open contacts)

1

Rated operational current (Ie)

30 A at AC-21A; 30 A at DC-PV1; 10 A at DC-PV2

Rated operational voltage (Ue) at AC - max

1000 V

Rated uninterrupted current (Iu)

30 A

Resistance

7 mΩ (internal)

Actuator type

Turn button

Enclosure material

Plastic

Features

Complete device in housing

Fitted with

0 (off) position; Retraction in 0-position

Number of poles

Two-pole

Application

Residential buildings Utility buildings

Connection type

MC4, Outputs; MC4, Inputs

Degree of protection

IP65

Degree of protection (front side)

IP65; NEMA Other

Lifespan, electrical

1,500 Operations

Lifespan, mechanical

100,000 Operations

Model

On/Off switch

Operating frequency

120 Operations/h

Overvoltage category

III

Pollution degree

3

Product Category

Fireman's Switch Switchgear for photovoltaic systems

Rated impulse withstand voltage (Uimp)

8000 V

Suitable for

Ground mounting

Utilization category

DC-21 A; DC-PV1 (EN 60947-3); DC-PV2 (EN 60947-3)

Rated short-circuit making capacity (Icm)

0.32 kA (up to 440 V, 50/60 Hz)

Rated short-time withstand current (Icw)

0.36 kA

Number of auxiliary contacts as normally open contact

1

Number of auxiliary contacts as normally closed contact

1

Rated permanent current Iu

30 A

With zero (off) position

Yes

Housing material

Plastic

With retraction in 0-position

Yes

Degree of protection (IP), front side

IP65

Type of electrical connection of main circuit

Screw connection

Type of control element

Turn button

Suitable for floor mounting

Yes

Suitable for front mounting

No

Suitable for distribution board installation

No

Suitable for intermediate mounting

No

Complete device in housing

Yes

Country of origin

Germany

HS Code

8536.20
