Eaton

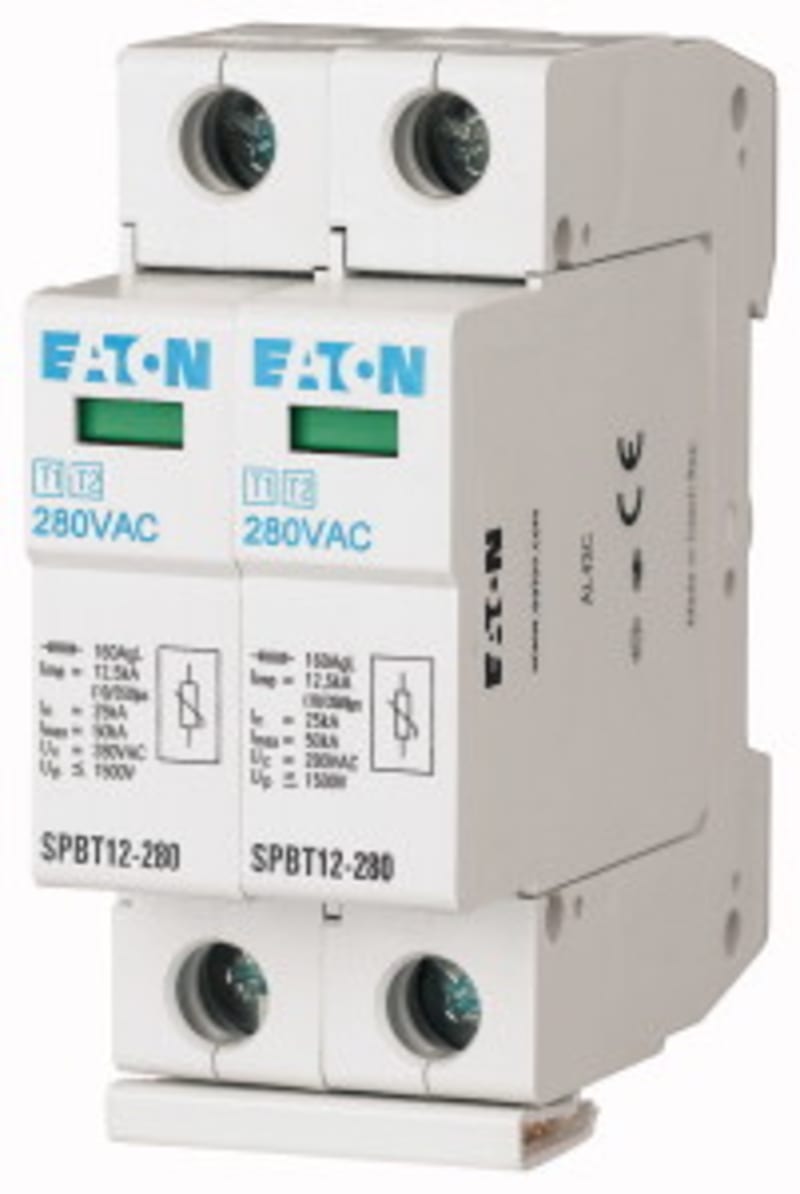

Surge Protection Device Class B/C (Type 1+2), 2-Pole
Part number158309EAN / GTIN4015081548873HS code8536.50
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 158309 Surge protection device, class B/C (Type 1 + Type 2 combined coarse and intermediate protection), 2-pole.
Technical Specifications
- Manufacturer part number (MPN)
- 158309
- EAN / GTIN
- 4015081548873
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Eaton catalogue number
- 158309
- Depth
- 86 mm
- Height
- 69 mm
- Width
- 35 mm
- Weight
- 0.285 kg
- Compliances
- RoHS conform
- System configuration type
- TN; Other; TN-S; TT
- Test class
- Type 1 + 2
- Application
- Open areas Residential buildings Utility buildings
- Number of poles
- Two-pole
- Type
- Surge arrester
- Continuous voltage at AC - max
- 280 V
- Lightning impulse current (10/350 µs)
- 12.5 kA
- Nominal voltage at AC
- 280 V
- Signalling at the device
- Optic
- Specific energy (W/R)
- 39.1 kJ/Ohm
- Voltage protection level
- 1.5 KV
- Voltage protection level (L-PE)
- 1.5 KV
- Conductor cross section (flexible, fine-strand) - max
- 35 mm²
- Conductor cross section (solid, solid-strand) - max
- 25 mm²
- Degree of protection
- IP20
- Frame
- 2 modular spacing
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 2 modular spacing
- Exhausting
- No
- Remote signalling
- No
- Max. continuous voltage AC
- 280 V
- Nominal voltage AC
- 280 V
- Integrated backup fuse
- No
- Max. conductor cross section solid (solid, stranded)
- 25 mm²
- Max. conductor cross section flexible (fine-strand)
- 35 mm²
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- Yes
- System configuration TN-C
- No
- System configuration TT
- Yes
- System configuration other
- Yes
- Voltage protection level L-PE
- 1.5 kV
- Max. overcurrent protection device, series connection (fuse)
- 160 A
- Voltage switching spark gap technology
- No
- Overcurrent protected voltage tapping
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015081548873
- SAP 1000336141
- Code 8907167
Product Documentation
Document preview: OVERSPN. PROTECTION KL. B/C 2P (158309) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Selector Switch, 1P, 12A (T0-1-15431/EZ)
Eaton
Safety Switch (T5-3-8342/V/SVB)
Eaton

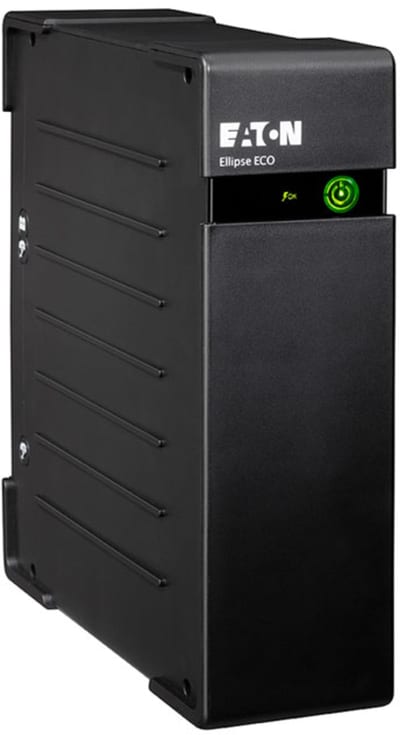

Eaton Ellipse ECO 1600 USB DIN
EL1600USBDIN
Eaton

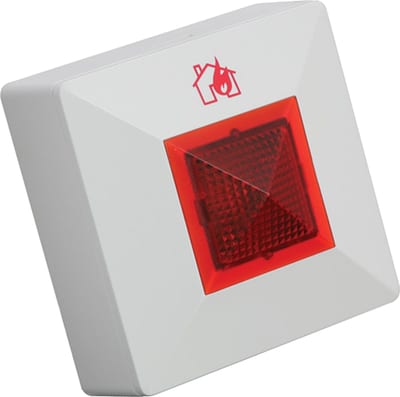

Alarmindikator with summer
600112FUL-0000
Eaton

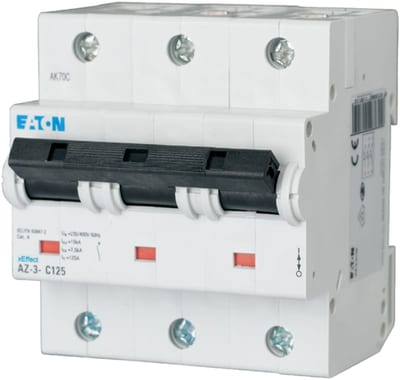

Eaton AZ-3-C50 Miniature Circuit Breaker — 3P, Type C, 50 A, up to 25 kA
Eaton

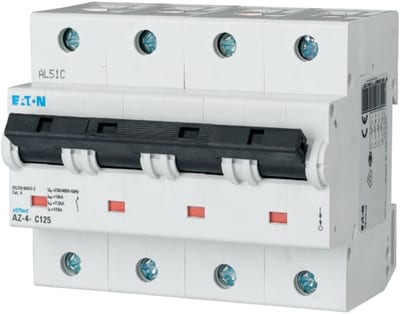

Eaton AZ-4-C63 Miniature Circuit Breaker — 4P, Type C, 63 A, up to 25 kA
Eaton

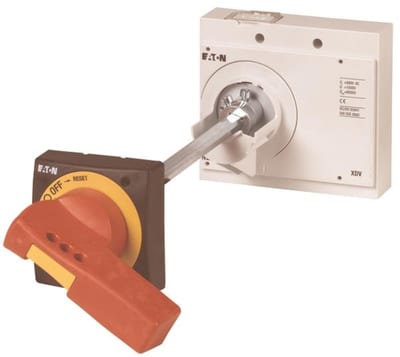

Eaton NZM3-XTVDVR-NA
Eaton

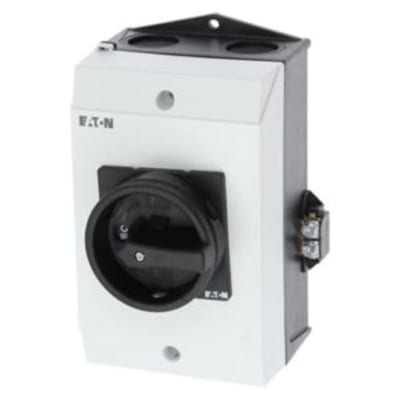

Maintenancebr.,PV-25A-4P-AC-I2/SVB-SW/N
