Eaton
Maintenancebr.,PV-25A-4P-AC-I2/SVB-SW/N
Part numberPV-25A-4P-AC-I2/SVB-SW/NEAN / GTIN5027590552165HS code8536.50
Switchgear & Protection
Safety Switches
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

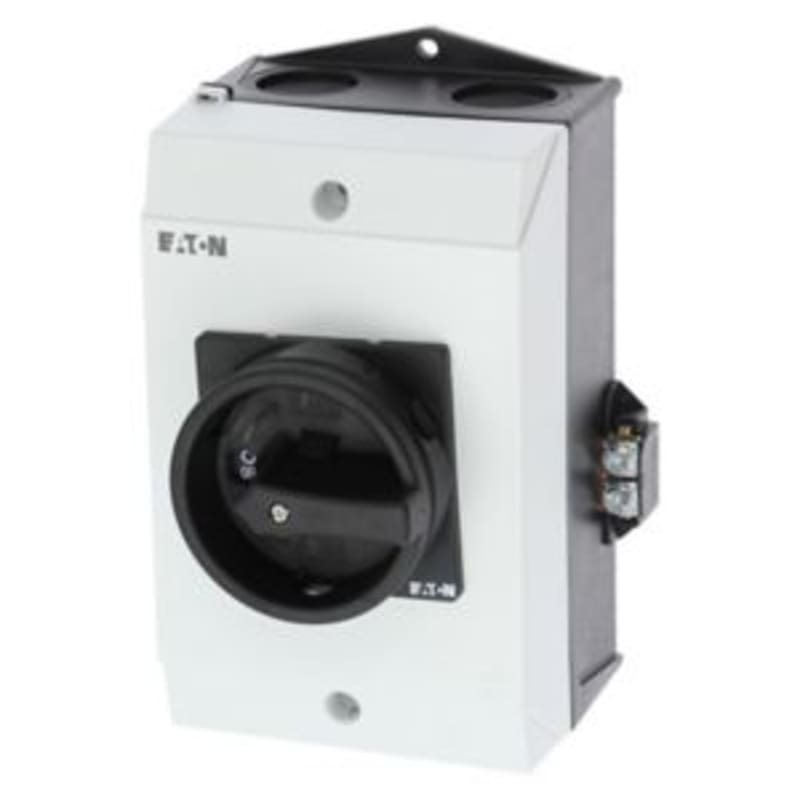

Eaton PV-25A-4P-AC-I2/SVB-SW/N Maintenancesbryter, P1, 25 A, surface mounting, 3-pole + N, Stop-function, lockable in 0 position.
Technical Specifications
- Manufacturer part number (MPN)
- PV-25A-4P-AC-I2/SVB-SW/N
- EAN / GTIN
- 5027590552165
- Sales unit
- pcs
- Eaton catalogue number
- 199536
- Depth
- 113.4 mm
- Height
- 180.3 mm
- Width
- 111.4 mm
- Weight
- 274 g
- Compliances
- CE
- Actuator color
- Black
- Actuator type
- Door coupling rotary drive
- Number of auxiliary contacts (change-over contacts)
- 0
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 0
- Rated operational power at AC-23A, 400 V, 50 Hz
- 13 kW
- Rated operational power at AC-3, 380/400 V, 50 Hz
- 7.5 kW
- Rated uninterrupted current (Iu)
- 25 A
- Features
- Version as main switch; Version as maintenance-/service switch
- Functions
- Interlockable
- Number of poles
- Four-pole
- Degree of protection
- NEMA Other
- Degree of protection (front side)
- IP20
- Suitable for
- Ground mounting
- Rated conditional short-circuit current (Iq)
- 80 kA
- Rated short-time withstand current (Icw)
- 0.64 kA
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 5027590552165
- SAP 1200495489
- Code 82623649
Product Documentation
Document preview: Maintenancebr.,PV-25A-4P-AC-I2/SVB-SW/N — Specification Data Sheet (OEM)
