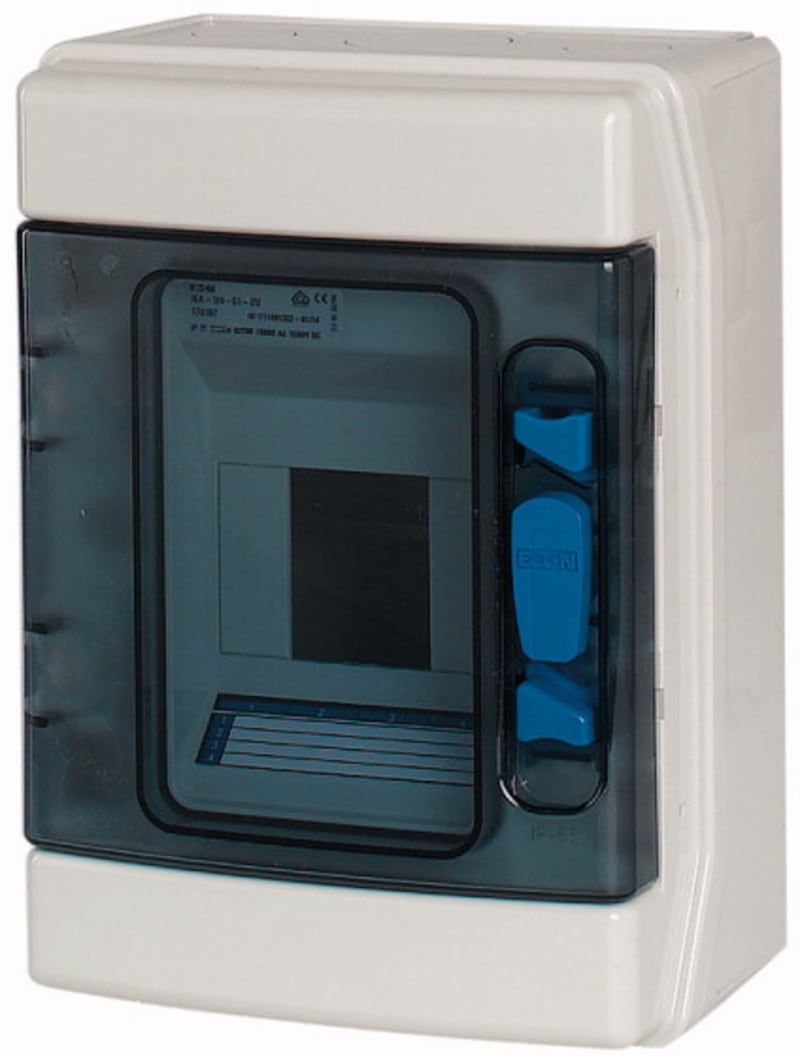

Enclosure IP65 1-Row 4 Modules (IKA-1/4-OT)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Enclosure IP65 1-Row 4 Modules (IKA-1/4-OT) is listed under Enclosures / Distribution Boards. Sales unit: pcs; Eaton catalogue number: 174203; Depth: 110 mm; Height: 231 mm; Width: 166 mm; Weight: 0.66 kg.
Technical Specifications
- Manufacturer part number (MPN)
- IKA-1/4-OT
- EAN / GTIN
- 4015081706655
- Sales unit
- pcs
- Eaton catalogue number
- 174203
- Depth
- 110 mm
- Height
- 231 mm
- Width
- 166 mm
- Weight
- 0.66 kg
- Compliances
- RoHS conform
- Certifications
- IEC/EN 60670-24; EN 62208
- Fitted with
- Sealing caps; Current circuit designation; Locking screws can be sealed; Device support rails; Basic device
- Functions
- Basic device; Extension possible; Sealable
- Protection class
- II (totally insulated)
- RAL-number
- 7035
- Special features
- IP65 Protection Class II Plastic enclosure gray (RAL 7035)
- Used with
- IKA standard distribution board; Installation distribution board; Basic device
- Application
- Indoor (installation site)
- Color
- Gray; Light gray (RAL 7035)
- Type
- Basic device IKA standard distribution board Installation distribution board
- Ambient operating temperature details
- -25 °C - 40 °C
- Frequency rating of contacts
- 50 Hz
- Voltage rating at AC
- 415 V AC
- Built-in depth
- 70 mm
- Cable entry postion
- Metric cable entries on top and bottom, back plate
- Closure type
- Other
- Cover/door color
- Transparent
- Cover/door model
- With notch
- Cover/door type
- Door; Single
- Degree of protection
- IK08 (impact resistance); IP65
- Enclosure material
- Plastic
- Internal depth
- 60 mm
- Material
- ABS (plastic)
- Module rack type
- Single-rail
- Mounting method
- Surface mounting; DIN-rail; Surface mounted (plaster)
- Number of module space units per row
- 4
- Number of rows
- 1
- Protective shrouding material
- Plastic
- Terminal type
- Without terminals
- Width in number of modular spacings
- 4
- Colour
- Grey
- UV resistant
- No
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 60 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Plastic
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- Yes
- With lock
- No
- Cover model
- With notch
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081706655
- SAP 1000659233
- Code 8485936
