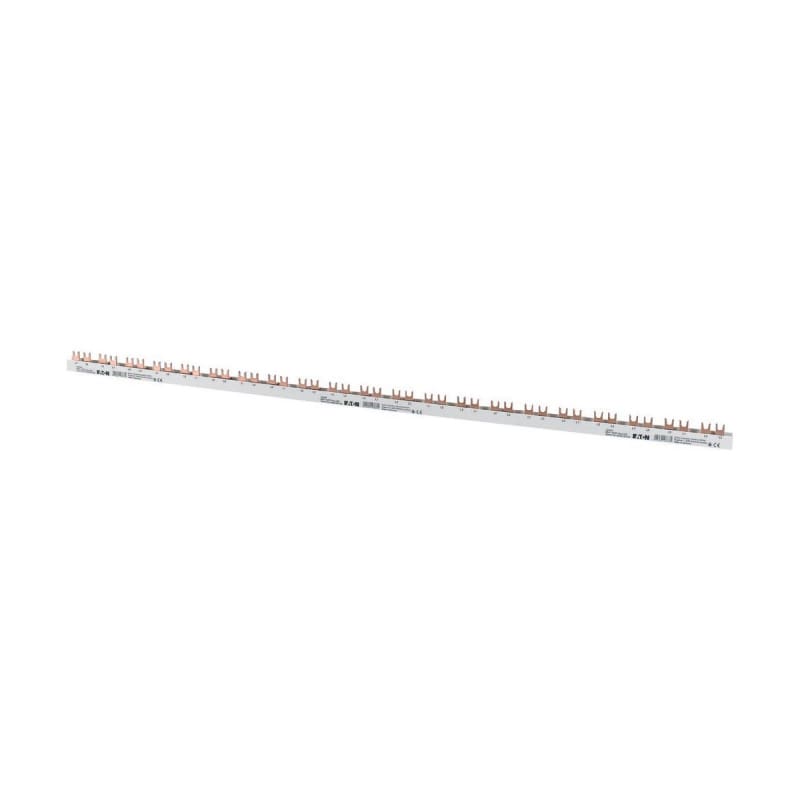

Busbar. IT 3-PHASE, 2POL+hj, 100
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Busbar. IT 3-PHASE, 2POL+hj, 100 (part number BB-F-16/3P-3XLL+AS) is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 120803; Depth: 940 mm; Height: 30.5 mm; Width: 15.8 mm.
Technical Specifications
- Manufacturer part number (MPN)
- BB-F-16/3P-3XLL+AS
- EAN / GTIN
- 4015081186334
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 120803
- Depth
- 940 mm
- Height
- 30.5 mm
- Width
- 15.8 mm
- Weight
- 0.588 kg
- Compliances
- RoHS conform
- Features
- Can be cut to size
- Electric connection type
- Fork
- Rated surge voltage
- 4 KV
- Rated uninterrupted current (Iu)
- 80 A
- Suitable for number of devices
- 36
- Number of poles
- Three-pole
- Color
- Other
- Cross section
- 16 mm²
- Number of modular spacings
- 0
- Number of phases
- 3
- Pitch dimensions
- 17.8 mm
- Rated operational voltage (Ue) - max
- 415 V
- Rated conditional short-circuit current (Iq)
- 25 kA
- Colour
- Grey
- Insulated
- No
- Rated permanent current Iu
- 80 A
- Length
- 940 mm
- Conditioned rated short-circuit current Iq
- 25 kA
- Type of electric connection
- Fork
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- No
- Max. rated operation voltage Ue
- 415 V
- Module width
- 17.8 mm
- Can be cut to size
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081186334
- SAP 1200563134
- Code 82903715
