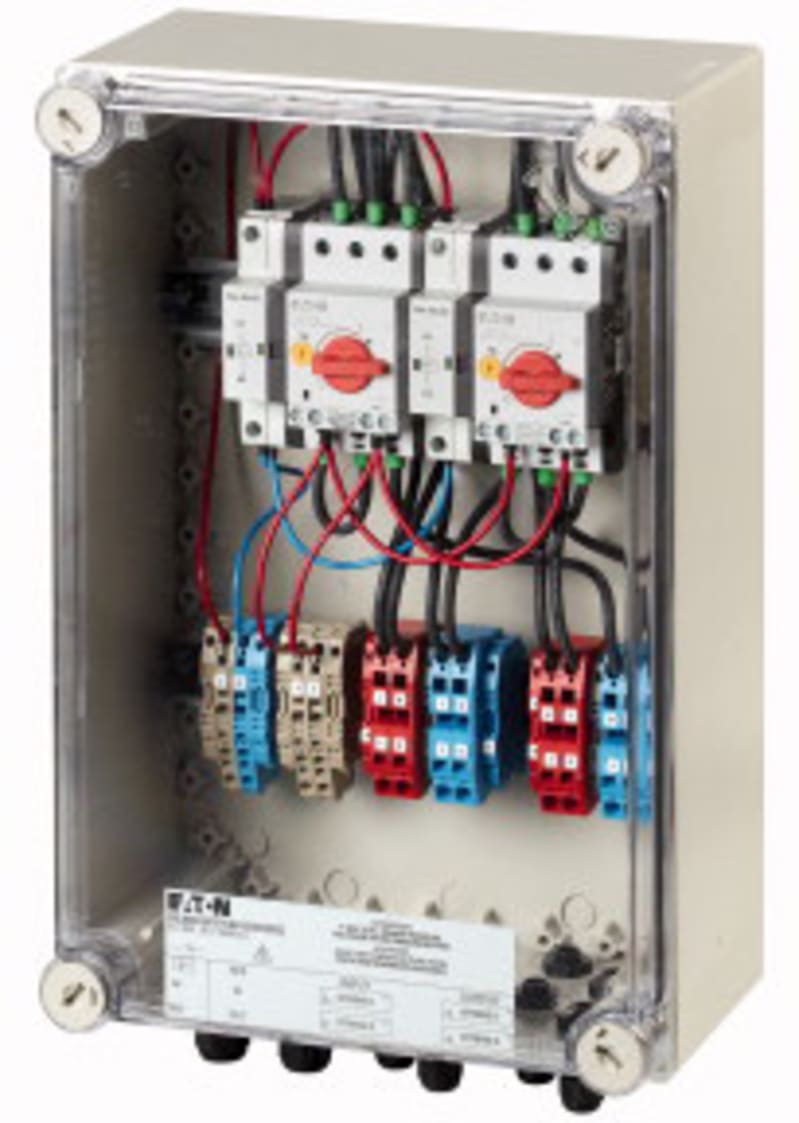

Eaton SOL30X2-SAFETY-MV-U(230V50HZ)
Part numberSOL30X2-SAFETY-MV-U(230V50HZ)EAN / GTIN4015081646760HS code8536.20
Switchgear & Protection
Disconnect Switches
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton SOL30X2-SAFETY-MV-U(230V50HZ) SOL30X2-SAFETY-MV-U(230V50HZ).
Technical Specifications
- Manufacturer part number (MPN)
- SOL30X2-SAFETY-MV-U(230V50HZ)
- EAN / GTIN
- 4015081646760
- Sales unit
- pcs
- Eaton catalogue number
- 168099
- Depth
- 150 mm
- Height
- 405 mm
- Width
- 250 mm
- Weight
- 5.1 kg
- Certifications
- IEC/EN 60 947-3
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Number of auxiliary contacts (change-over contacts)
- 0
- Number of auxiliary contacts (normally closed contacts)
- 1
- Number of auxiliary contacts (normally open contacts)
- 1
- Rated operational current (Ie)
- 26 A at DC-PV1; 10 A at DC-PV2
- Rated operational voltage (Ue) at AC - max
- 1000 V
- Rated uninterrupted current (Iu)
- 30 A
- Resistance
- 7 mΩ (internal)
- Actuator type
- Turn button
- Enclosure material
- Plastic
- Features
- Complete device in housing
- Fitted with
- Retraction in 0-position; 0 (off) position
- Number of poles
- Two-pole
- Application
- Residential buildings Utility buildings
- Connection type
- M12, Inputs; M12, Outputs
- Degree of protection
- IP65
- Degree of protection (front side)
- IP65; NEMA Other
- Lifespan, electrical
- 1,500 Operations
- Lifespan, mechanical
- 100,000 Operations
- Model
- On/Off switch
- Operating frequency
- 120 Operations/h
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- Fireman's Switch Switchgear for photovoltaic systems
- Rated impulse withstand voltage (Uimp)
- 8000 V
- Suitable for
- Ground mounting
- Utilization category
- DC-21 A; DC-PV1 (EN 60947-3); DC-PV2 (EN 60947-3)
- Rated short-circuit making capacity (Icm)
- 0.32 kA (up to 440 V, 50/60 Hz)
- Rated short-time withstand current (Icw)
- 0.36 kA
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated permanent current Iu
- 30 A
- With zero (off) position
- Yes
- Housing material
- Plastic
- With retraction in 0-position
- Yes
- Degree of protection (IP), front side
- IP65
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Turn button
- Suitable for floor mounting
- Yes
- Suitable for front mounting
- No
- Suitable for distribution board installation
- No
- Suitable for intermediate mounting
- No
- Complete device in housing
- Yes
- Country of origin
- Germany
