Eaton

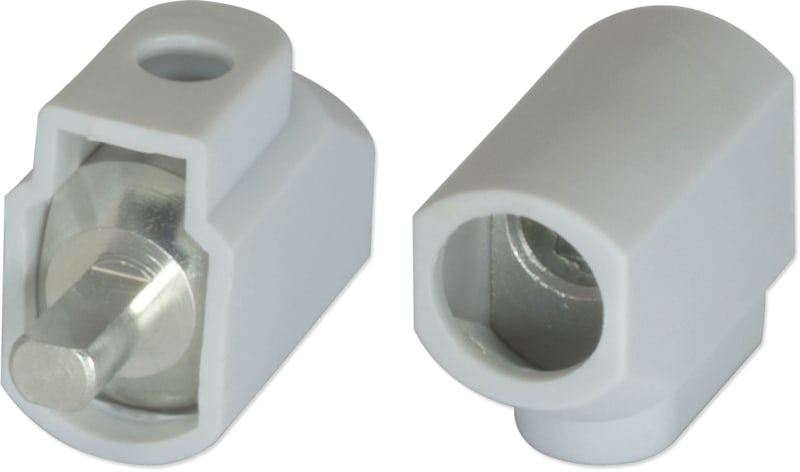

Tunnel terminal grey Cu/Al
Part number195361EAN / GTIN9010238092341HS code8538.10
Electrical Components
Circuit Breaker Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 195361 BPZ-XKA-1/50-ALU.
Technical Specifications
- Manufacturer part number (MPN)
- 195361
- EAN / GTIN
- 9010238092341
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Eaton catalogue number
- 195361
- Depth
- 42.5 mm
- Height
- 17.5 mm
- Width
- 27.5 mm
- Weight
- 15 g
- Compliances
- RoHS conform
- Features
- Contact safe
- Functions
- Additional equipment
- Suitable for
- Fine strand conductors; Solid conductors; Stranded conductors
- Nominal current
- 80 A
- Number of poles
- Single-pole
- Type
- Additional equipment
- Conductor cross section, input - max
- 50 mm²
- Conductor cross section, input - min
- 16 mm²
- Conductor cross section, output - max
- 16 mm²
- Conductor cross section, output - min
- 16 mm²
- Mounting method
- Screw
- Number of connections (Less Than 6 mm squared)
- 0
- Number of connections (Less Than AWG 6)
- 0
- Number of connections (Greater Than 25 mm squared)
- 1
- Number of connections (Greater Than 250 kcmil)
- 0
- Number of connections (10 mm squared)
- 0
- Number of connections (16 mm squared)
- 0
- Number of connections (25 mm squared)
- 0
- Number of connections (250 kcmil)
- 0
- Number of connections (AWG 2)
- 0
- Number of connections (AWG 4)
- 0
- Number of connections (AWG 4/0)
- 0
- Number of connections (AWG 6)
- 0
- Number of connections (total)
- 1
- Number of inputs
- 1
- Number of outputs
- 1
- Connection type
- Screwing
- Rated voltage
- 690 V
- Installed at the factory
- No
- Rated switch current
- 80 A
- Device fitting
- Universal
- Voltage type for actuating
- AC/DC
- With auto test for earth leakage function
- No
- Suitable for max. number of poles main contact unit (total)
- 4
- Suitable for max. current main contact unit
- 80 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 9010238092341
- SAP 1200159677
- Code 82081861
Product Documentation
Document preview: Tunnel terminal grey Cu/Al (195361) — Specification Data Sheet (OEM)
