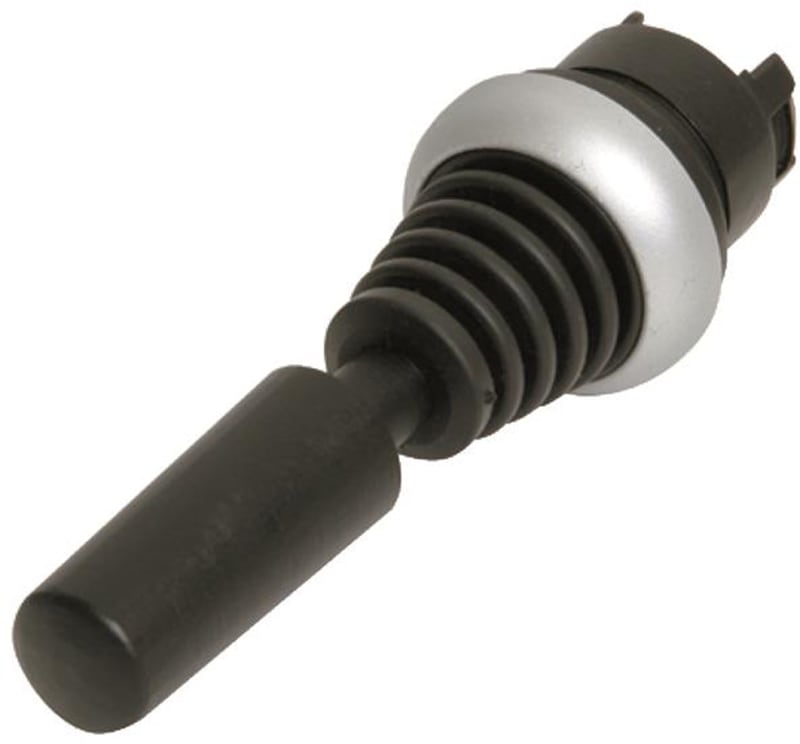

Joystick, RMQ (M22-WJ2H)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Joystick, RMQ (M22-WJ2H) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 289195; Depth: 100 mm; Height: 30 mm; Width: 30 mm; Weight: 0.028 kg.
Technical Specifications
- Manufacturer part number (MPN)
- M22-WJ2H
- EAN / GTIN
- 4015082891954
- Sales unit
- pcs
- Eaton catalogue number
- 289195
- Depth
- 100 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.028 kg
- Compliances
- CE Marked
- Certifications
- EN 60947-5; CSA Std. C22.2 No. 14-05; UL 508; IEC 60947-5; CSA Std. C22.2 No. 94-91; VDE; CE; IEC/EN 60947; VDE 0660; UL; CSA File No.: 012528; UL Category Control No.: NKCR; CSA-C22.2 No. 14-05; IEC/EN 60947-5; UL File No.: E29184; CSA-C22.2 No. 94-91; CSA; CSA Class No.: 3211-03
- Actuating force
- 5 N
- Actuator function
- Horizontal; Momentary
- Bezel color
- Titanium
- Bezel material
- Plastic
- Fitted with
- Plastic shaft; Retraction in 0-position; Filament bulb (24 V); Front ring
- Number of actuation directions
- 2
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- Yes; With SWD-RMQ connections
- Accessories
- Plastic shaft
- Degree of protection
- IP66; NEMA 4X, 13
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 2000 Operations/h
- Product Category
- RMQ-Titan
- Type
- Joystick
- Number of switch positions
- 1
- Centre mounting, hole diameter
- 22.5 mm
- With retraction in 0-position
- Yes
- Colour front ring
- Chrome
- Analogue output signal configurable
- No
- Coder
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Locking in 0-position
- No
- Joy stick length
- 75 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8471.60
Cross References
- EAN 4015082891954
- SAP 1000650375
- Code 8631656
Product Documentation
More from Eaton
Eaton
Residential Distribution Board TN 40A 14 Circuits (1728144)
Eaton
Overload relay ZBT95-50
Eaton
Eaton FAZ-C6/1N Miniature Circuit Breaker — 1P+N, Type C, 6 A, 15 kA
Eaton
Installation Relay 20A 230V AC/DC 2NO
135181
Eaton
Rotary handle Lockablet Black (NZM2-XDV)
Eaton
LOAD-Break Switch 3P 1000A with Trigger
N4-1000
Eaton

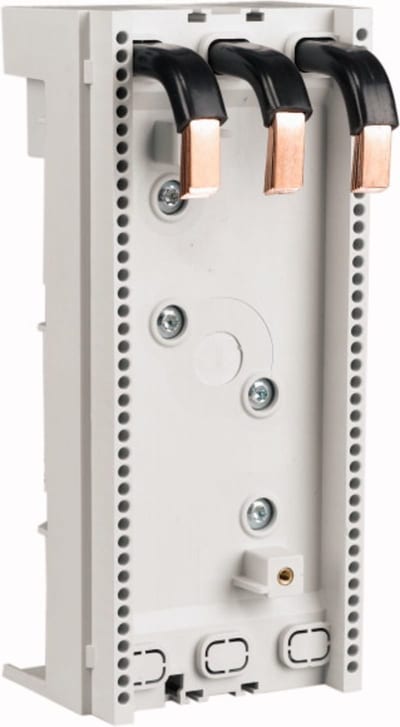

Eaton NZM1-XAD160
