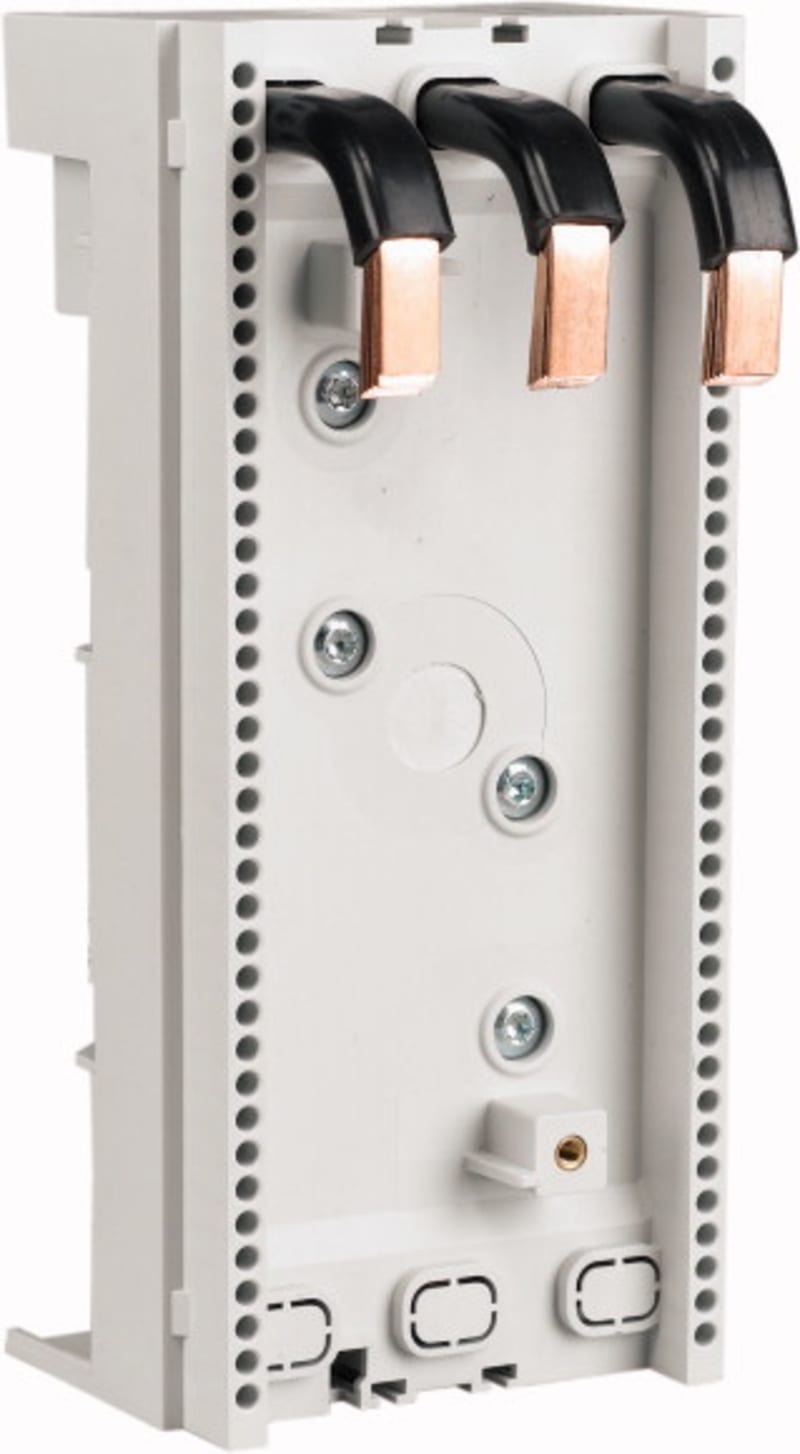

Eaton NZM1-XAD160
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton NZM1-XAD160 is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Eaton catalogue number: 104554; Depth: 200 mm; Height: 38 mm; Width: 90 mm; Weight: 0.81 kg.
Technical Specifications
- Manufacturer part number (MPN)
- NZM1-XAD160
- EAN / GTIN
- 4015081043729
- Sales unit
- pcs
- Eaton catalogue number
- 104554
- Depth
- 200 mm
- Height
- 38 mm
- Width
- 90 mm
- Weight
- 0.81 kg
- Compliances
- UL CSA09 (refer to approbation report); CSA-C22.2 No. 14; UL508A; CE marking; RoHS conform
- Certifications
- UL (Category Control Number DIHS, DIHS7); North America (UL listed, CSA certified); CSA (Class No. 3211-37); CSA (File No. 236217); UL (File No. E140305)
- Features
- Self-extinguishing acc. UL 94
- Functions
- Current limiting circuit breaker, refer to approbation report; Component adapter for circuit breakers and switch-disconnector; Busbar adapters for NZM
- Suitable for
- Surface mounting on flat copper busbars 12 – 30 x 5 – 10, double T and triple T profile
- Used with
- N(S)1; PN1; NZM1; Feeder circuits; 60 mm system; Busbar adapters for NZM; Compact system
- Nominal current
- 160 A
- Number of poles
- Three-pole
- Type
- 60 mm system Busbar adapters for NZM Compact system
- Equipment heat dissipation, current-dependent Pvid
- 11.3 W
- Temperature resistance
- Up to 120 °C
- Creepage resistance
- CTI 200
- Electric connection type
- Other
- Rated operation current (Ie)
- 160 A
- Voltage rating (UL CSA 13)
- Max. 600 V AC
- Voltage rating at AC
- 690 V AC
- Adapter width
- 92 mm
- Busbar adapter width
- 92 mm
- Busbar distance
- 60 mm
- Busbar thickness - max
- 10 mm
- Busbar thickness - min
- 5 mm
- Degree of protection
- Feeder circuits
- Mounting rail armament
- None
- Rail width
- 30 mm
- Rated current In
- 160 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 92 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081043729
- SAP 1000024846
- Code 8499159
