Eaton

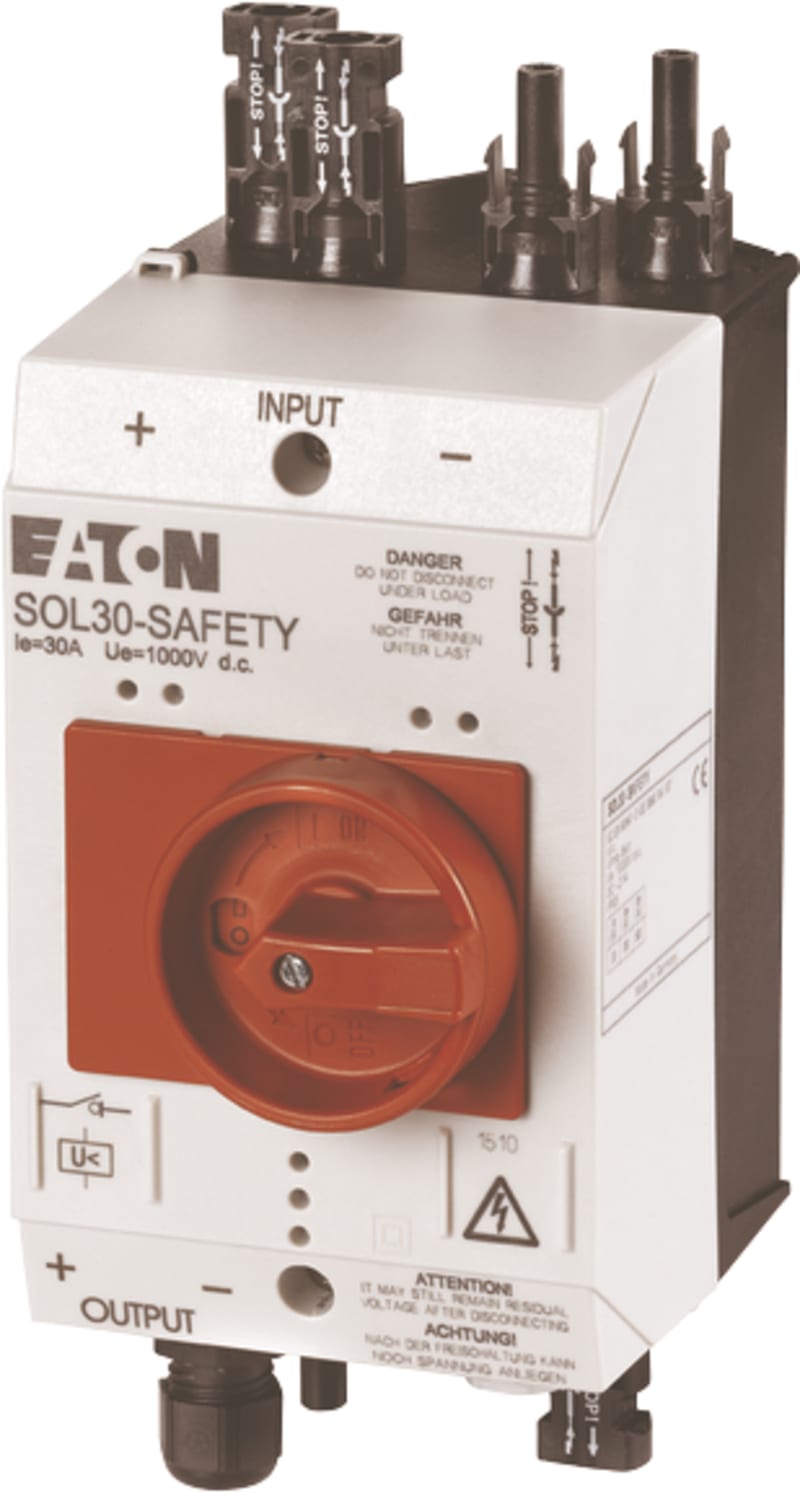

SOL30-Safety/2MC4-U(230V50HZ) (144122)
Part number144122EAN / GTIN4015081406326HS code8536.20
Switchgear & Protection
Safety Switches
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 144122 SOL30-SAFETY/2MC4-U(230V50HZ).
Technical Specifications
- Manufacturer part number (MPN)
- 144122
- EAN / GTIN
- 4015081406326
- Sales unit
- pcs
- Eaton catalogue number
- 144122
- Depth
- 234 mm
- Height
- 130 mm
- Width
- 100 mm
- Weight
- 1.084 kg
- Certifications
- IEC/EN 60 947-3
- Catalog Notes
- MC4 connector (Stäubli)
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Number of auxiliary contacts (change-over contacts)
- 1
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 0
- Rated operational current (Ie) at DC-21A
- 30 A
- Rated uninterrupted current (Iu)
- 32 A
- Resistance
- 7 mΩ (internal)
- Actuator color
- Black
- Actuator type
- Toggle
- Features
- Version as maintenance-/service switch
- Fitted with
- Voltage release optional
- Locking facility
- Lockable in the 0 (Off) position (with padlock)
- Number of poles
- Two-pole
- Application
- Residential buildings Utility buildings
- Connection type
- MC4, Inputs; MC4, Outputs
- Degree of protection
- NEMA Other
- Degree of protection (front side)
- IP65
- Lifespan, electrical
- 1,500 Operations
- Lifespan, mechanical
- 100,000 Operations
- Operating frequency
- 120 Operations/h
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- Fireman's Switch Switchgear for photovoltaic systems
- Rated impulse withstand voltage (Uimp)
- 8000 V
- Suitable for
- Ground mounting; Floor mounting
- Utilization category
- DC-21 A; DC-PV (EN 60947-3)
- Rated short-circuit making capacity (Icm)
- 0.3 kA (up to 440 V, 50/60 Hz)
- Rated short-time withstand current (Icw)
- 0.36 kA
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4015081406326
- SAP 1000665213
- Code 8672993
Product Documentation
Document preview: SOL30-SAFETY/2MC4-U(230V50HZ) (144122) — Specification Data Sheet (OEM)
