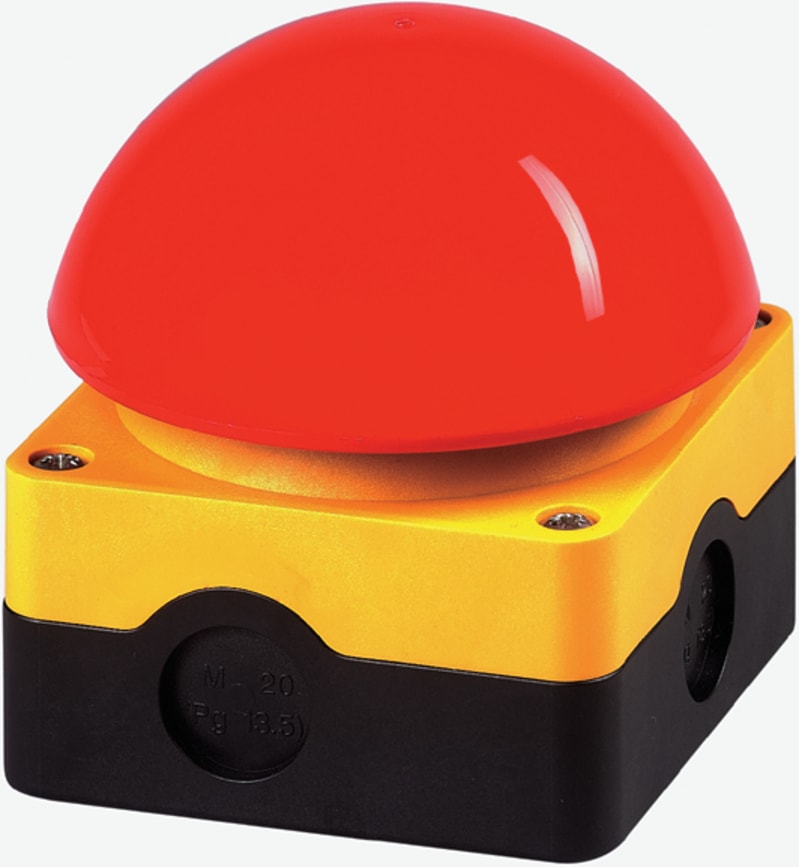

FOOT PUSH BUTTON, RED, 1NO+1NC
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton FOOT PUSH BUTTON, RED, 1NO+1NC (part number FAK-R/V/KC01/IY) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 229747; Depth: 100 mm; Height: 85 mm; Width: 85 mm; Weight: 0.308 kg.
Technical Specifications
- Manufacturer part number (MPN)
- FAK-R/V/KC01/IY
- EAN / GTIN
- 4015082297473
- Sales unit
- pcs
- Eaton catalogue number
- 229747
- Depth
- 100 mm
- Height
- 85 mm
- Width
- 85 mm
- Weight
- 0.308 kg
- Certifications
- CSA-C22.2 No. 14-05; IEC/EN 60947-5; UL; UL 508; UL File No.: E29184; VDE 0660; CSA-C22.2 No. 94-91; CE; CSA Class No.: 3211-03; CSA File No.: 012528; CSA; IEC/EN 60947-5-5; UL Category Control No.: NKCR
- Catalog Notes
- Contacts with safety function, by positive opening to IEC/EN 60947-5-1
- Actuating force
- 60 N
- Actuator color
- Red
- Actuator function
- Maintained; Switching function latching
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Number of contacts (normally closed contacts)
- 1
- Number of contacts (normally open contacts)
- 0
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Enclosure color
- Yellow; Black
- Features
- Tamper-proof (according to ISO 13850/EN 418); Emergency stop pushbutton
- Unlocking method
- Pull-release
- Connection to SmartWire-DT
- No
- Degree of protection
- NEMA 12; IP67/IP69K
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Operating frequency
- 600 Operations/h
- Product category
- Foot and palm switches
- Shock resistance
- 15 g, Mechanical, According to IEC/EN 60068-2-27, Half-Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27
- Type
- Complete device
- Colour cap
- Red
- Spring-return
- No
- Switching function latching
- Yes
- Number of contacts as normally closed contact
- 1
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082297473
- SAP 1000084449
- Code 8871634
